| Main Specifications |

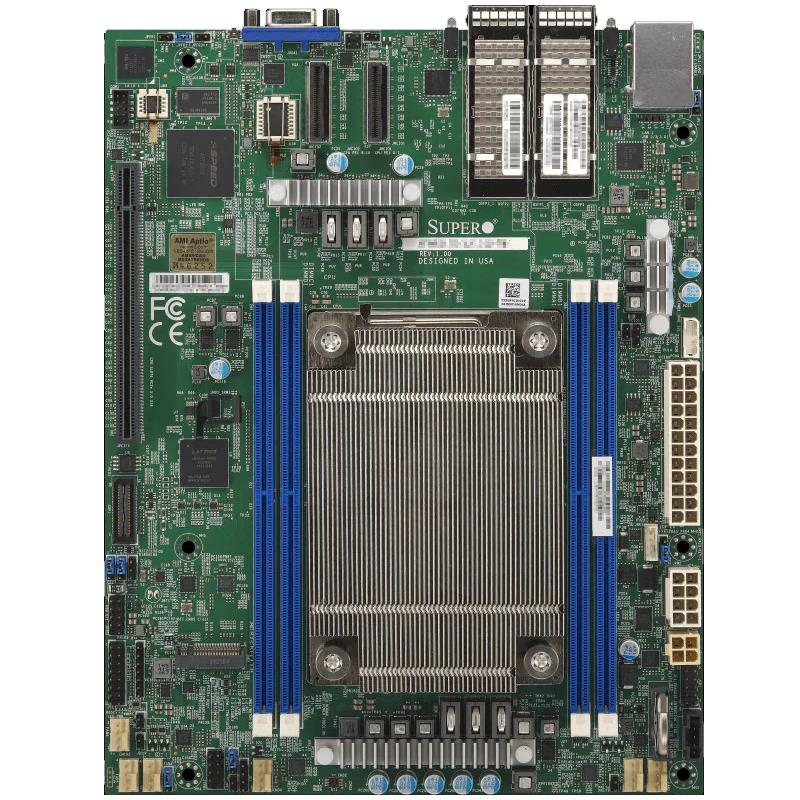

| Device Type | Motherboard |
| Form Factor | Narrow Micro-ATX |
| Dimensions (WxDxH) | 7.5" x 9.6" (19.05cm x 24.4cm) |
| Processor |
| Embedded Processor | Intel Xeon 6 SoC 6556P-B, CPU TDP 215W |
| System Memory |
| Memory Capacity | Slot Count: 4 DIMM Slots, Max Memory (1DPC): Up to 512GB 6400MT/s ECC DDR5 |
| DIMM Sizes | RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Single LAN with 1GbE with Intel I210, Dual LAN with 100G QSFP28 LAN via SoC |
| TPM | 1 TPM Header & Chip both |
| Input / Output |
| USB(s) | 2 USB 2 port(s) (Header), 2 USB 3 Type-A port(s) (Rear) |
| Video Output | 1 VGA port(s), 1 Aspeed AST2600 BMC port(s) |
| Serial Port / Headers | 1 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 slot, 2 PCIe 5.0 x8 via MCIO Connector slots |
| M.2 | 1 M.2 PCIe 4.0 x4 slot (M-key 2280) |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| BIOS Features | ACPI 6.5, UEFI 2.9, Plug and Play (PnP), PCI FW 3.3, SMBIOS 3.7 |
| Software |
| Software | Super Diagnostics Offline (SDO), IPMI (Intelligent Platform Management Interface) v2.0 with KVM support, SuperServer Automation Assistant (SAA) New |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+5V,+5V standby,Monitors CPU voltages,Supports system management utility,System level control,VBAT |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support |
| FAN | 6x 4-pin fan headers (up to 6 fans), Fan speed control |
| Other Features | ACPI power management, Control of power-on for recovery from AC power loss, UID, WOL |
| Environmental |
| Operating Environment | Operating Relative Humidity: 10% to 85% (non-condensing) |
| Non-operating Relative Humidity: 10% to 95% (non-condensing) |
| Operating Temperature: -40°C to 60°C (°F to °F ) |
| Non-operating Temperature: -40°C to 85°C (°F to °F) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Parts List |
| I/O Shield | 1x MCP-260-00204-0N |
