| Main Specifications |

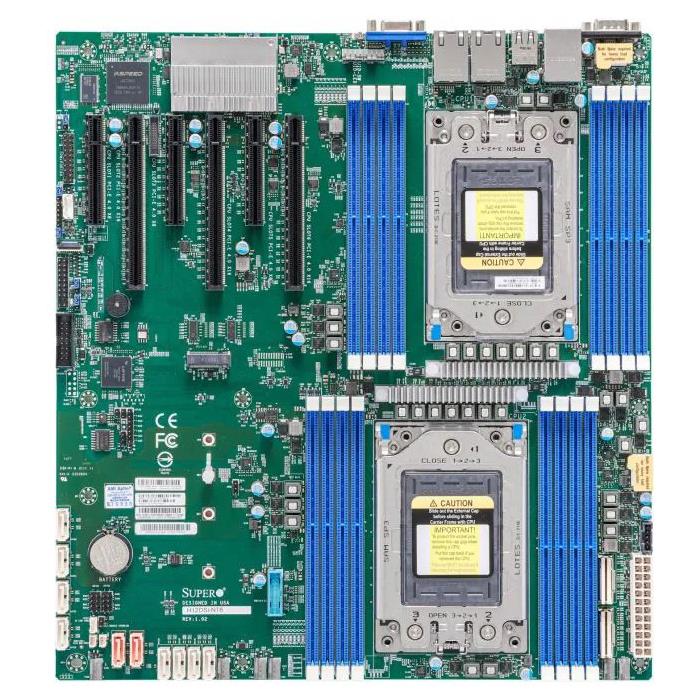

| Device Type | Motherboard |
| Form Factor | EATX |
| Dimensions (WxDxH) | 12" x 13.05" (30.5cm x 33.1cm) |
| Processor |
| Compatible Processors | Dual AMD EPYC 7003/7002 Series Processors (The latest AMD EPYC 7003 Series Processor with AMD 3D V-Cache Technology requires BIOS version 2.3 or newer) |
| Compatible Socket | Socket SP3 |
| Number of Cores | Up to 64 Cores |
| On-Board Devices |
| Chipset | System-on-Chip |
| SATA/SAS | SATA3 (6 Gbps) |
| IPMI | Support for Intelligent Platform Management Interface v. 2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, ASPEED AST2600 BMC |
| Network Controllers | Dual LAN via Broadcom BCM57416 10GBase-T Ethernet Controller |
| Graphics | ASPEED AST2600 BMC |
| System Memory |
| Memory Capacity | 16 DIMM slots, Supports up to 4TB Registered ECC DDR4 3200MHz SDRAM, 8-channel memory bus, For Dual CPUs: Recommended that memory be populated equally in adjacent memory banks |
| Memory Type | DDR4 3200 MHz Registered ECC, 288-pin gold-plated DIMMs |
| DIMM Sizes | 8GB, 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.2 V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Input / Output |
| SATA | 10 SATA3 (6 Gbps) ports |
| LAN | 2x 10GBase-T LAN ports, 1 RJ45 Dedicated IPMI LAN port |
| USB(s) | 2 USB 2.0 ports (rear), 4 USB 3.0 ports (2 rear, 2 headers) |
| Video Output | 1 VGA port |
| Others | 1 COM port (rear), 2 SATA DOM power connectors, 4 PCI-E 4.0 NVMe x4 internal ports, TPM 2.0 header |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 3 PCI-E 4.0 x16 slots, 3 PCI-E 4.0 x8 slots |
| M.2 | Form Factor: 2280, 22110 |
| Key: M-key |
| Interface: 1 PCI-E 4.0 x4 |
| Chassis Optimized for |
| 2U Chassis | SCLA25TQC-R609LP, SCLA26AC12-R920LP1 |
| 3U Chassis | SC835TQC-R1K03B |
| System BIOS |
| BIOS Type | AMI 256Mb SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP), DMI 2.3, PCI 2.2, ACPI 6.2, USB Keyboard Support, SMBIOS 3.1.1 |
| Management |
| Software | Super Doctor 5, Watch Dog, NMI, SUM, IPMI 2.0, KVM with dedicated LAN |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery |
| PC Health Monitoring |
| CPU | Monitors CPU Core Voltages, +1.5V, +1.8V, +12V, +5V, +5V standby, CPU switching voltage regulator, VBAT |
| FAN | Up to 8 fan status tachometer monitoring, Up to 8x 4-pin fan headers, Status monitor for speed control, Pulse Width Modulated (PWM) fan connectors |
| Temperature | Monitoring for CPU and chassis environment, CPU Thermal Trip Support, Thermal control for 8x Fan connectors, I²C Temperature Sensing Logic |
| LED | CPU / System Overheat LED |
| Other Features | Chassis intrusion detection, Chassis intrusion header |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Parts List |
| I/O Shield | 1x MCP-260-00042-0N |
| I/O Cables | 2x CBL-0044L |
