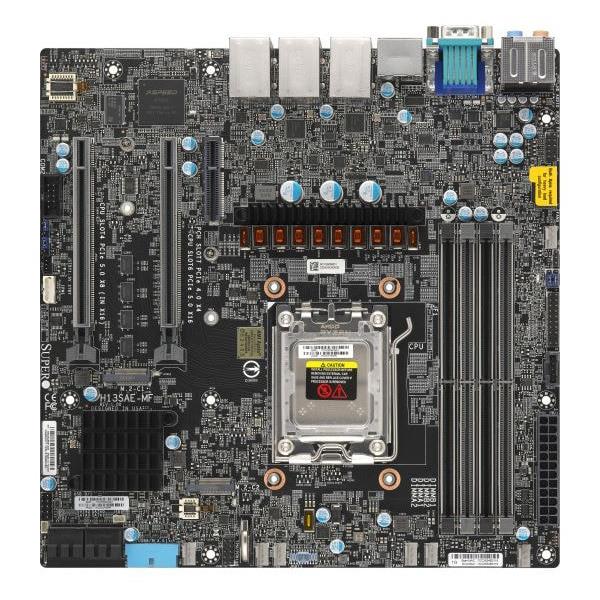

  3. Supermicro H13SAE-MF-B Motherboard Micro-ATX Single Socket LGA-1718 (AM5) AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors
Supermicro H13SAE-MF-B Motherboard Micro-ATX Single Socket LGA-1718 (AM5) AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors

Supermicro H13SAE-MF-B Motherboard Micro-ATX Single Socket LGA-1718 (AM5) AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors

  • Includes Dual 1 GbE LAN Ports, 1 Dedicated IPMI LAN Port

  • Support up to 192 GB ECC/Non-ECC DDR5 Memory 4 DIMM Slots

  • Onboard controller for 4 SATA 3 (6 Gb/s) Ports RAID 0/1/10 Support

  • Support AMD EPYC 4005 Series or AMD Ryzen 9000 Series Processors

Motherboard Micro-ATX Supports Single Socket LGA-1718 (AM5) For AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors, Up To 16C/32T, Supports Up To 170W TDP CPUs. Up To 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM In 4 DIMM Slots. On-Board: 4 SATA (6Gbps), RAID 0/1/10 Support. LAN Ports: Dual LAN With Intel I210 Gigabit Ethernet Controller, Single LAN With ASPEED AST2600 BMC, Dedicated LAN For IPMI. Others: 9 USB Ports, 1 HDMI 2 Ports, 1 Display Port Port, 2 VGA Type-C 3.2 Gen2 Ports (Rear), 1 COM Port (Header), ALC 888S HD Audio, 1 TPM 2.0 Header. Includes 1 PCIe 4.0 X4 Slot, 2 PCIe 5.0 X16 Slots. 2 M.2 PCIe 5.0 X4 Slots (M-Key 2280/22110) - (MBD-H13SAE-MF-B)

$ 451.50$ 451.50451.5USD

$ 451.50

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • AMD EPYC 4005, 4004 series or Ryzen 9000 & 8700G (system only) & 7000 series desktop processor, single socket LGA-1718 (socket AM5), up to 170W

    • Up to 192GB ECC/non-ECC unbuffered DIMM, DDR5-5600MHz, in 4 DIMM slots

    • 2 PCIe 5.0 x16 (16/NA or 8/8), support up to 2 GPU cards (mechanical is up to 1 triple-width GPU card or 2 double-width GPU cards); 1 PCIe 4.0 x4

    • Dual 1Gbit LAN ports (i210 AT); 1 dedicated Realtek 1Gbit LAN for IPMI

    • Micro-ATX form factor

    • 1 USB 3.2 Gen2x2 port (type C, 20Gb, rear); 5 USB 3.2 Gen2 ports (2 Type C, rear, support DP 1.4 Alt mode)

    • 1 HDMI 2.0 port, 1 DP 1.4a port

    • M.2 Interface: 2 PCIe 5.0 x4 (RAID 0 & 1) (2280/22110, M-Key)

    Extra Specifications for Supermicro H13SAE-MF-B Motherboard Micro-ATX Single Socket LGA-1718 (AM5) AMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorMicro-ATX
    Dimensions (WxDxH)9.6" x 9.6" (24.384cm x 24.384cm)
    Processor
    Compatible ProcessorsAMD EPYC 4004 / 4005 or AMD Ryzen 7000 / 9000 Series Processors
    Compatible SocketSingle processor
    Cache/CoreUp to 16C/32T
    System Memory
    Memory TypeSlot Count: 4 DIMM Slots, Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetB650
    SATA RAID4 SATA (6Gbps), RAID 0/1/10 support
    IPMIASPEED AST2600 BMC
    Network ControllersDual LAN with Intel i210 Gigabit Ethernet Controller, Single LAN with ASPEED AST2600 BMC, Dedicated LAN for IPMI
    AudioALC 888S HD Audio
    TPM1 TPM 2.0 header
    Input / Output
    USB(s)2 USB 3.2 Gen1 port(s) (Header), 3 USB 3.2 Gen2 Type-A port(s) (Rear), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 2 USB 3.2 Gen2 Type-C port(s) (Rear), 1 USB 2 port(s) (Header)
    Video Output1 HDMI 2 port, 1 Display Port port, 2 VGA Type-C 3.2 Gen2 port(s) (Rear)
    Serial Port / Headers1 COM port(s) (header)
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 4.0 x4 slot, 2 PCIe 5.0 x16 slots
    M.22 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    BIOS FeaturesACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support
    Software
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), Plug-ins for 3rd Party Software, IPMI Utilities, SAA (limited support)
    Management
    Power ConfigurationsPower-on mode control for AC power loss recovery, Power button override mechanism, S3/S4/S5
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+12V,+3.3V,+5V,+5V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,System temperature
    FAN7x 4-pin fan headers (up to 7 fans)
    Parts List
    I/O Shield1x MCP-260-00185-0B
    I/O Cables2x CBL-0044L

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
