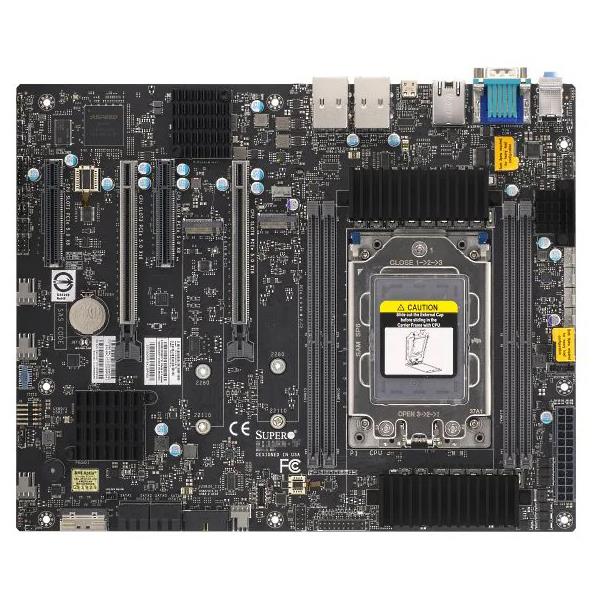

Supermicro H13SRA-TF-B Motherboard ATX Single Socket sTR5 (LGA-4844) AMD Ryzen Threadripper 9000/7000 Series Processors And PRO 9000/7000 WX-Series Processors

Supermicro H13SRA-TF-B Motherboard ATX Single Socket sTR5 (LGA-4844) AMD Ryzen Threadripper 9000/7000 Series Processors And PRO 9000/7000 WX-Series Processors

  • Capacity of 1TB ECC RDIMM, DDR5 memory in 4 DIMM slots

  • Includes 2 PCIe 4.0 x4 M.2 interfaces, supporting form factors 2280/22110

  • Offers Dual 10Gb LAN with Broadcom BCM57416, 1 Dedicated LAN for IPMI

  • Supports Threadripper PRO 7000 WX-Series and Ryzen Threadripper 7000 Series Processors

Motherboard ATX Supports Single Socket sTR5 (LGA-4844) For AMD Ryzen Threadripper PRO 9000/7000 WX-Series And Ryzen Threadripper 9000/7000 Series Processors, Up To 96C/192T, Supports Up To 350W TDP CPUs. Up To 1TB Of Memory With Speeds Of 6400+MT/s (1DPC) With Overclocking Support, In 4 DIMM Slots. On-Board: 4 SATA (6Gbps), RAID 0/1/10 Support. LAN Ports: Dual LAN With 10Gb Broadcom BCM57416, Single LAN With ASPEED AST2600, Dedicated LAN For IPMI. Others: 10 USB Ports, 1 VGA Port, 1 COM Port, 1 TPM 2.0 Header. Includes 2 PCIe 5.0 X8 Slots Open Rear, 2 PCIe 5.0 X16 Slots, Metal Armor Protection, Support 2 Triple/Dual/Single-Width GPU Cards, 1 PCIe 4.0 X8 Slot, MCIO Connector. 2 M.2 PCIe 4.0 X4 Slots (M-Key 2280/22110) - (MBD-H13SRA-TF-B)

$ 705.50$ 705.50705.5USD

$ 705.50

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    1. AMD Ryzen™ Threadripper™ PRO 9000/7000 WX-Series and Ryzen™ Threadripper™ 9000/7000 Series Processors
    2. Single socket sTR5, LGA-4844, Up to 350W TDP, Overclocking supported
    3. AMD TRX50
    4. Up to 1TB of memory with speeds of 6400+MT/s (1DPC) with overclocking support
    5. M.2 Interface: 2 PCIe 4.0 x4 (RAID 0, 1)M.2 Form Factor: 2280/22110M.2 Key: M-Socket
    6. 2 PCIe 5.0 x16, support 2 triple/dual/single-width GPU cards2 PCIe 5.0 x8, open rear
    7. Dual 10Gb LAN with Broadcom BCM57416
    8. 1 MCIO connector (PCIe Gen4 x8) to support 2 U.2 ports via cable for NVMe 2.5" SSD drives (RAID 0,1)
    9. 1 Dedicated LAN for IPMI
    10. Overclocking supported on CPU and RDIMM

    Extra Specifications for Supermicro H13SRA-TF-B Motherboard ATX Single Socket sTR5 (LGA-4844) AMD Ryzen Threadripper 9000/7000 Series Processors And PRO 9000/7000 WX-Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorATX
    Dimensions (WxDxH)12" x 9.6" (30.48cm x 24.384cm)
    Processor
    Compatible ProcessorsAMD Ryzen Threadripper PRO 9000 WX-Series
    AMD Ryzen Threadripper PRO 7000 WX-Series
    AMD Ryzen Threadripper 9000 Series
    AMD Ryzen Threadripper 7000 Series
    Compatible SocketSingle Socket sTR5 (LGA-4844)
    Cache/CoreUp to 96C/192T
    System Memory
    Memory TypeSlot Count: 4 DIMM Slots
    DIMM SizesRDIMM/3DS RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    On-Board Devices
    ChipsetTRX50
    SATA/SAS4 SATA (6Gbps), RAID 0/1/10 support
    Network ControllersDual LAN with 10Gb Broadcom BCM57416, Single LAN with ASPEED AST2600, Dedicated LAN for IPMI
    TPM1 TPM 2.0 header
    Input / Output
    USB(s)2 USB 2 port(s) (Header), 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 4 USB 3.2 Gen2x1 Type-A port(s) (Rear), 2 USB 3.2 Gen1x1 port(s) (Header), 1 USB 3.2 Gen2x1 Type-C port(s) (Header)
    Video Output1 VGA port
    Serial Port / Headers1 COM port(s)
    Expansion / Connectivity
    Expansion Slots Total (Free)2 PCIe 5.0 x8 slots , Open rear
    2 PCIe 5.0 x16 slots , metal armor protection, support 2 triple/dual/single-width GPU cards
    1 PCIe 4.0 x8 slot , MCIO connector
    M.22 M.2 PCIe 4.0 x4 slots (M-key 2280/22110)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    BIOS FeaturesACPI 6.5, RTC (Real Time Clock) Wakeup, SMBIOS 3.6 or later, UEFI 2.9
    Software
    SoftwareSupermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), IPMI Utilities
    Management
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management, Wake-On-LAN, S4/S5
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+12V,+3.3V,+5V,+5V standby,3.3V standby,CPU temperature,CPU thermal trip support,GPU temperature,Memory temperature,NvMe temperature,PCH temperature,SAS HDD temperature,System temperature,Vcore,Vmem
    FAN7x 4-pin fan headers (up to 7 fans), 2 4-pin fan headers for CPU liquid cooling pump, CPU/Suspend-state indicator LED, CPU/System Overheat LED, Fan failed LED, Fan speed control, HDD activity LED, LAN activity LED, UID/remote UID LED
    Other FeaturesChassis intrusion detection, Power supply monitoring, RoHS
    Parts List
    I/O Shield1x MCP-260-00189-0B
    I/O Cables2x CBL-0044L

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website
