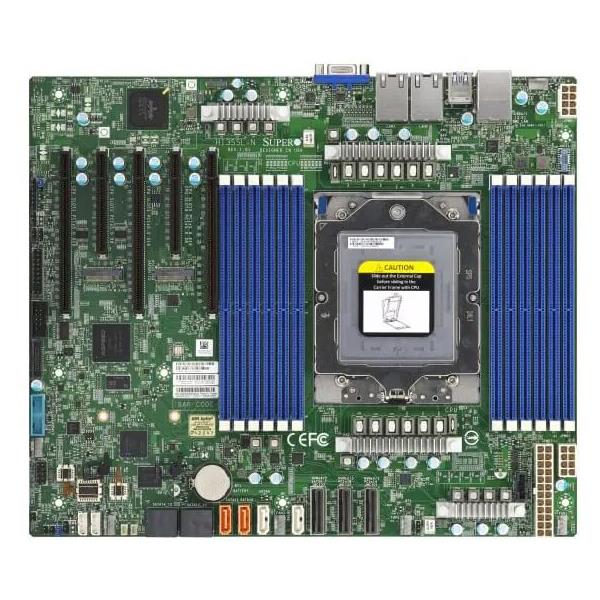

Supermicro H13SSL-N-B Motherboard ATX Single Socket (SP5) AMD EPYC 9004/9005 Series Processors

Supermicro H13SSL-N-B Motherboard ATX Single Socket (SP5) AMD EPYC 9004/9005 Series Processors

  • Onboard controller for 8 SATA3 (6 Gb/s) Ports

  • Up to 3 TB ECC DDR5 RDIMM Memory in 12 DIMM Slots

  • Includes Dual 1 GbE LAN Ports and 1 Dedicated IPMI LAN Port

  • Support AMD EPYC 9004/9005 Series Processors in Single Socket SP5

Motherboard ATX Support Single Socket (SP5) For AMD EPYC 9004/9005 Series Processors (AMD EPYC 9005 Series Drop-in Support Requires Board Revision 2.x), Up To 160C/320T, Supports Up To 400W TDP CPUs. Up To DDR5 12 DIMM Slots. On-Board: SATA. LAN Ports: Dual LAN With Broadcom BCM5720 1GBase-T, 1 RJ45 1GbE Dedicated IPMI LAN Port. Others: 6 USB Ports, 1 VGA Port, 1 COM Port (Header), 2 SuperDOM, 1 TPM Header, 2 MCIO (PCIe 5.0 x8) Ports. Includes 3 PCIe 5.0 X16 Slots, 2 PCIe 5.0 X8 Slots, 2 M.2 PCIe 4.0 X4 SATA/NVMe Slots (M-Key 2280/22110) - (MBD-H13SSL-N-B)

$ 617.00$ 617.00617.0USD

$ 617.00

Option not available

PreOrder
2 lb

Contact us for volume discounts

    This combination does not exist.

    Add to Cart

    • AMD EPYC 9004/9005 Series Processors (AMD EPYC 9005 series drop-in support requires board revision 2.x) System on Chip

    • Support up to DDR5 12 DIMM slots (1DPC), speed up to 6000 MT/s (Please check System Memory Section for detail)

    • 3 PCIe 5.0 x16 ; 2 PCIe 5.0 x8

    • 2x 1GBase-T LAN Ports with Broadcom BCM5720L

    • Up to 6 USB 3.0 ports(4 rear + 2 via header)

    • 8 SATA3

    • ASPEED AST2600 BMC graphics

    • 6 PWM 4-pin Fans with tachometer status monitoring

    • M.2 Interface: 2 PCIe 5.0 x4 M.2 Form Factor: 2280, 22110

    Extra Specifications for Supermicro H13SSL-N-B Motherboard ATX Single Socket (SP5) AMD EPYC 9004/9005 Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorATX
    Dimensions (WxDxH)12" x 10.1" (30.48cm x 25.65cm)
    Processor
    Compatible ProcessorsSingle processor AMD EPYC 9004/9005 Series Processors (AMD EPYC 9005 Series drop-in support requires board revision 2.x)
    Compatible SocketSingle Socket SP5
    Cache/CoreUp to 160C/320T
    System Memory
    Memory TypeSlot Count: 12 DIMM Slots
    DIMM SizesRDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    Network ControllersDual LAN with Broadcom BCM5720 1GBase-T
    TPM1 TPM Header
    Others2 MCIO (PCIe 5.0 x8) port(s), 1 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s)
    Input / Output
    LAN1 RJ45 1 GbE Dedicated IPMI LAN port(s) (Realtek RTL8211F PHY)
    USB(s)2 USB 3.0 port(s) (Header), 4 USB 3.0 port(s)
    Video Output1 VGA port
    Serial Ports1 COM port(s) (header)
    DOM2 SuperDOM (Disk on Module) port(s) with power connector support
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCIe 5.0 x16 slots
    2 PCIe 5.0 x8 slots
    M.22 M.2 PCIe 4.0 x4 SATA/NVMe slots (M-key 2280/22110)
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    BIOS FeaturesACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support
    Software
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
    LEDBMC/IPMI Heartbeat LED, UID/remote UID LED
    FAN6x 4-pin fan headers (up to 6 fans)
    Other FeaturesRoT

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
