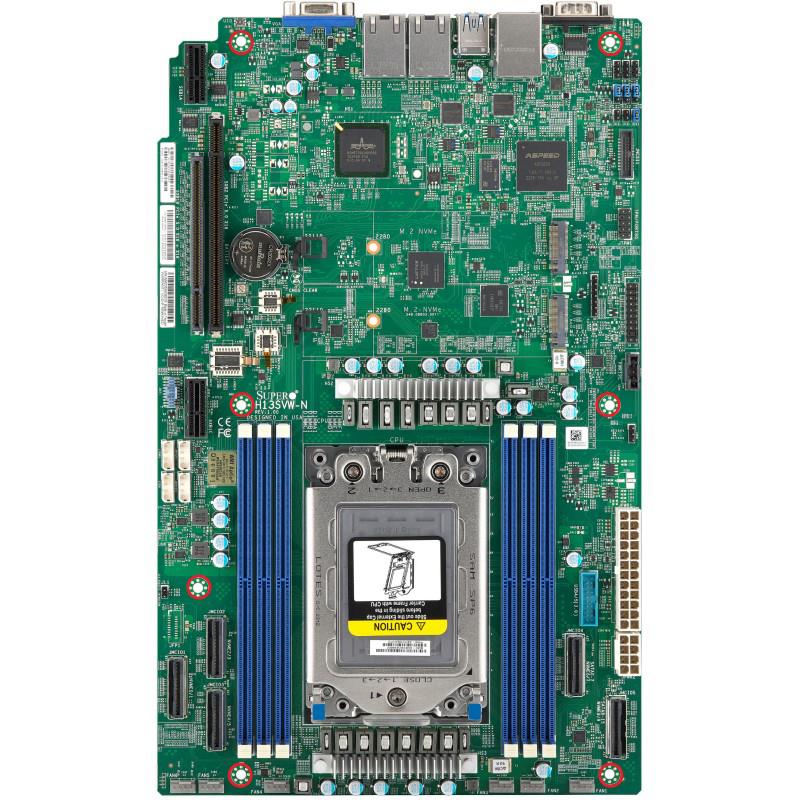

Supermicro H13SVW-N-B Motherboard Proprietary WIO Single Socket (SP6) AMD EPYC 8004 Series Processor

Onboard controller for 8 SATA3 / PCIe 5.0 Hybrid via MCIO Ports
Support AMD EPYC 8004 Series Processors in Single Socket SP6
Up to 768GB ECC DDR5-4800MHz RDIMM Memory in 6 DIMM Slots
Dual 1 GbE LAN Ports via Broadcom BCM5720 and 1 Dedicated IPMI LAN Port

Motherboard Proprietary WIO Support Single Socket (SP6) For AMD EPYC 8004 Series Processor, Up To 64 Core/128 Thread, 225W TDP. Up To 576 GB Of ECC DDR5 4800 MHz Speed, RDIMM Memory, In 6 DIMM Slots. On-Board: SATA / NVMe Hybrid. LAN Ports: 2x 1GBase-T LAN (Broadcom BCM5720L), 1x Realtek RTL8211F (IPMI). Includes 1x PCIe 5.0 X16 Right Riser, 1x PCIe 5.0 X32 Left Riser (2x PCIe 5.0 X16 Effective) - (MBD-H13SVW-N-B)

AMD EPYC 8004 series Processors
System on Chip
Up to 768GB ECC RDIMM, DDR5-4800MHz in 6 DIMM slots
2 PCIe 5.0 x16 via Riser Slot ; 1 PCIe 5.0 x 16 via Riser Slot
2x 1GBase-T LAN Ports via Broadcom BCM5720L
Up to 6 USB 3.0 ports(4 rear + 2 via header)
3 PCIe 5.0 x8 MCIO connectors
8 SATA3 / PCIe 5.0 Hybrid via 2 PCIe 5.0 x8 MCIO
6 PWM 4-pin Fans with tachometer status monitoring
M.2 Interface: 2 PCIe 5.0 x4M.2 Form Factor: 2280, 22110

Extra Specifications for Supermicro H13SVW-N-B Motherboard Proprietary WIO Single Socket (SP6) AMD EPYC 8004 Series Processor

Main Specifications
Device Type	Motherboard
Form Factor	Proprietary WIO
Dimensions (WxDxH)	8.15" x 13.05" (20.7cm x 33.15cm)
Processor
Compatible Processors	AMD EPYC 8004 series Processors, CPU TDP supports Up to 225W TDP
Compatible Socket	Single Socket SP6
Cache/Core	Up to 64C/128T
System Memory
Memory Type	Slot Count: 6 DIMM Slots, Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM
DIMM Sizes	RDIMM:16GB, 32GB, 64GB, 96GB, 128GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors, Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset	System on Chip
Network Controllers	Dual LAN with Broadcom BCM5720 1GBase-T, Single LAN with Realtek RTL8211F PHY
TPM	1 TPM 2.0 header
Others	2 MCIO (PCIe 5.0 x8/SATA3) Hybrid port(s), 3 MCIO (PCIe 5.0 x8) port(s)
Input / Output
USB(s)	2 USB 3.0 port(s) (Header), 4 USB 3.0 port(s)
Video Output	1 VGA port
Expansion / Connectivity
Expansion Slots Total (Free)	1 PCIe 5.0 x16 Right Riser Slot, 1 PCIe 5.0 x32 Left Riser Slot
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 2280/22110)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
BIOS Features	ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support
Management
Software	SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	+12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature
LED	BMC/IPMI Heartbeat LED, UID/remote UID LED
FAN	6x 4-pin fan headers (up to 6 fans)
Other Features	RoT
Parts List
I/O Cables	1x CBL-MCIO-1270OT4S2-85

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
