| Main Specifications |

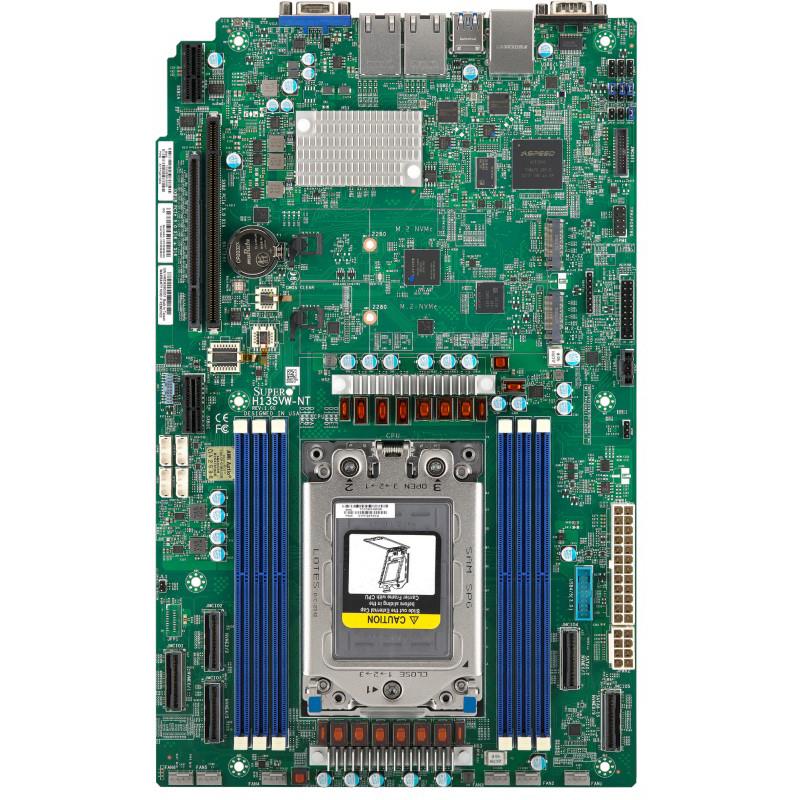

| Device Type | Motherboard |
| Form Factor | Proprietary WIO |
| Dimensions (WxDxH) | 8.15" x 13.05" (20.7cm x 33.15cm) |
| Processor |
| Compatible Processors | AMD EPYC 8004 series Processors, CPU TDP supports Up to 225W TDP |
| Compatible Socket | Single Socket SP6 supported |
| Cache/Core | Up to 64C/128T |
| System Memory |
| Memory Type | Slot Count: 6 DIMM Slots, Max Memory (1DPC): Up to 768GB 4800MT/s ECC DDR5 RDIMM |
| DIMM Sizes | RDIMM:16GB, 32GB, 64GB, 96GB, 128GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Dual LAN with Broadcom BCM57416 10GBase-T |
| Single LAN with Realtek RTL8211F PHY |
| TPM | 1 TPM 2.0 header |
| Input / Output |
| USB(s) | 2 USB 3.0 port(s) (Header), 4 USB 3.0 port(s) |
| Video Output | 1 VGA port(s) |
| Others | 3 MCIO (PCIe 5.0 x8) Port(s), 2 MCIO (PCIe 5.0 x8/SATA3) Port(s) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 5.0 x16 Right Riser slot |
| 1 PCIe 5.0 x8 Left Riser slot |
| M.2 | 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Software |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New!, Plug-ins for 3rd Party Software, IPMI Utilities |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+5V,+5V standby,1.8V standby,3.3V standby,CPU temperature,CPU thermal trip support,Memory temperature,VBAT,VRM temperature |
| LED | BMC/IPMI Heartbeat LED, UID/remote UID LED |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Other Features | RoT |
