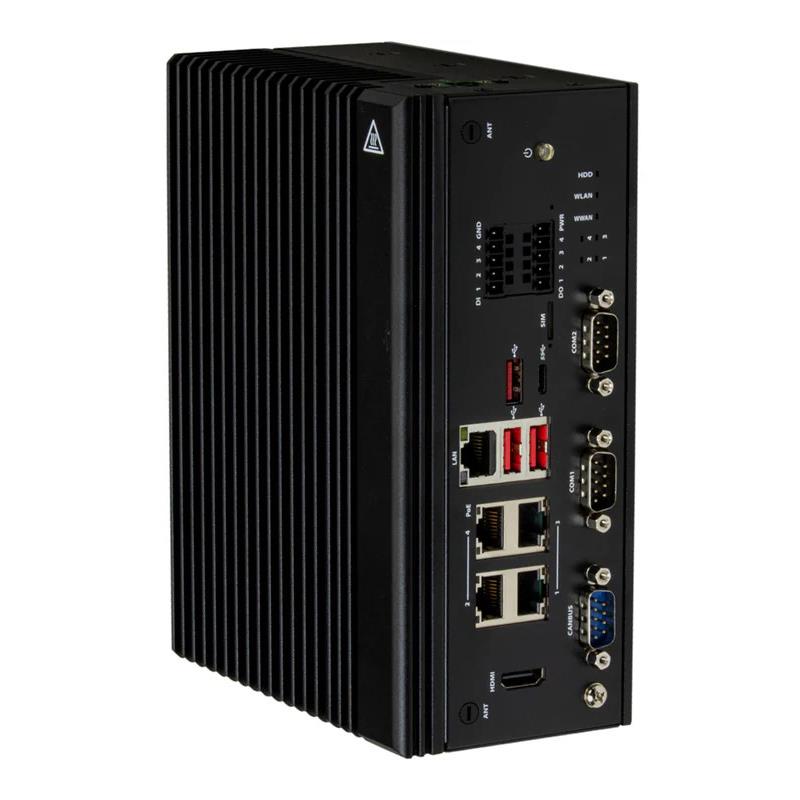

Supermicro ARS-E103-JONX-H IoT Fanless Embedded Embedded Arm Cortex-A78AE Processor

• Imaging and Computer Vision
• Industrial Automation
• Healthcare
• Artificial Intelligence
• Digital Signage / PoS

Barebone Compact Fanless Edge AI Platform Server, Embedded Arm Cortex-A78AE v8.2 64-bit Processor (8-Core/8-Thread, 6MB Cache), Onboard Memory, Max Memory: Up To 16GB ECC LPDDR5X. Chipset: System on Chip, Drive Bays / Storage: 1 M.2 PCIe 4.0 x4 NVMe Slot M-key 2280 (Default). Network Connectivity: 3 RJ45 1GbE LAN Ports (Intel I210-IT), 1 RJ45 10GbE LAN Port (Marvell AQC113), 1 RJ45 1GbE LAN Port (SoC). Others: 4 USB Ports, 1 HDMI 2.0b Port (Front), 2 COM RS232/RS422/RS485 Ports (Front), 1 CANBus Port, 1 4 DI/4 x DO (Terminal Block) Port, 2 nano SIM Holder Ports. 1x 180W Power Supply - (CSE-E102L2 + Super AOM-JSOR-001) - ARS-E103-JONX-H

1. Fanless DIN Rail Mounted System Jetson Orin NX Fanless Edge AI Inferencing System
2. 8-core Arm ® Cortex ® -A78AE v8.2 64-bit CPU 2MB L2 + 4MB L3
3. 1024-core NVIDIA Ampere GPU with 32 Tensor Cores, Up to 157 TOPS
4. 1 10G/1G LAN optional by Sku (10G: -H(2), 1G: -L(2)) 4 1Gbe w/ POE or 2 x1Gbe w/ PoE+ (by AOM-POE-001 jumper setting)
5. 1 M.2 B-key 3042/3052 (USB3.2, USB2.0) w/ dual nano-SIM 1 M.2 E-key 2230 (PCIe x1, USB2.0) 1 M.2 M-key 2280 (PCIe4.0 x4)
6. 1 NVMe 2280 at M.2 M-Key
7. DC 9-36V Operating Temperature -25℃ to 60 ℃ (-13°F to 140°F) with 0.7m/s airflow and Industrial Grade peripherals

Extra Specifications for Supermicro ARS-E103-JONX-H IoT Fanless Embedded Embedded Arm Cortex-A78AE Processor

Product SKUs
Product SKUs	ARS-E103-JONX-H
Motherboard
Motherboard	Super AOM-JSOR-001
Processor
CPU	Arm® Cortex®-A78AE v8.2 64-bit CPU
Core Count	Up to 8C/8T; Up to 6MB Cache
Note	Supports up to 40W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: Onboard Memory
	Max Memory: Up to 16GB ECC LPDDR5X
On-Board Devices
Chipset	System on Chip
Network Connectivity	No NIC option supported
	3 RJ45 1GbE with Intel® I210-IT
	1 RJ45 10GbE with Marvell® AQC113C
	1 RJ45 1GbE with SoC
Input / Output
LAN	3 RJ45 1 GbE LAN ports (Intel® I210-IT)
	1 RJ45 10 GbE LAN port (Marvell® AQC113)
	1 RJ45 1 GbE LAN port (SoC)
USB	1 USB 3.2 Gen2 Type-C port(Front)
	3 USB 3.2 Gen2 Type-A ports(Front)
Video	1 HDMI 2.0b port(Front)
Serial	2 COM RS232/RS422/RS485 ports(Front)
Others	1 CANBus port
	1 4 DI/4 x DO (terminal block) port
	2 nano SIM holder ports
Management
Power configurations	+9~36V DC Power Input
Chassis
Form Factor	Fanless Embedded
Model	CSE-E102L2
Dimensions and Weight
Height	3.15" (80 mm)
Width	7.28" (185 mm)
Depth	5.5" (140 mm)
Package	7.87" (H) x 11.42" (W) x 9.06" (D)
Weight	Gross Weight: 4.75 lbs (2.15 kg)
	Net Weight: 3.25 lbs (1.47 kg)
Available Color	Black
Front Panel
Buttons	Power On/Off
LED	Power status
Expansion Slots
M.2
Drive Bays / Storage
M.2	1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default))
System Cooling
Fans	N/A
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
	Operating Relative Humidity: 8% to 80% (non-condensing)
	Non-operating Relative Humidity: 8% to 90% (non-condensing)
	Operating Temperature: -25°C to 60°C (-13°F to 140°F) with 0.7 m/s airflow

Warranty:	3 years labor, 1 year parts, 1 year advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 1 year, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website

Supermicro ARS-E103-JONX-H IoT Fanless Embedded Embedded Arm Cortex-A78AE Processor

$ 1,769.00$ 1,769.001769.0USD

$ 1,769.00
