  2. Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors
Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors
Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors
Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors
Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors
Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors

Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors

• Scientific Research
• High Performance Computing
• AI/Deep Learning Training
• Industrial Automation
• Healthcare
• Data center
• Conversational AI
• Business Intelligence & Analytics
• Drug Discovery
• Climate and Weather Modeling
• Finance & Economics

Barebone 10U Rackmount SuperServer, Supports Dual Socket SP5 For AMD EPYC 9005/9004 Series Processors, Up To 384C/768T, Supports Up To 500W TDP CPUs. 8 Onboard GPUs. 24 DIMM Slots Supporting Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC 9005 Series Processor). Chipset: System on Chip, On-Board: SATA. Drive Bays / Storage: 8 Front Hot Swap 2.5In PCIe 5.0 X4 NVMe Drive Bays, 2 Front Hot Swap 2.5In SATA Drive Bays, 2 M.2 NVMe Slots (M Key). Network Connectivity: 2 RJ45 10GbE With Intel X710, 1 RJ45 1GbE Dedicated BMC LAN Port. 6x 5250W Power Supplies - (CSE-GP1001TS-R000NPF2 + Super H14DSG-OD) - AS-A126GS-TNMR

$ 24,148.00$ 24,148.0024148.0USD

$ 24,148.00

Option not available

InStock
341 lb

    This combination does not exist.

    Add to Cart

    1. Dual AMD EPYC™ 9005/9004 Series Processors

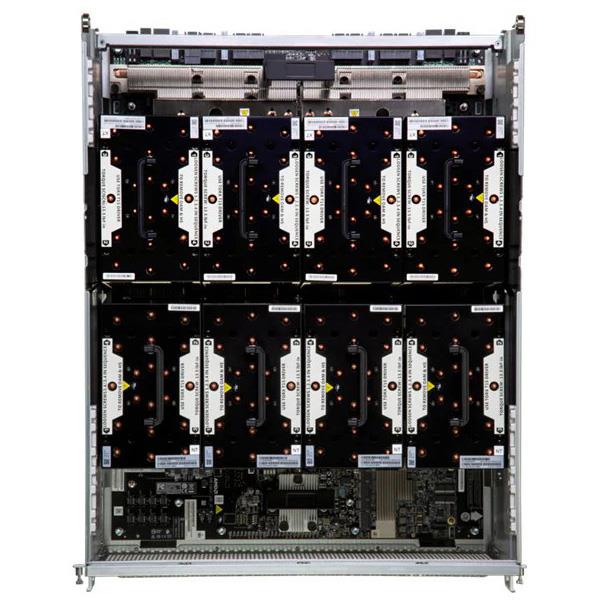

    2. Total of 8x MI355x onboard OAM GPU accelerator modules (Air-cooled)
    3. Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only) (Please check System Memory Section for detail)
    4. 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slots Dual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
    5. 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays Dual Serviceable M.2 slots with RAID
    6. Total of 6x 6600W (4+2) Titanium Level redundant power supplies (Power supply full redundancy based on configuration and application load)

    Extra Specifications for Supermicro AS-A126GS-TNMR GPU 10U Barebone Dual AMD EPYC 9005/9004 Series Processors

    Product SKUs
    Product SKUsAS -A126GS-TNMR
    Motherboard

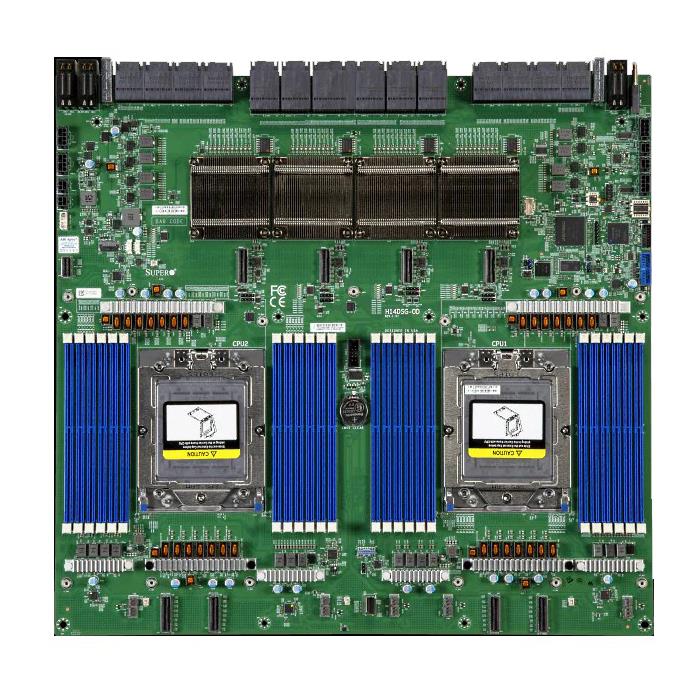

    MotherboardSuper H14DSG-OD
    Processor
    CPUDual processor(s)
    AMD EPYC™ 9005/9004 Series Processors
    Core CountUp to 384C/768T
    NoteSupports up to 500W TDP CPUs
    GPU
    Max GPU Count8 onboard GPUs
    Supported GPUView GPU Options
    AMD: Instinct™ MI355X Accelerators
    CPU-GPU InterconnectPCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU InterconnectAMD Infinity Fabric™ Link
    System Memory
    MemoryView Memory Options
    Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor)
    Max Memory (1DPC): Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor)
    Slot Count: 24 DIMM slots/1 Channels
    Memory Voltage1.1V
    On-Board Devices
    ChipsetSystem on Chip
    Network ConnectivityView AOC Options
    View AIOM Options
    2 RJ45 10GbE with Intel® X710
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port
    USB2 USB 3.0 Type-A ports(Rear)
    Video1 VGA port
    TPM1 TPM header
    System BIOS
    BIOS TypeAMI 64MB SPI Flash EEPROM
    Management
    SoftwareSupermicro Thin-Agent Service (TAS)
    Supermicro Update Manager (SUM)
    Supermicro Server Manager (SSM)
    SuperCloud Composer®
    Super Diagnostics Offline (SDO)
    SuperServer Automation Assistant (SAA) New!
    Supermicro SuperDoctor® 5 (SD5)
    Power configurationsACPI Power Management
    Power-on mode control for AC power loss recovery
    Power button override mechanism,
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    FeaturesCryptographically Signed Firmware
    Secure Boot
    Secure Firmware Updates
    Automatic Firmware Recovery
    Supply Chain Security: Remote Attestation
    Runtime BMC Protections
    System Lockdown
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANStatus monitor for speed control
    Pulse Width Modulated (PWM) fan connectors
    Fans with tachometer monitoring
    TemperatureMonitoring for CPU and chassis environment
    Thermal Control for fan connectors
    VoltageSystem temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support
    Chassis
    Form Factor10U Rackmount
    ModelCSE-GP1001TS-R000NPF2
    Dimensions and Weight
    Height17.2" (438.8 mm)
    Width17.6" (449 mm)
    Depth33.2" (843.28 mm)
    Package27.95" (H) x 50.39" (W) x 28.74" (D)
    WeightGross Weight: 341 lbs (155 kg)
    Net Weight: 293 lbs (133 kg)
    Available ColorSilver
    Front Panel
    LEDHDD activity
    System information (overheat/UID)
    Network activity LEDs
    UID
    ButtonsPower On/Off
    UID/ Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Drive Bays / Storage
    Drive Bays ConfigurationView Drive Options
    View NVMe Options
    2 front hot-swap 2.5" SATA drive bays
    8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays
    Default: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5" SATA drive bays
    M.22 M.2 NVMe slots (M-key)
    System Cooling
    FansUp to 19x 8cm heavy duty fans with optimal fan speed control
    Air Shroud1 Air Shroud
    Operating Environment
    Environmental Spec.Operating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Temperature: 10°C to 35°C (50°F to 95°F)
    NamePart NumberPriceAdd to CartQty.Description
    16 SASAOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key
    16 SASCBL-CDAT-1062$ 20.501i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    16 SASCBL-SAST-1264F-100$ 40.001Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
    16 SASCBL-SAST-1276F-100$ 37.501Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
    16 SASMCP-220-21602-0B$ 31.501Black 2.5" HDD dummy cover for 8 HDD, Hex hole
    20 NVMeCBL-GNZ4-1265M5Y-X$ 99.501GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    20 NVMeCBL-MCIO-1245M5-Z$ 62.001MCIO x8 (STR to STR),45cm,30AWG
    20 NVMeCBL-MCIO-1250M5-Z$ 57.002MCIO x8 (STR to STR),50cm,30AWG
    20 NVMeCBL-MCIO-1255M5$ 109.001MCIO x8 (STR to STR),55CM,30AWG
    20 NVMeCBL-MCIO-1260M5$ 71.001MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    20 NVMeCBL-MCIO-1326M5$ 0.001MCIO (x8 to x8), STR, 26cm,G5,32AWG
    20 NVMeCBL-MCIO-1330M5$ 0.001MCIO (x8 to x8), STR, 30cm,G5,32AWG
    20 NVMeCBL-MCIO-1340M5R$ 57.001MCIO x8 (STR to RA),40CM,32AWG
    20 NVMeMCP-220-00185-0N$ 27.002Dummy cover for two 2.5" drive bays
    20 NVMe + 4 SASAOC-S3808L-L8iT OR AOC-S3908L-H8iR18 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp
    20 NVMe + 4 SASCBL-GNZ4-1265M5Y-X$ 99.501GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    20 NVMe + 4 SASCBL-MCIO-1245M5-Z$ 62.001MCIO x8 (STR to STR),45cm,30AWG
    20 NVMe + 4 SASCBL-MCIO-1250M5-Z$ 57.002MCIO x8 (STR to STR),50cm,30AWG
    20 NVMe + 4 SASCBL-MCIO-1255M5$ 109.001MCIO x8 (STR to STR),55CM,30AWG
    20 NVMe + 4 SASCBL-MCIO-1260M5$ 71.001MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    20 NVMe + 4 SASCBL-MCIO-1326M5$ 0.001MCIO (x8 to x8), STR, 26cm,G5,32AWG
    20 NVMe + 4 SASCBL-MCIO-1330M5$ 0.001MCIO (x8 to x8), STR, 30cm,G5,32AWG
    20 NVMe + 4 SASCBL-MCIO-1340M5R$ 57.001MCIO x8 (STR to RA),40CM,32AWG
    20 NVMe + 4 SASCBL-SAST-1296F-100$ 43.001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
    24 NVMeCBL-GNZ4-1265M5Y-X$ 99.501GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG
    24 NVMeCBL-MCIO-1218M5-1$ 61.001MCIO x8 (STR to STR),18CM,85OHM
    24 NVMeCBL-MCIO-1221M5$ 0.001MCIO x8 (STR to STR),21cm
    24 NVMeCBL-MCIO-1245M5-Z$ 62.001MCIO x8 (STR to STR),45cm,30AWG
    24 NVMeCBL-MCIO-1250M5-Z$ 57.002MCIO x8 (STR to STR),50cm,30AWG
    24 NVMeCBL-MCIO-1260M5$ 71.001MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM
    24 NVMeCBL-MCIO-1326M5$ 0.001MCIO (x8 to x8), STR, 26cm,G5,32AWG
    24 NVMeCBL-MCIO-1330M5$ 0.001MCIO (x8 to x8), STR, 30cm,G5,32AWG
    24 NVMeCBL-MCIO-1340M5R$ 57.001MCIO x8 (STR to RA),40CM,32AWG
    24 NVMECBL-MCIO-1255M5$ 109.001MCIO x8 (STR to STR),55CM,30AWG
    24 SAS(16 SAS + 8 SAS)AOC-S3808L-L8iT OR AOC-S3908L-H8iR18 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp
    24 SAS(16 SAS + 8 SAS)AOC-S3816L-L16iT OR AOC-S3916L-H16iR116 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key
    24 SAS(16 SAS + 8 SAS)CBL-CDAT-1062$ 20.501i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    24 SAS(16 SAS + 8 SAS)CBL-SAST-1264F-100$ 40.001Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM
    24 SAS(16 SAS + 8 SAS)CBL-SAST-1276F-100$ 37.501Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM
    24 SAS(16 SAS + 8 SAS)CBL-SAST-1296F-100$ 43.001Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM
    24 SATACBL-CDAT-1062$ 20.501i2C Y cable (1x4 to 2x 1x4),45cm,26AWG
    24 SATACBL-MCIO-1223S4Y •1MCIO x8 to 2 SlimSAS x4, STR, 23cm, 85Ohm
    24 SATACBL-MCIO-1255S4Y •1MCIO x8 to 2 SlimSAS x4, STR, 55cm, 30AWG
    24 SATACBL-MCIO-1275S4Y •1MCIO x8 to 2 SlimSAS x4, STR, 75cm, 85Ohm
    24 SATAMCP-220-21602-0B$ 31.501Black 2.5" HDD dummy cover for 8 HDD, Hex hole
    Cable ArmMCP-290-00168-0N ( ***Requires MCP-290-11901-0N ***)1Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N ***
    Cable ArmMCP-290-11901-0N$ 116.00141" ball-bearing rail set for Hyper servers
    Chassis Rear Handle KitMCP-290-21907-0N1Hyper 2U rear handle kit for immersion cooling
    Drive Bay Dummy CoverMCP-220-21602-0BORMCP-220-00185-0N0Dummy cover for eight 2.5" drive bays Dummy cover for two 2.5" drive bays
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-MCIO-1245M5R$ 77.501MCIO x8 (RA to STR),45cm,30AWG
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-MCIO-1335M5R$ 45.501MCIO x8 (RA to STR),35CM,32AWG
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-PWEX-1136YB-25$ 25.501MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)LBL-4000$ 13.001Cabled PCIe Slot 2 Warning Label
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)MCP-240-21108-0N$ 57.001Riser Bracket(2-slot) for RSC-H-68G5
    PCIe Slot 1 (1x16)(Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)RSC-H-68G5$ 85.0011U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-MCIO-1245M5-Z$ 62.001MCIO x8 (STR to STR),45cm,30AWG
    PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-MCIO-1245M5R$ 77.501MCIO x8 (RA to STR),45cm,30AWG
    PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)CBL-PWEX-1136YB-25$ 25.501MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)MCP-240-21108-0N$ 57.001Riser Bracket(2-slot) for RSC-H-68G5
    PCIe slot 1+2 (2x8) (Apply to Configurations:24 SATA; 20 NVMe + 4 SAS; 24 SAS; 16 SAS; 20 NVMe; 16 SATA)RSC-H-68G5$ 85.0011U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-GNZ4-1227M5YRR16$ 83.001GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-PWEX-1136YB-25$ 25.501MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)LBL-4000$ 13.001Cabled PCIe Slot 4 Warning Label
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-120-82927-0N$ 25.501Middle riser support bracket
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-240-21108-0N$ 57.001Riser Bracket(2-slot) for RSC-H-68G5
    PCIe Slot 3 (1x16)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H-68G5$ 85.0011U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-GNZ4-1227M5YR21$ 0.001GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm
    PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-PWEX-1136YB-25$ 25.501MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-120-82927-0N$ 25.501Middle riser support bracket
    PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-240-21108-0N$ 57.001Riser Bracket(2-slot) for RSC-H-68G5
    PCIe slot 3+4 (2x8)(Apply to Configurations:24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H-68G5$ 85.0011U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 5 (1x16) + slot 7+8 (2x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-MCIO-1245M5-Z$ 62.002MCIO x8 (STR to STR),45cm,30AWG
    PCIe slot 5 (1x16) + slot 7+8 (2x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)LBL-4000$ 13.001Cabled PCIe Slot 6 Warning Label
    PCIe slot 5 (1x16) + slot 7+8 (2x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-240-21908-0N$ 71.501Riser Bracket(4-slot)
    PCIe slot 5 (1x16) + slot 7+8 (2x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H2-6888G5L$ 169.5012U LHS Hyper Riser card with 4 PCIe 5.0 slots
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-MCIO-1245M5R$ 77.501MCIO x8 (RA to STR),45cm,30AWG
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-MCIO-1335M5R$ 45.501MCIO x8 (RA to STR),35CM,32AWG
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-PWEX-1136YB-25$ 25.501MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)LBL-4000$ 13.001Cabled PCIe Slot 6 Warning Label
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-240-21908-0N$ 71.501Riser Bracket(4-slot)
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H-68G5$ 85.0011U LHS Hyper Riser card with two PCIe 5.0 slots
    PCIe slot 5+7 (2x16)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H-6G5L$ 76.5011U LHS Hyper riser card with one PCIe 5.0 X16 slot
    PCIe slot 5-8 (4x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)CBL-MCIO-1245M5-Z$ 62.002MCIO x8 (STR to STR),45cm,30AWG
    PCIe slot 5-8 (4x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)MCP-240-21908-0N$ 71.501Riser Bracket(4-slot)
    PCIe slot 5-8 (4x8)(Apply to Configurations: 24 SATA; 24 SAS; 16 SAS; 16 SATA)RSC-H2-6888G5L$ 169.5012U LHS Hyper Riser card with 4 PCIe 5.0 slots
    PCIe slot 7 (1x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)MCP-240-21908-0N$ 71.501Riser Bracket(4-slot)
    PCIe slot 7 (1x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)RSC-H-6G5L$ 76.5011U LHS Hyper riser card with one PCIe 5.0 X16 slot
    PCIe slot 7+8 (2x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)LBL-4000$ 13.002Cabled PCIe Slot 5/6 Warning Label
    PCIe slot 7+8 (2x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)MCP-240-21908-0N$ 71.501Riser Bracket(4-slot)
    PCIe slot 7+8 (2x16)(Apply to Configurations: 24 NVMe; 20 NVMe; 20 NVMe + 4 SAS)RSC-H2-6888G5L$ 169.5012U LHS Hyper Riser card with 4 PCIe 5.0 slots
    Rail SetMCP-290-11901-0N$ 116.00141" ball-bearing rail set for Hyper servers
    Rail SetMCP-290-11902-0N$ 117.00135.25" ball-bearing rail set for Hyper servers
    Rail SetMCP-290-11903-0N (included in the system )130.5" ball-bearing rail set for Hyper servers
    Rail SetMCP-290-21103-0N$ 111.50121.65" ball-bearing rail set for Hyper servers
    Serial Port DTK Cable with PCIe BracketCBL-0010L$ 18.5019-Pin 26CM Serial Port DTK Cable with PCIe Bracket
    TPM security moduleAOM-TPM-9670H-FIPS$ 64.501AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS
    TPM security moduleAOM-TPM-9670V$ 57.001SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor
    TPM security moduleAOM-TPM-9672V$ 73.001AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS
    TPM security moduleAOM-TPM-9672V-FIPS$ 79.001AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
    E-mail:returnservices@wiredzone.com

    If you need Technical Support for this item please contact:

    Provider:Supermicro
    Type of Support:FULL
    Phone No.:408-503-8000
    URL:Click here for Manufacturer Website

    Submit

    Recently Viewed Products
