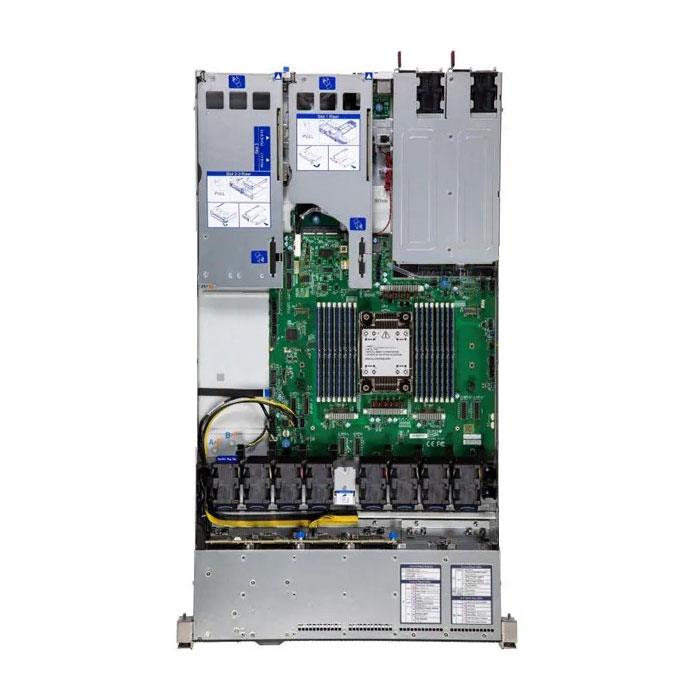

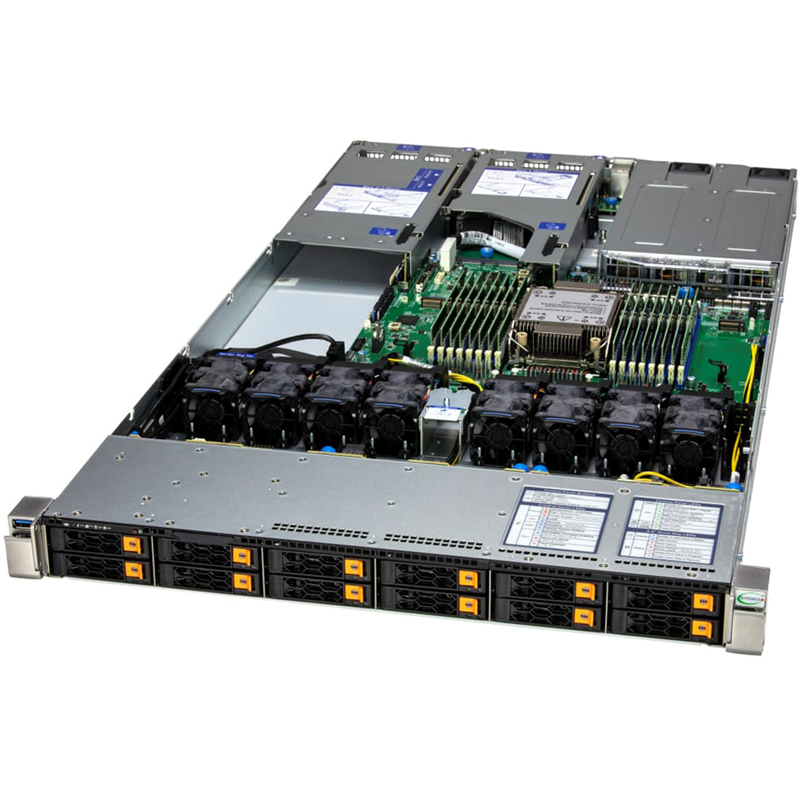

Ready to Ship - Supermicro SYS-112H-TN-02-G2 Hyper SuperServer Powered By One Intel Xeon 6731P Processor
Server 1U Rackmount SYS-112H-TN
Components installed:
CPU: 1x Intel Xeon 6731P (32C/2.5GHz),
Memory: 1TB DDR5-5200,
Storage: 2x 960GB M.2 NVMe SSD,
NIC: 1x quad 25GbE SFP28,
Power: 2x 1200W Titanium Level
This product is sold only as a completely assembled system.
Key Applications
Virtualization
Financial
Scale Out All-Flash NVMe Storage
Data Center Enterprise Applications
Cloud Computing
AI InferenceCDN/vCDN/Cloud CDN
Key Features
Hyper is a flagship performance rackmount server optimized for scale-out cloud workloads.
Single Intel Xeon 6 Processor.
16 DIMM slots support RDIMM / MRDIMM(1DPC)
Double-width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high-throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.
Extra Specifications for Ready to Ship - Supermicro SYS-112H-TN-02-G2 Hyper SuperServer Powered By One Intel Xeon 6731P Processor
| Main Specifications | ||
| Device Type | Hyper SuperServer | |

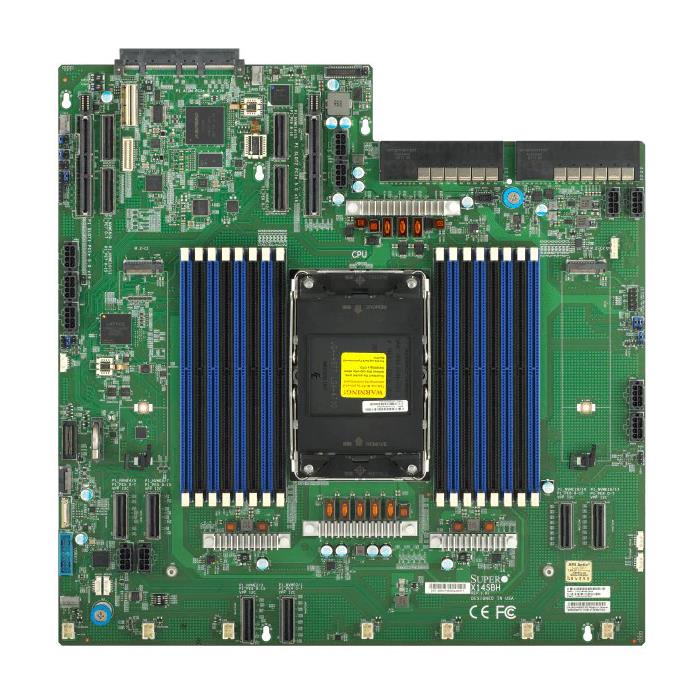

| Built-in Devices | Super X14SBH | |
| Form Factor | 1U Rackmount - CSE-HS101-R000NFP | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 30.66" (778.7 mm) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x Intel Xeon 6731P (32C/2.5GHz) | |
| System Memory | ||
| Memory Installed | 1TB DDR5-5200 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Card Installed | 1x quad 25GbE SFP28 | |
| NVMe. | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) | |
| Chipset | System on Chip | |
| Power Supply | ||
| Power Supply | 2x 1200W Titanium Level Power Supplies | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 3 single-width GPUs | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 | |
| NVIDIA PCIe: L4, L40S | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.2 Gen1 ports (Rear), 1 USB 3.2 Gen1 port (Front) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, Power status, System information | |
| Expansion / Connectivity | ||

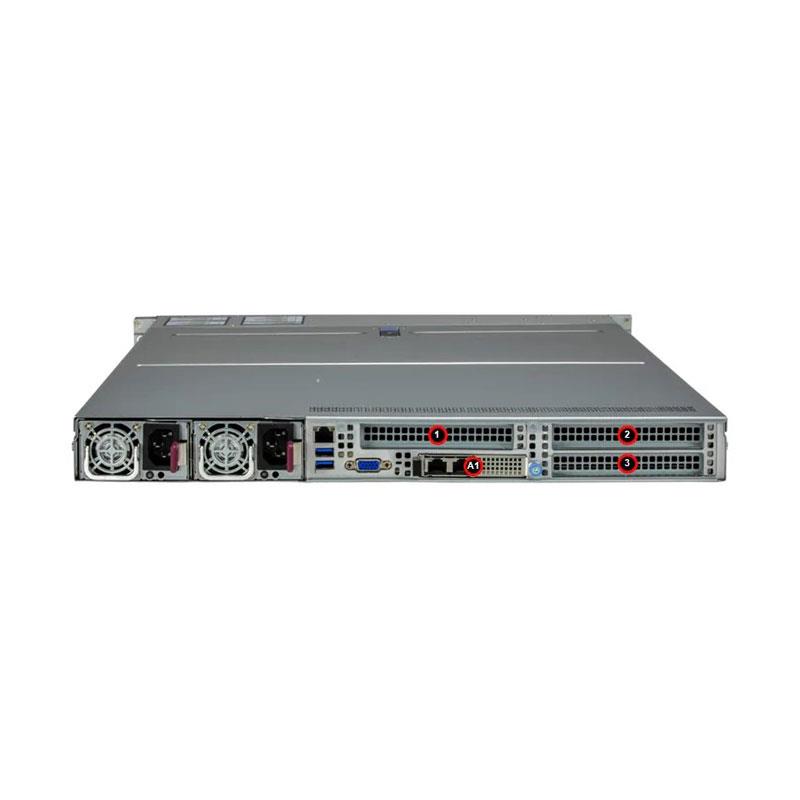

| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x16 (in x16) FHHL slot, 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) | |
| Option A: 1 PCIe 5.0 x16 (in x16) FHHL slot, 2 PCIe 5.0 x16 (in x16) FHFL slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) (Requires additional parts) | ||
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays | |

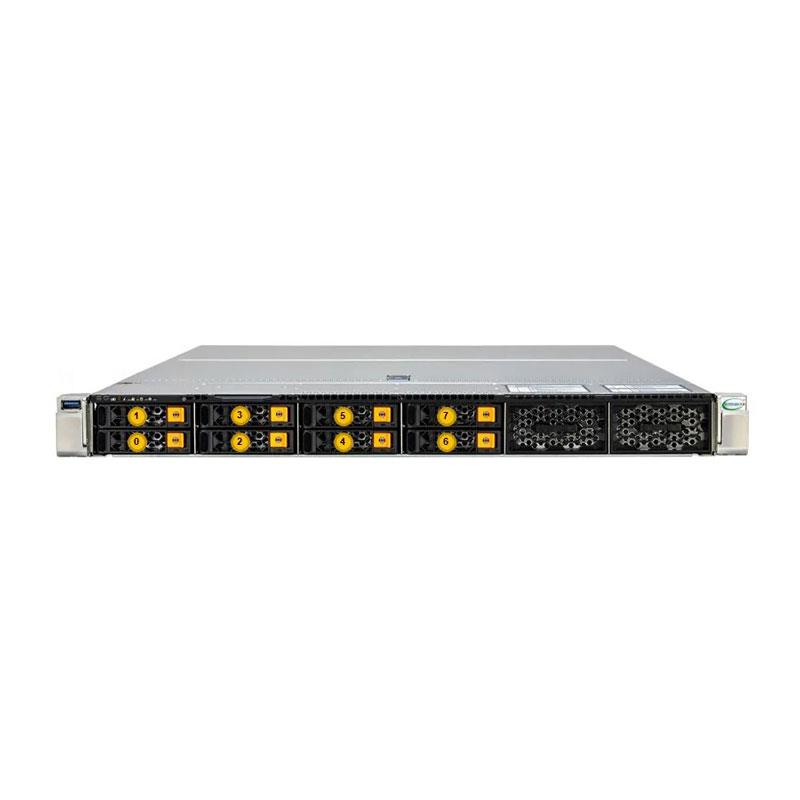

| Option A: 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays, 4 front hot-swap 2.5" SAS*/SATA* drive bays | ||

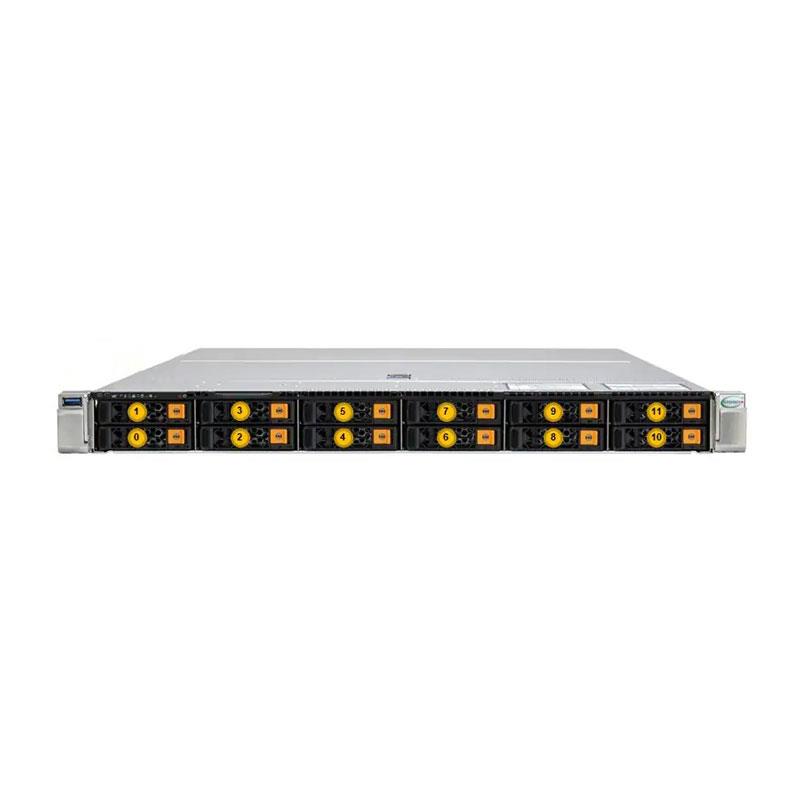

| Option B: 12 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) | ||
| System Cooling | ||
| Fans/Air Shroud | 1 CPU Air Shroud | |
| Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) | ||
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
