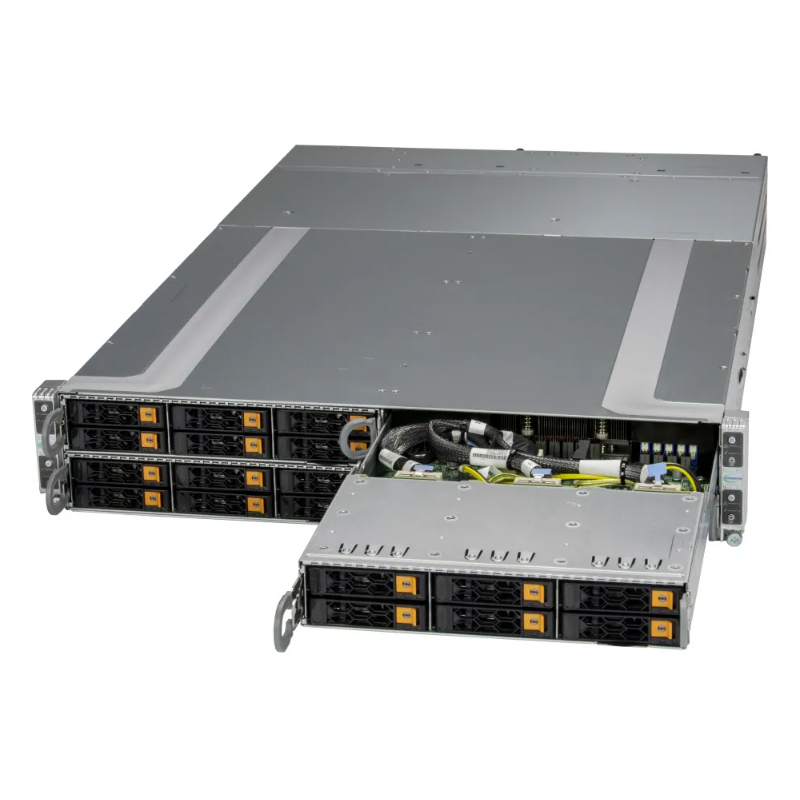

Ready to Ship - Supermicro AS-2115GT-HNTR-01-G2 2U GrandTwin A+ Server
Complete Server 2U Rackmount AS-2115GT-HNTR-01-G2
Components installed: CPU: 4x AMD EPYC 9534 (64C/2.45GHz), Memory: 2048G DDR5, Storage: 4x 960GB 2.5" SATA SSD, GPU: 2x NVIDIA A100 PCIe
This product is sold only as a completely assembled system.
Key Applications
HPC
Cloud Gaming
Telco EdgeMEC (Multi-Access Edge Computing)
Multi-Purpose CDN
High-availability Cache Cluster
EDA (Electric Design Automation)
Mission Critical Web Applications
Key Features
Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
Single AMD EPYC 9004/9005 Series Processors (AMD EPYC 9005 series drop-in support requires board revision 2.x)
Supports up to DDR5 12 DIMM slots (1DPC), speed up to 6400 MT/s (Please check System Memory Section for details)
2 AIOM / OCP 3.0 slots
Total of 6 Hot-swap 2.5"NVMe/SATA drives
Extra Specifications for Ready to Ship - Supermicro AS-2115GT-HNTR-01-G2 2U GrandTwin A+ Server
| Main Specifications | ||
| Device Type | GrandTwin A+ Server | |
| Built-in Devices | Super H13SST-G | |
| Form Factor | 2U Rackmount - CSE-GT214BC-R2K21BP | |
| Dimensions (WxDxH) | Height 3.46" (88 mm) x Width 17.67" (449 mm) x Depth 28" (711.2 mm) | |
| Weight | Gross Weight: 88 lbs (39.9 kg) - Net Weight: 68 lbs (30.8 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x AMD EPYC 9534 (64C/2.45GHz) per node | |
| System Memory | ||
| Memory Installed | 512GB (4800MT/s) Total Memory per node | |
| Drive Bays | ||
| Hard Drive Installed | 1x 960GB 2.5" SATA Solid-state Drive (SSD) per node | |
| M.2 (per node) | 2 M.2 NVMe/SATA slots (M-key) | |
| GPU | ||
| GPU Installed | 2x NVIDIA A100 PCIe | |
| On-Board Devices | ||
| Network Connectivity (per Node) | 100GbE | |
| Input / Output | ||
| LAN (per Node) | 1 RJ45 1 GbE Dedicated BMC LAN ports | |
| USB (per Node) | 2 USB 3.0 ports | |
| VGA (per Node) | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 32MB Flash ROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment | |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby | |
| Front Panel | ||
| Buttons | Power On/Off button, UID button | |
| LEDs | HDD activity LED, Network activity LEDs, Power status LED, Universal Information (UID) LED | |
| Expansion Slots | ||
| Expansion Slots (per node) | 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | |
| Expansion / Connectivity | ||
| Drive Bays / Storage (per Node) | 6 front hot-swap 2.5" NVMe/SATA drive bays | |
| System Cooling | ||
| Fans/Air Shroud | 1 per node Air Shroud(s) | |
| Up to 2x 17.6K RPM Heavy Duty 8cm Fan(s) | ||
| Power Supply | ||
| Power Supply | 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| RoHS Compliant | ||
