| Main Specifications |

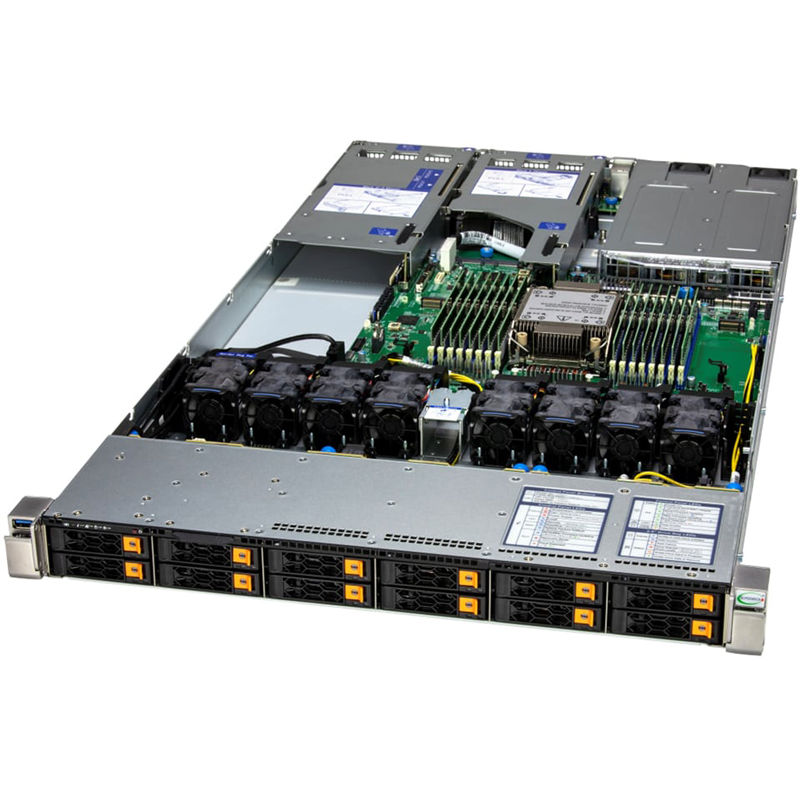

| Device Type | Hyper SuperServer |
| Built-in Devices | Super X14SBHM |
| Form Factor | 1U Rackmount - CSE-HS101-R000NFP |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 30.66" (778.7 mm) |
| Weight | Gross Weight: 41.4 lbs (18.8 kg) - Net Weight: 19.2 lbs (8.7 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | 1x Intel Xeon 6761P (64C/2.5GHz) |
| System Memory |
| Memory Installed | 1TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1x Dual 25GbE SFP28 |
| Chipset | System on Chip |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) |
| Power Supply |
| Power Supply | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies |
| GPU |
| Max GPU Count | Up to 1 double-width or 3 single-width GPUs |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 |
| NVIDIA PCIe: L4, L40S |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.2 Gen1 ports (Rear), 1 USB 3.2 Gen1 port (Front) |
| Video Output | 1 VGA port |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 1 CPU Air Shroud, 1 M.2 Side Air Shroud |
| Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro ThinAgent Service (TAS), SuperServer Automation Assistant (SAA) New! |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
