- Ready to Ship - Supermicro SYS-112H-TN-01-G2 Hyper SuperServer Powered By One Intel Xeon 6761P Processor
Ready to Ship - Supermicro SYS-112H-TN-01-G2 Hyper SuperServer Powered By One Intel Xeon 6761P Processor
Complete Server 1U Rackmount SYS-112H-TN
Components installed:
CPU: 1x Intel Xeon 6761P (64C/2.5GHz),
Memory: 1TB DDR5-6400,
Storage: 2x 3.8TB U.2 NVMe SSD,
NIC: 1x Dual 25GbE SFP28,
Power: 2x 1600W Titanium Level
This product is sold only as a completely assembled system.
Extra Specifications for Ready to Ship - Supermicro SYS-112H-TN-01-G2 Hyper SuperServer Powered By One Intel Xeon 6761P Processor
| Main Specifications | ||
| Device Type | Hyper SuperServer | |

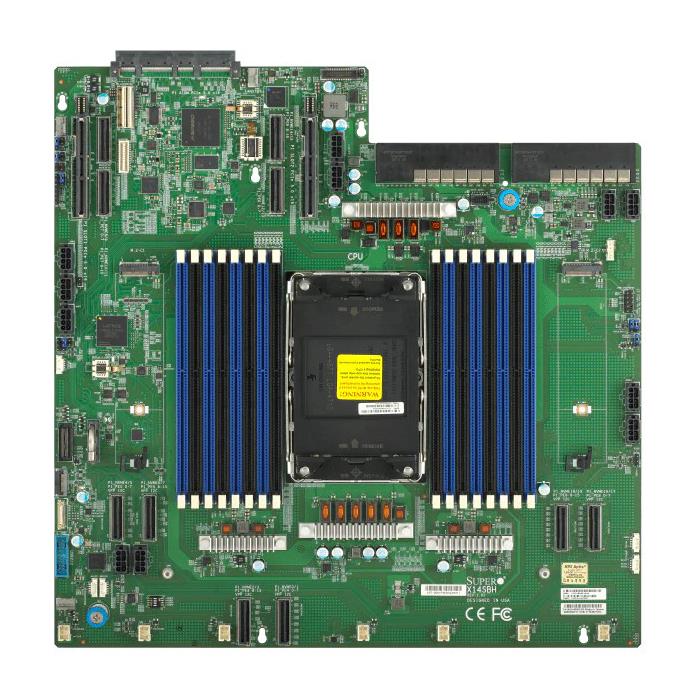

| Built-in Devices | Super X14SBHM | |
| Form Factor | 1U Rackmount - CSE-HS101-R000NFP | |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 30.66" (778.7 mm) | |
| Weight | Gross Weight: 41.4 lbs (18.8 kg) - Net Weight: 19.2 lbs (8.7 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x Intel Xeon 6761P (64C/2.5GHz) | |
| System Memory | ||
| Memory Installed | 1TB DDR5-6400 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 1x Dual 25GbE SFP28 | |
| Chipset | System on Chip | |
| NVMe | NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required) | |
| Power Supply | ||
| Power Supply | 2x 1200W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| GPU | ||
| Max GPU Count | Up to 1 double-width or 3 single-width GPUs | |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 | |
| NVIDIA PCIe: L4, L40S | ||
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.2 Gen1 ports (Rear), 1 USB 3.2 Gen1 port (Front) | |
| Video Output | 1 VGA port | |
| System Cooling | ||
| Fans/Air Shroud | Air Shroud: 1 CPU Air Shroud, 1 M.2 Side Air Shroud | |
| Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) | ||
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro ThinAgent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
