- Ready to Ship - Supermicro SYS-212H-TN-01-G2 2U Hyper SuperServer

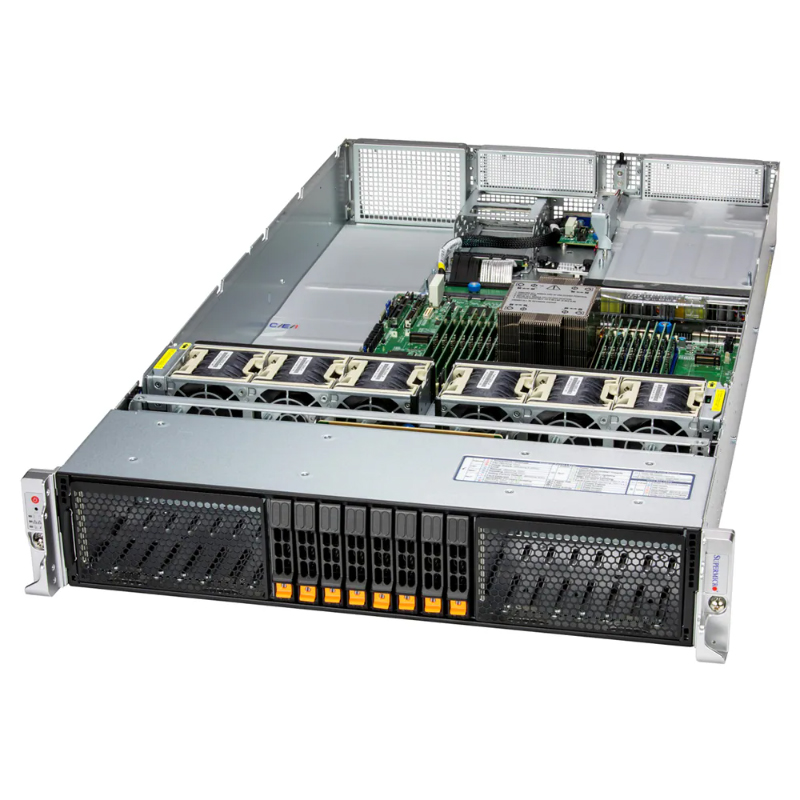

Ready to Ship - Supermicro SYS-212H-TN-01-G2 2U Hyper SuperServer
Complete 2U Rackmount SuperServer SYS-212H-TN-01-G2
Components installed: CPU: 1x Intel xeon 6761P (64C/2.5GHz), Memory: 1TB DDR5-6400, Storage: 2x 3.8TB U.2 NVMe SSD, NIC: 1x Dual 25Gbe SFP28, Power: 2x 2000W Titanium Level
This product is sold only as a completely assembled system.
Key Applications
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
Data Center Optimized
Database Processing and High-Density Storage
Key Features
Hyper is a flagship performance rackmount server designed for scale-out cloud workloads.
Single Intel Xeon 6 Processor.
16 DIMM slots support RDIMM / MRDIMM(1DPC)
Double-width add-on card support.
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible).
Breeze through high-throughput workloads with PCIe 5.0 NVMe drive support.
Trusted Platform Module (TPM) 2.0 onboard.
Modularized and Tool-less design for easy serviceability.
Extra Specifications for Ready to Ship - Supermicro SYS-212H-TN-01-G2 2U Hyper SuperServer
| Main Specifications | ||
| Device Type | Hyper SuperServer | |
| Built-in Devices | Super X14SBH | |
| Form Factor | 2U Rackmount - CSE-HS201-R000NFP | |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 31.74" (806.2 mm) | |
| Weight | Gross Weight: 75 lbs (34 kg) - Net Weight: 45 lbs (20.5 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 1x Intel Xeon 6761P (64C/2.5GHz) | |
| System Memory | ||
| Memory Installed | 1TB DDR5-6400 | |
| Drive Bays | ||
| Hard Drive Installed | Storage: 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Card Installed | 1x Dual 25Gbe SFP28 | |
| NVMe. | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) | |
| Chipset | System on Chip | |
| Power Supply | ||
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| GPU | ||
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs | |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect | |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 | |
| NVIDIA PCIe: H100 NVL, A10, H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation | ||
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) | |
| USB(s) | 2 USB 3.2 Gen1 ports(Rear) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, Power status, System information | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Option A: 1 PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 5.0 x16 FH/10.5"L double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | |
| Option B: 1 PCIe 5.0 x16 FHFL double-width slot, 2 PCIe 5.0 x8 FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option C: 4 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) | ||
| Option D: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) | ||
| Option E: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) | ||
| Option F: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) | ||
| (Requires additional parts, please see the optional parts list for details) | ||
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays | |
| Option A: 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays | ||
| Option B: 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) | ||
| System Cooling | ||
| Fans/Air Shroud | 1 CPU Air Shroud | |
| Up to 6 counter-rotating 60x60x56mm Fans | ||
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
