| Main Specifications |

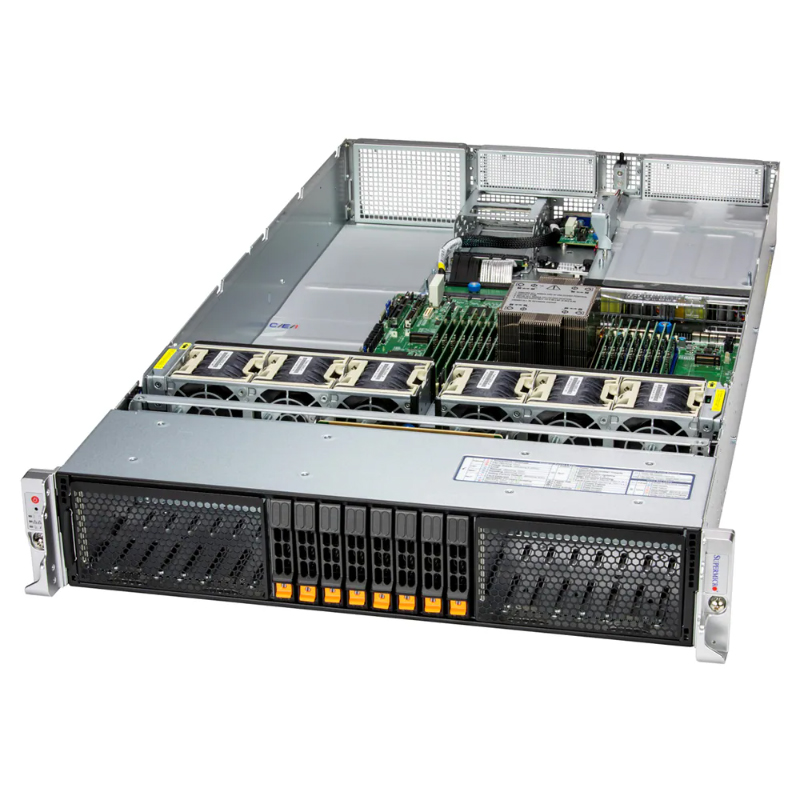

| Device Type | Hyper SuperServer |
| Built-in Devices | Super X14SBH |
| Form Factor | 2U Rackmount - CSE-HS201-R000NFP |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 31.74" (806.2 mm) |
| Weight | Gross Weight: 75 lbs (34 kg) - Net Weight: 45 lbs (20.5 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | 1x Intel Xeon 6761P (64C/2.5GHz) |
| System Memory |
| Memory Installed | 1TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | Storage: 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Card Installed | 1x Dual 25Gbe SFP28 |
| NVMe. | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) |
| Chipset | System on Chip |
| Power Supply |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies |
| GPU |
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| Supported GPU | Intel PCIe: Intel Data Center GPU Flex 170 |
| NVIDIA PCIe: H100 NVL, A10, H200 NVL (141GB), L4, L40S, NVIDIA RTX PRO 4500 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition, RTX 4000 Ada Generation |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.2 Gen1 ports(Rear) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| Buttons | Power On/Off, UID button |
| LEDs | HDD activity, LAN1 activity, Power status, System information |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Option A: 1 PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 5.0 x16 FH/10.5"L double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option B: 1 PCIe 5.0 x16 FHFL double-width slot, 2 PCIe 5.0 x8 FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option C: 4 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) |
| Option D: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) |
| Option E: 3 PCIe 5.0 x16 (in x16) FHFL double-width slots, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) |
| Option F: 1 PCIe 5.0 x16 (in x16) FHFL double-width slot, 1 PCIe 5.0 x16 (in x16) AIOM slot (OCP 3.0 compatible) |
| (Requires additional parts, please see the optional parts list for details) |
| M.2 | 2 M.2 NVMe slots (M-key 2280/22110/25110; VROC required for RAID) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays |
| Option A: 16 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays |
| Option B: 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 1 CPU Air Shroud |
| Up to 6 counter-rotating 60x60x56mm Fans |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
