- Ready to Ship - Supermicro SYS-822GS-NB3RT-01-G2 HGX B300 8-GPU System

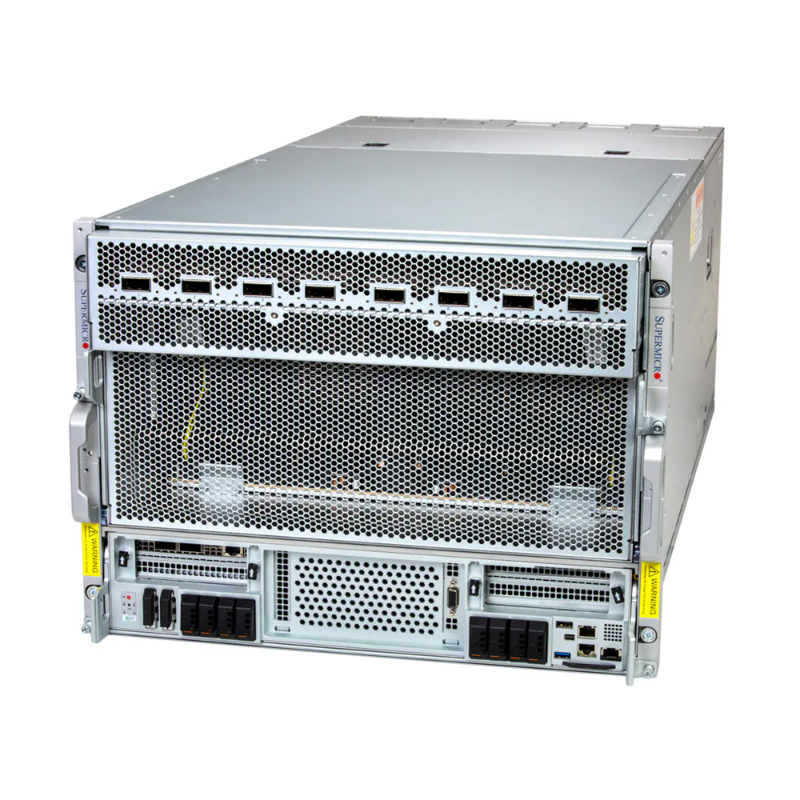

Ready to Ship - Supermicro SYS-822GS-NB3RT-01-G2 HGX B300 8-GPU System
Complete Server 8U Rackmount SYS-822GS-NB3RT
Components installed: CPU: 2x Intel Xeon 6768P (64C/2.4GHz), GPU: NVIDIA HGX B300 8-GPU, Memory: 2TB DDR5-6400, M.2: 1x 960GB M.2 NVMe SSD, NIC: 8-port 800GbE/XDR800, Power: Redundant 6600W Titanium Level
Key Applications
Scientific Research
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Finance Services and Fraud Detection
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI
High Performance Computing (HPC)
Autonomous Vehicle Technologies
Key Features
Dual Intel Xeon 6700 series processors with P-cores, up to 350W TDP
NVIDIA HGX B300 8-GPU with 5th Generation NVLink 1.8TB/s, 2.3TB of HBM3e GPU memory per system
8x NVIDIA ConnectX-8 SuperNICs, up to 800Gb/s, up to two North/South NICs
8x Hot-swap E1.S NVMe storage drive bays and 2x M.2 NVMe boot drives
32x DIMMs with up to 8TB at 5200MT/s or up to 4TB at 6400MT/s DDR5 RDIMM
6x redundant (3+3) 6.6kW Titanium level power supplies
Extra Specifications for Ready to Ship - Supermicro SYS-822GS-NB3RT-01-G2 HGX B300 8-GPU System
| Main Specifications | ||
| Device Type | GPU SuperServer | |
| Built-in Devices | Super X14DBG-LC | |
| Form Factor | 8U Rackmount - CSE-GP807TS-R000NP | |
| Dimensions (WxDxH) | Height 13.8" (356 mm) x Width 17.6" (449 mm) x Depth 37.4" (950 mm) | |
| Weight | Gross Weight: 302 lbs (137 kg) - Net Weight: 263 lbs (119 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 2x Intel Xeon 6768P (64C/2.4GHz) | |
| GPU | ||
| GPU Installed | NVIDIA HGX B300 8-GPU | |
| System Memory | ||
| Memory Installed | 2TB DDR5-6400 | |
| Drive Bays | ||
| Hard Drive Installed | 1x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| On-Board Devices | ||
| Network Connectivity | 8-port 800GbE/XDR800 | |
| Chipset | System on Chip | |
| Power Supply | ||
| Power Supply | 6x 6600W Redundant (3 + 3) Titanium Level (96%) power supplies | |
| Input / Output | ||
| LAN | 8 OSFP 800 GbE LAN ports (NVIDIA ConnectX-8 SuperNIC), 2 RJ45 10 GbE LAN ports (Intel X710) | |
| USB(s) | 1 USB 3.0 Type-A port(Front), 1 USB 2.0 Type-A port(Front) | |
| Video Output | 1 VGA port, 1 mini-DP port | |
| System BIOS | ||
| BIOS Type | AMI 64MB UEFI | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Miscellaneous | ||
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | 8+4 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, LAN2 activity, Power Fail, Power status, System information (overheat/UID) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHHL slots | |
| M.2 | 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | 8 front hot-swap E1.S NVMe drive bays | |
| System Cooling | ||
| Fans/Air Shroud | Up to 12 heavy duty fans with optimal fan speed control | |
| Environmental | ||
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
