- Ready to Ship - Supermicro SBI-612B-1NE34-01-G2 Superblade Sled System

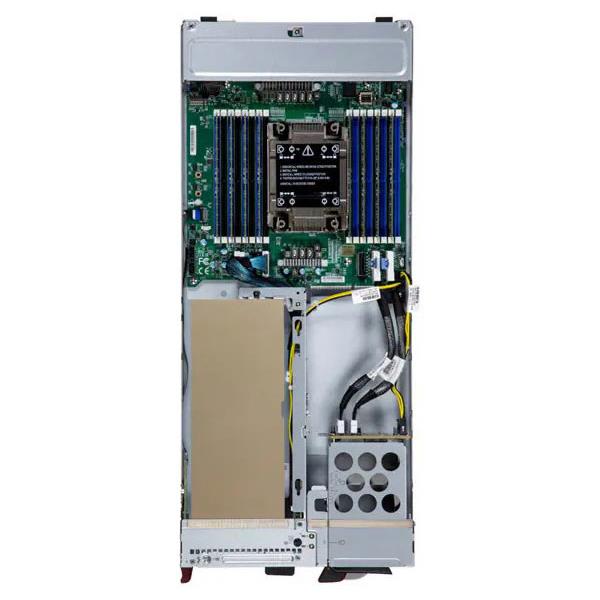

Ready to Ship - Supermicro SBI-612B-1NE34-01-G2 Superblade Sled System
Complete SuperBlade Sled System SBI-612B-1NE34-01-G2
Components installed: CPU: 1x Intel Xeon 6517P (16C/3.2GHz) per node, Memory: 4x 32GB DDR5-6400 per node, Storage: 1x 1.92TB M.2 NVMe Solid-state Drive (SSD) per node, NIC: 1x Dual 25Gbe SFP28 per node
Key Applications
Enterprise Applications
High Performance Computing
Engineering/scientific research
Cloud, virtualization, financial, EDA
Key Features
70 servers per 42U rack
Single Socket E2 (LGA-4710), Intel Xeon 6700/6500-series processors with P-cores or E-cores; Single Socket LGA-4710 (Socket E2) supported
Up to 4TB DDR5ECC RDIMM/3DS-RDIMM, with speed 6400MT/s (1DPC) or 5200MT/s (2DPC) in 16 DIMM slots
4 Hot-swap E3.S SSD (PCIe Gen5)
Dual-port 25G Ethernet (LOM)
Expansion slot for Ethernet mezzanine card and for a standard PCIe card
Liquid cooling solution is available
Extra Specifications for Ready to Ship - Supermicro SBI-612B-1NE34-01-G2 Superblade Sled System
| Main Specifications | ||
| Device Type | SuperBlade Sled | |
| Built-in Devices | MBD-B14SBE-CPU-25G | |
| Dimensions (WxDxH) | Height 1.7" x Width 9.83" x Depth 24" | |
| Weight | 6.2 lbs | |
| Enclosure Color | Metalic Silver with Black Drive Bays | |
| Processor | ||
| Processor Installed | 1x Intel xeon 6517P (16C/3.2GHz) per node | |
| System Memory | ||
| Memory Installed | 4x 32GB DDR5-6400 per node | |
| Drive Bays | ||
| Hard Drive Installed | 1x 1.92TB M.2 NVMe Solid-state Drive (SSD) per node | |
| On-Board Devices | ||
| Network Card Installed | 1x Dual 25Gbe SFP28 per node | |
| Chipset (per Node) | System on Chip | |
| MGMT/Security (per Node) | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust | |
| Graphics (per Node) | Aspeed AST2600 | |
| GPU | ||
| Max GPU Count (per Node) | Up to 1 double-width or 2 single-width GPU(s) | |
| Input / Output | ||
| NVMe (per Node) | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) | |
| TPM | 1 TPM Header | |
| System BIOS | ||
| BIOS Type | AMI 256Mb SPI Flash EEPROM | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | Power LED, UID, Network Activity LED, Fault LED | |
| Expansion Slots | ||
| Expansion Slots (per node) | 2 PCIe Gen5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards | |
| Expansion / Connectivity | ||
| Drive Bays / Storage (per Node) | 4 Hot-swap E3.S drive bays | |
| 1 M.2 2280 | ||
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
