| Product SKUs |
| Product SKUs | SYS-212GB-FNR |
| Motherboard |

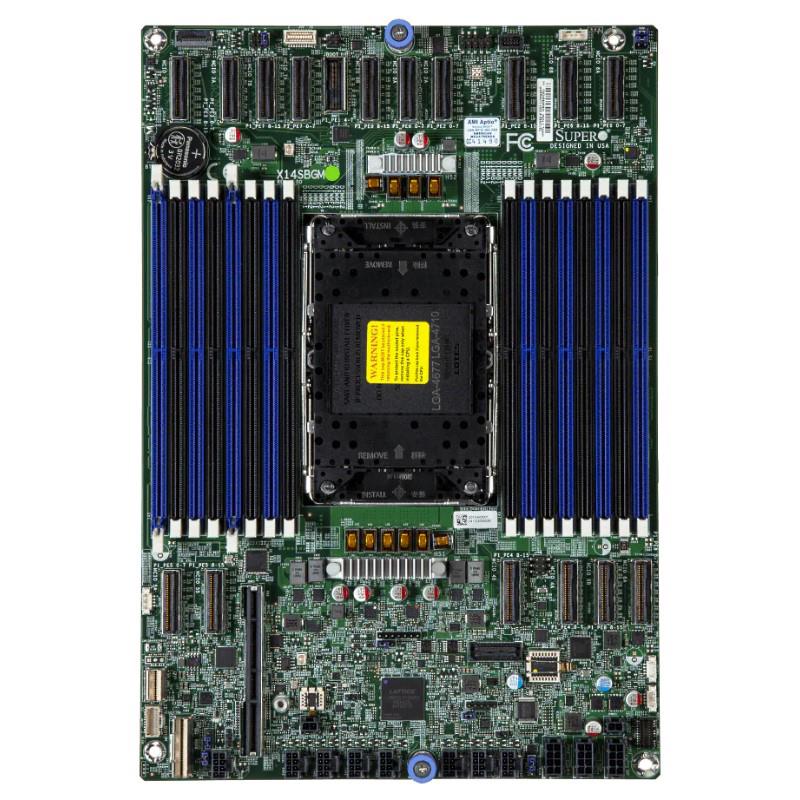

| Motherboard | Super X14SBGM |
| Processor |
| CPU | Single Socket E2 (LGA-4710) |
| Intel® Xeon® 6700-series processors with P-cores |
| Core Count | Up to 80C/160T |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 4 double-width GPUs |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Server Edition, H200 NVL (141GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® Bridge (optional) |
| System Memory |
| Memory | View Memory Options |
| Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM |
| Slot Count: 16 DIMM slots/8 Channels |
| Max Memory (2DPC): Up to 2TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB | 1 USB 3.0 Type-A port(Rear) |
| Video | 1 mini-DP port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Plug-ins for 3rd Party Software |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8+4 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-MG204-R000NDFP |
| Dimensions and Weight |
| Height | 3.43" (87 mm) |
| Width | 17.3" (438.4 mm) |
| Depth | 35.43" (900 mm) |
| Package | 11.02" (H) x 27.56" (W) x 47.24" (D) |
| Weight | Gross Weight: 84 lbs (38 kg) |
| Net Weight: 66 lbs (30 kg) |
| Available Color | Silver |
| Front Panel |
| LED | HDD activity |
| Buttons | Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 4 bays 4 front hot-swap E1.S NVMe drive bays |
| 4 front hot-swap E1.S NVMe drive bays |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| System Cooling |
| Fans | Up to 6x 6cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
| Environmental / Recycling |
| Recycle | Return Server-End of Life Product |
