| Product SKUs |
| Product SKUs | SYS-212D-72C-FN8P |
| Motherboard |

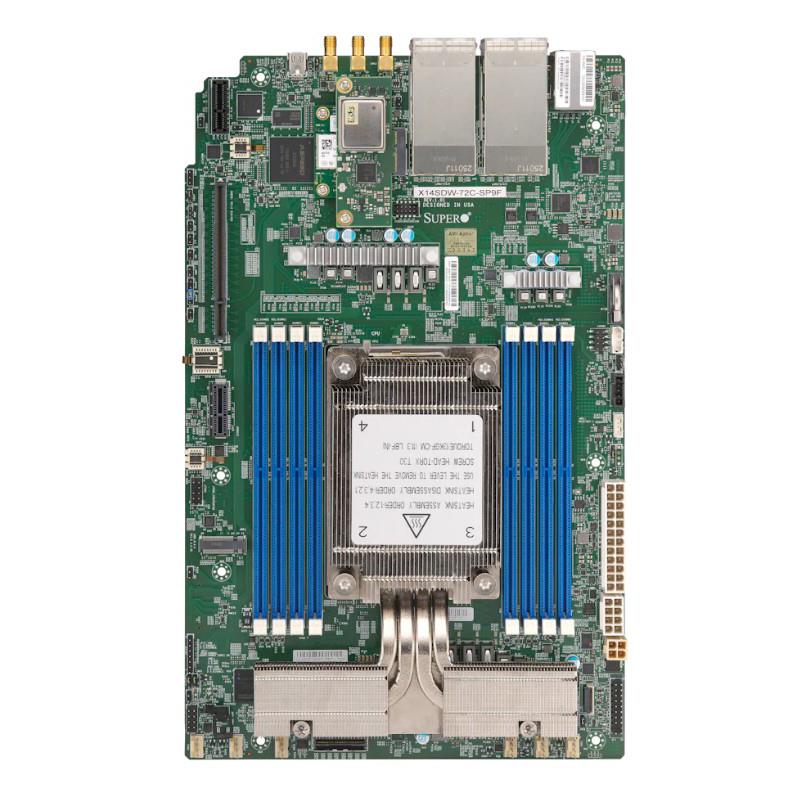

| Motherboard | Super X14SDW-72C-SP9F |
| Processor |
| CPU | Intel® Xeon® 6 SoC |
| Core Count | 72C/144T |
| Note | Supports up to 325W TDP CPUs (Air Cooled) |
| System Memory |
| Memory | Slot Count: 8 DIMM slots/8 Channels |
| Max Memory (1DPC): 1TB 6400MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | 8 SFP28 25GbE with Intel® SoC |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port (Intel® I210-IT) (IPMI shared on LAN port 1) |
| 8 SFP28 25 GbE LAN ports (Intel® SOC) (IPMI shared on LAN port 1) |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| Video | 1 Mini-DP port(Front) |
| TPM | 1 TPM header |
| 1 TPM Onboard/port 80 |
| Others | 1 Dry contact (4 sets) port |
| 3 SMA (GNSS / 10MHz out / 1PPS out / 10MHz in / 1PPS in) ports |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support, PEPI |
| Chassis |
| Form Factor | 2U Rackmount |
| Model | CSE-221M2-R000NDP |
| Dimensions and Weight |
| Height | 3.5" (89 mm) |
| Width | 17.2" (437 mm) |
| Depth | 15.79" (401.1 mm) |
| Package | 10.47" (H) x 28.35" (W) x 21.85" (D) |
| Weight | Gross Weight: 19.84 lbs (9 kg) |
| Net Weight: 13.23 lbs (6 kg) |
| Available Color | Black |
| Front Panel |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD activity |
| System information |
| Buttons | UID button |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 2 bays 2 internal fixed 2.5" PCIe 4.0 x4 NVMe drive bays |
| 2 internal fixed 2.5" PCIe 4.0 x4 NVMe drive bays |
| M.2 | 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default); VROC required for RAID) |
| System Cooling |

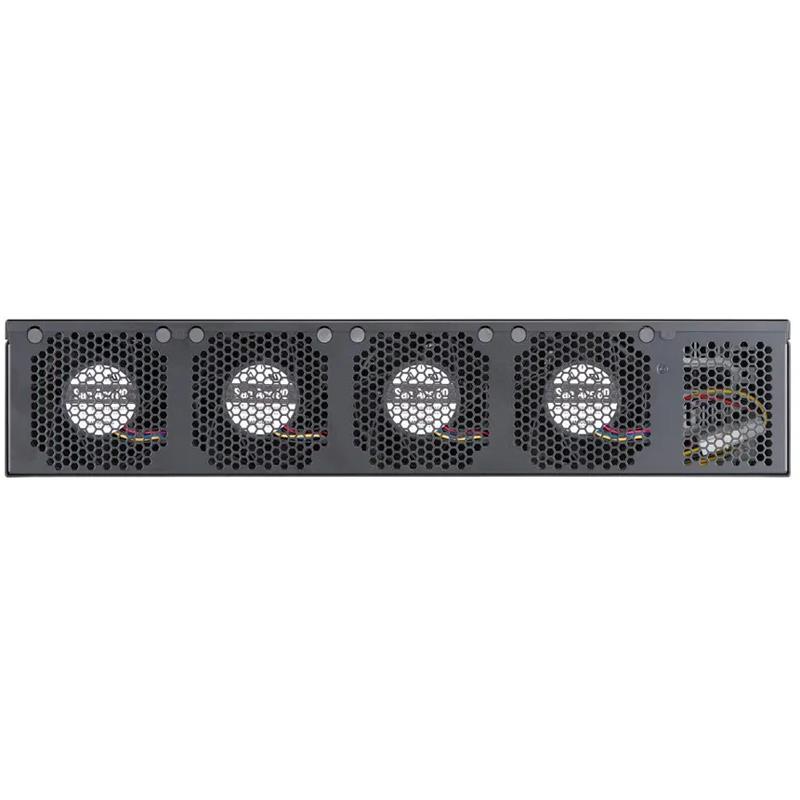

| Fans | Up to 4x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 1 Air Shroud |
| Operating Environment |
| Environmental Spec. | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 40°C (32°F to 104°F) |
