  2. Supermicro ARS-221GL-NHIR 2U GPU Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs
Supermicro ARS-221GL-NHIR 2U GPU Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs
Supermicro ARS-221GL-NHIR GPU 2U Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs
Supermicro ARS-221GL-NHIR GPU 2U Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs
Supermicro ARS-221GL-NHIR GPU 2U Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs
Supermicro ARS-221GL-NHIR GPU 2U Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs

Supermicro ARS-221GL-NHIR 2U GPU Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs

  • High Performance Computing

  • AI/Deep Learning Training and InferenceLarge

  • Language Model (LLM) and Generative AI

High-Density 2U 1-Node GPU SuperServer, Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs. Onboard Memory, Up To 960GB ECC LPDDR5X, Additional GPU Memory: Up to 288GB ECC HBM3e. Chipset: System on Chip, On-Board: E1.S NVMe. Drive Bays / Storage: 3 Front Fixed E1.S NVMe Drive Bays, 2 M.2 NVMe Slots (M-Key). Network Connectivity: Via AOC, 1 RJ45 1 GbE Dedicated BMC LAN Port. 1 Port (Rear), 1 mini-DP Port. 4x 2000W Power Supplies - (CSE-MG202TS-R000NDFP + Super G2DMH-GI) - ARS-221GL-NHIR

$ 6,976.00$ 6,976.006976.0USD

$ 6,976.00

Option not available

PreOrder
103 lb

    This combination does not exist.

    Add to Cart

    • High-density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs

    • NVIDIA NVLink high-speed interconnect between both GH200 Super Chips

    • NVIDIA Grace Hopper Superchip (Grace CPU and H100 GPU)

    • NVLink Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s

    • Up to 1248GB of coherent memory (system as a whole), including 960GB LPDDR5X and 288GB of HBM3e for LLM applications

    • 4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards

    • 6 Heavy Duty Fans with Optional Speed Control

    Extra Specifications for Supermicro ARS-221GL-NHIR 2U GPU Barebone Two Integrated NVIDIA H100 GPUs And Two 72-core Arm Neoverse V2 CPUs

    Main Specifications
    Device TypeGPU SuperServer

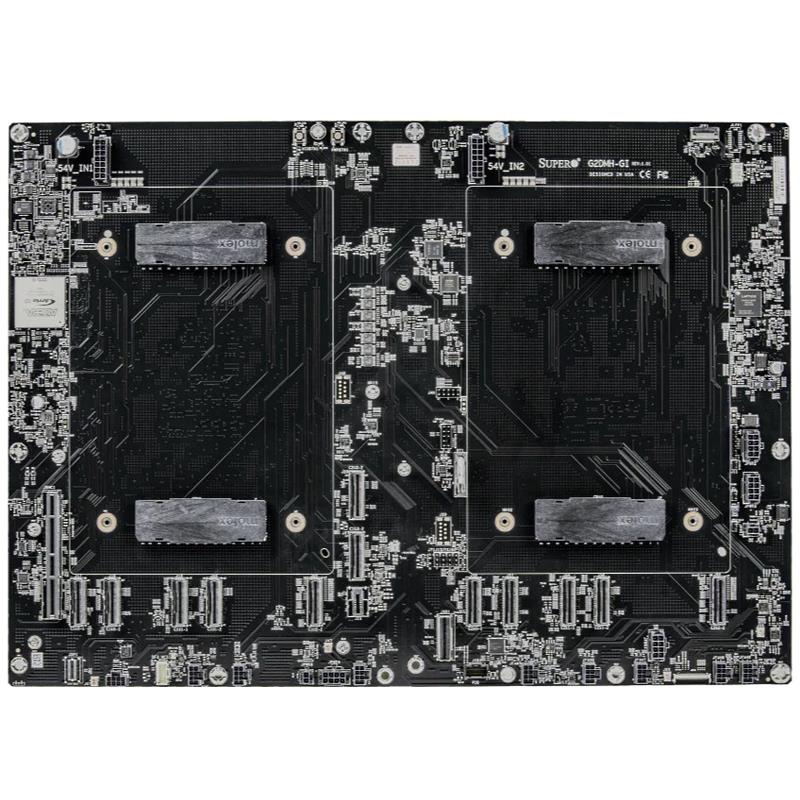

    Built-in DevicesSuper G2DMH-GI
    Form Factor2U Rackmount - CSE-MG202TS-R000NDFP
    Dimensions (WxDxH)Height 3.43" (87 mm) x Width 17.3" (438.4 mm) x Depth 35.43" (900 mm)
    WeightGross Weight: 103 lbs (46.8 kg) - Net Weight: 88 lbs (40 kg)
    Enclosure ColorSilver
    Processor
    Processor InstalledNVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper Superchip
    NoteSupports up to 300W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count2 onboard GPUs
    Supported GPUsNVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper Superchip (Air-cooled)
    CPU-GPU InterconnectNVIDIA NVLink-C2C
    GPU-GPU InterconnectNVIDIA NVLink
    System Memory
    Memory CapacitySlot Count: Onboard Memory
    Up to 960GB ECC LPDDR5X
    Additional GPU Memory: Up to 288GB ECC HBM3e
    Input / Output
    LAN1 RJ45 1 GbE Dedicated BMC LAN port(s)
    Video Output1 mini-DP port(s)
    System BIOS
    BIOS TypeAMI 64MB UEFI
    Management
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    PC Health Monitoring
    CPUMonitors for CPU Cores, Chipset Voltages, Memory
    FANFans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control
    TemperatureMonitoring for CPU and chassis environment, Thermal Control for fan connectors
    Front Panel
    ButtonsPower On/Off button
    LEDsHDD activity
    Expansion / Connectivity
    Expansion Slots Total (Free)3 PCIe 5.0 x16 (in x16) FHFL slots
    1 PCIe 5.0 x4 (in x16) FHFL slot
    M.22 M.2 NVMe slots (M-key)
    Drive Bays / Storage
    Drive Bays Configuration3 front fixed E1.S NVMe drive bays
    System Cooling
    Fans/Air ShroudUp to 6 Removable heavy-duty 6cm Fan(s)
    Power Supply
    Power Supply4x 2000W Redundant (2 + 2) Titanium Level (96%) power supplies
    Environmental
    Operating EnvironmentOperating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Temperature: 10°C to 35°C (50°F to 95°F)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
