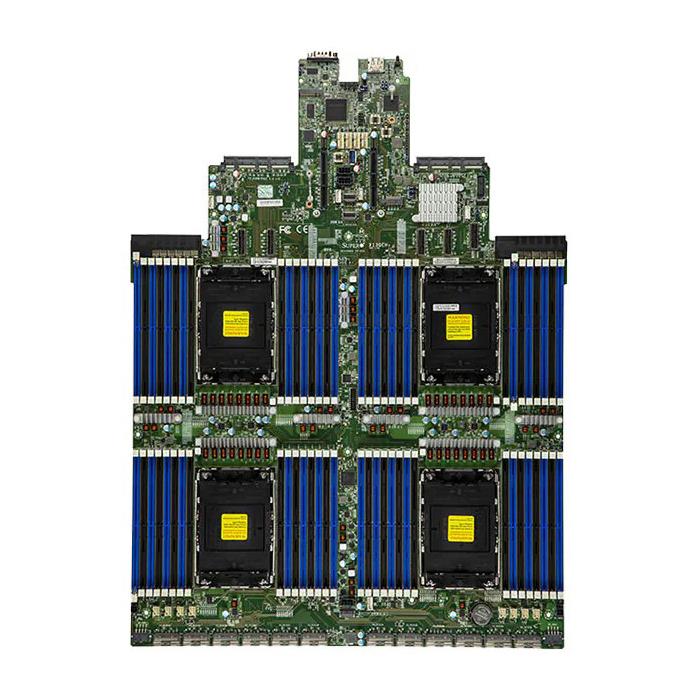

Motherboard Proprietary Supports Quad Socket E (LGA-4677) For Intel Xeon Scalable 4th Generation Processor, Up to 64-Core, Supports Up To 350W TDP CPUs. Up To 16TB ECC DDR5 RDIMM (2DPC), In 64 DIMM Slots. On-Board: SATA / NVMe Hybrid. Chipset: Intel C741. 2 Type-A ports (Rear), 1 COM port (Rear). Optimized Servers: SYS-241H-TNRTTP, SYS-241E-TNRTTP - (MBD-X13QEH+)
1. 4th Gen Intel® Xeon® Scalable processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Intel C741® Chipset
3. Up to 16TB 3DS RDIMM/RDIMM DDR5 (288-pin) ECC memory with speeds up to 4800Mhz in 64 DIMMs. Up to 16TB PMem 300 Series Memory
4. 2 PCIe 5.0 x 16 via Riser Card
5. 1 PCIe 5.0 x16 and 1 PCIe 5.0 x8 via Riser Card
6. 17 MCIO PCIe 5.0 x8 connectors for 24 NVMe SSDs via Riser Card
7. 2 Nvme PCIe 3.0 x4/SATA 2.0 Hybrid M.2 ports
8. 8 SATA 3.0 or 24 NVMe SSDs via Riser Card
9. 1 MP
| Product SKUs | ||
| Product SKUs | MBD-X13QEH+ | |
| Physical Stats | ||
| Form Factor | Proprietary | |
| Dimension | 16.8" x 22.87" (426.72cm x 580.9cm) | |
| Processor | ||
| CPU | 4th Gen Intel® Xeon® Scalable processors | |
| Quad Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP | ||
| Core | Up to 60 cores | |
| System Memory | ||
| Memory Capacity | 64 DIMM slots | |
| Up to ECC RDIMM, DDR5-4800MHz | ||
| Memory Type | 4800/4400/4000 MT/s ECC DDR5 RDIMM Up to 256GB of memory with speeds of up to 4400MT/s (2DPC) | |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB | |
| 16GB, 32GB, 64GB, 128GB, 256GB | ||
| Memory Voltage | 1.1V | |
| Error Detection | Corrects single-bit errors | |
| Detects double-bit errors (using ECC memory) | ||
| On-Board Devices | ||
| Chipset | Intel® C741 | |
| Network Controllers | N/A | |
| Input / Output | ||
| USB | 2 USB port(s) (2 rear type A) | |
| Serial Port | 1 COM Port(s) (1 rear) | |
| Expansion Slots | ||
| PCIe | N/A | |
| System BIOS | ||
| BIOS Type | AMI 64MB AMI UEFI | |
| BIOS Features | Plug and Play (PnP) | |
| ACPI 6.4 | ||
| PCI FW 3.2 | ||
| SMBIOS 2.8/3.5 | ||
| UEFI 2.8A | ||
| Management | ||
| Software | SuperDoctor® 5, SPM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM) | |
| PC Health Monitoring | ||
| Voltage | System temperature, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support, +3.3V standby, Veore, Vmem, Peripheral temperature, Platform Environment Control Interface (PECI)/(TSI), Fan speed control | |
| FAN | 8x 4-pin fan headers (up to 8 fans) | |
| Operating Environment | ||
| Operating Temperature Range | 10°C - 35°C (50°F - 95°F) | |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) | |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) | |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) | |
| Warranty: | 3 years labor, 1 year parts, 120 days advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 120 days, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
