| Product SKUs |

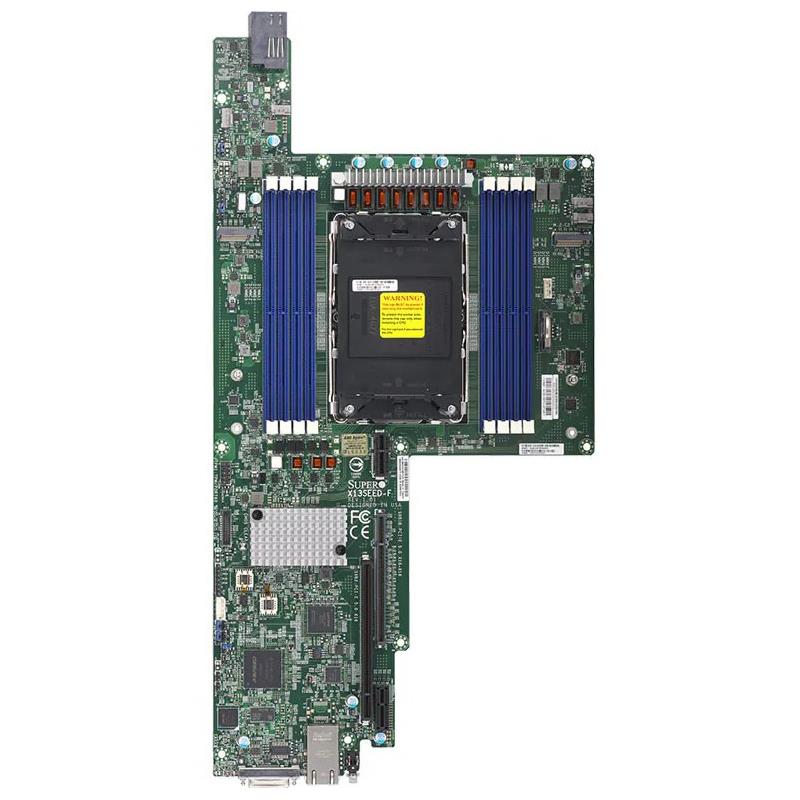

| Product SKUs | MBD-X13SEED-F |
| Physical Stats |
| Form Factor | Proprietary |
| Dimension | 16.36" x 8.53" (41.56cm x 21.66cm) |
| Processor |
| CPU | 4th Gen Intel® Xeon® Scalable processors |
| Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP |
| Core | Up to 60 cores |
| System Memory |
| Memory Capacity | 8 DIMM slots |
| Up to 2TB 3DS ECC RDIMM, DDR5-4800MHz |
| Memory Type | 4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4800MHz (1DPC) |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | Intel® C741 |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Single LAN with Intel® i210 Gigabit Ethernet Controller |
| Input / Output |
| USB | 2 USB 2 port(s) (2 type A Via KVM connector) |
| Video Output | 1 VGA port(s) Via KVM connector |
| Serial Port | 1 COM Port(s) (1 Serial Port Via KVM connector) |
| TPM | 1 TPM Header & Chip both |
| Expansion Slots |
| PCIe | 1 PCIe 5.0 x16 Right Riser Slot, support LP PCIe card, |
| 2 PCIe 5.0 x16 Left Riser Slot, support FHHL PCIe card |
| M.2 | Key: M-Key |
| Form Factor: 2280/22110 |
| M.2 Interface: 2 PCIe 5.0 x4 |
| System BIOS |
| BIOS Type | 32MB AMI UEFI |
| BIOS Features | Plug and Play (PnP) |
| ACPI 6.4 |
| PCI FW 3.2 |
| SMBIOS 2.8/3.5 |
| UEFI 2.8A |
| Management |
| Software | SuperDoctor® 5, Intel® Node Manager, SPM, SUM, SSM, Watchdog, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM) |
| System Management Software | IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, 4 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages, +3.3V standby |
| LED | UID/Remote UID |
| Power LED |
| BMC/IPMI Heartbeat LED |
| Power fail / Fan fail / Overheat LED Indication |
| Temperature | CPU thermal trip support |
| PECI |
| FAN | Fan speed control |
| 4x 4-pin fan headers (up to 4 fans) |
| 4 fans with tachometer monitoring |
| Other Features | M.2 NGFF connector |
| CPU thermal trip support for processor protection |
| Control of power-on for recovery from AC power loss |
| Node Manager Support |
| ACPI power management |
| Operating Environment |
| Operating Temperature Range | 0°C - 55°C (32°F - 131°F) |
| Non-Operating Temperature Range | -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range | 8% - 90% (non-condensing) |
| Non Operating Relative Humidity Range | 5% - 95% (non-condensing) |
