| Product SKUs |

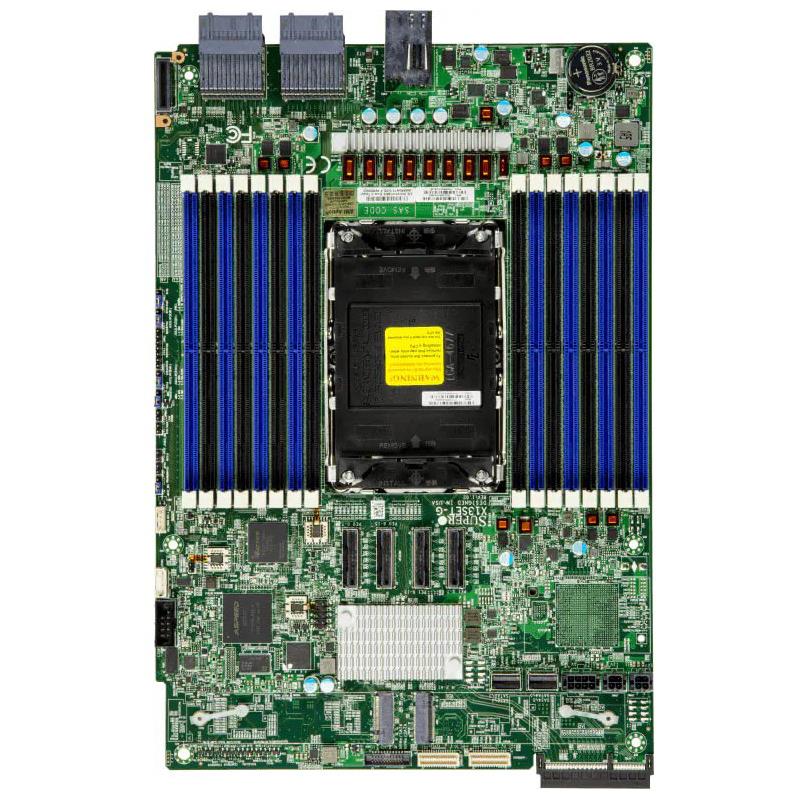

| Product SKUs | MBD-X13SET-G |
| Physical Stats |
| Form Factor | Proprietary GrandTwin |
| Dimension | 8.53" x 12.42" (21.67cm x 31.55cm) |
| Processor |
| CPU | Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP |
| 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors, BIOS 2.1 or above is required to support 5th Gen Intel Xeon Scalable processors |
| Core | Up to 64 cores |
| System Memory |
| Memory Capacity | 16 DIMM slots |
| Max Memory (1DPC): Up to 1TB 5600MT/s ECC DDR5 RDIMM/3DS RDIMM |
| Max Memory (2DPC): Up to 2TB 4400MT/s ECC DDR5 RDIMM/3DS RDIMM |
| DIMM Sizes | RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB |
| 16GB, 32GB, 64GB, 128GB, 256GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel® C741 |
| SATA | 6 SATA (6Gbps) via Intel C741, RAID 0/1/5/10 support, via SlimSAS |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | AIOM for LAN |
| Input / Output |
| Serial Port | 1 COM Port(s) (1 header) |
| TPM | 1 TPM header |
| Expansion Slots |
| PCIe | N/A |
| M.2 | Form Factor: 2280 |
| Key: M-Key |
| M.2 Interface: 2 SATA/PCIe 3.0 x4 |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | ACPI 6.4 |
| SMBIOS 3.5 or later |
| UEFI 2.8 |
| Management |
| Software | SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM) |
| PC Health Monitoring |
| Voltage | VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, +5V standby, +5V, +3.3V, +12V |
| LED | UID/Remote UID |
| CPU / System Overheat LED |
| Temperature | Monitoring for CPU and chassis environment |
| CPU thermal trip support |
| Thermal Monitor 2 (TM2) support |
| PECI |
| FAN | Fan speed control |
| 1x 4-pin fan header (up to 1 fan) |
| Other Features | WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, ACPI power management |
