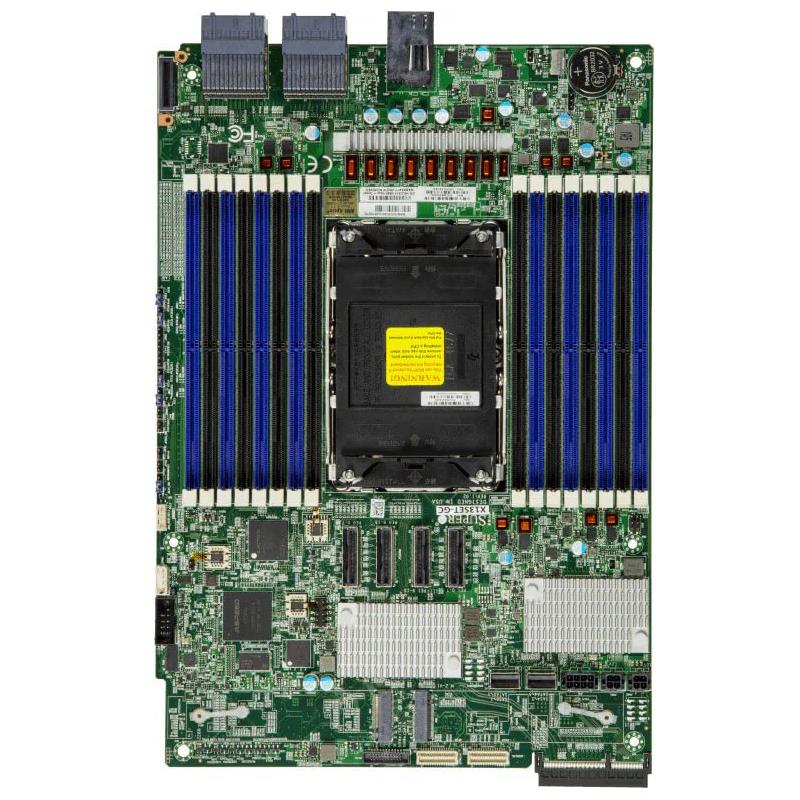

Supermicro X13SET-GC X13 UP GrandTwin Server Motherboard Proprietary GrandTwin Single Socket E Intel Xeon Scalable 5th/4th Generation Processors

Motherboard Proprietary GrandTwin Support Single Socket E (LGA-4677) For Intel Xeon Scalable 5th/4th Generation Processors (BIOS 2.1 Or Above Is Required To Support 5th Gen Intel Xeon Scalable Processors), Up To 64-Core, Supports Up To 350W TDP CPUs. Up To 4TB 4400MT/s ECC DDR5 RDIMM/3DS RDIMM (2DPC), In 16 DIMM Slots. Chipset: Intel C741. On-Board: Boardcom 3808 Controller For 6 SAS3 Drives. Flexible Data LAN (AIOM). Others: 1 COM Port (Header), 1 TPM Header. Includes 1 PCIe 5.0 X8 Via Customized 124-Pin Slim Cool Edge Connector (For Front I/O Module), 2 PCIe 5.0 X16 Via Molex Impleplus Connectors, 4 PCIe 5.0 X8 Via MCIO Connectors, 2 M.2 PCIe 3.0 X4 SATA Slots (M-Key 2280). Optimized Servers: SYS-211GT-HNC8F, SYS-211GT-HNC8R - (MBD-X13SET-GC)

1. 5th/4th Gen Intel® Xeon® Scalable processors, Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
2. Intel C741® Chipset
3. Up to 4TB 3DS ECC RDIMM, DDR5-5600MT/s (1DPC) or DDR5-4400MT/s (2DPC) in 16 DIMM slots
4. 1 PCIe 5.0 x8 via customized 124-pin slim cool edge connector(for front I/O module)
5. 2 PCIe 5.0 x16 via Molex Impleplus connectors
6. 4 PCIe 5.0 X8 via MCIO connectors
7. Boardcom 3808 controller for 6 SAS3 drives
8. I/O: 1 COM, TPM header
9. M.2 Interface: 2 PCIe 3.0x4&SATAM.2 Form Factor: 2280M.2 Key: M-Key

Extra Specifications for Supermicro X13SET-GC X13 UP GrandTwin Server Motherboard Proprietary GrandTwin Single Socket E Intel Xeon Scalable 5th/4th Generation Processors

Product SKUs
Product SKUs	MBD-X13SET-GC
Physical Stats
Form Factor	Proprietary GrandTwin
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)
Processor
CPU	4th Gen Intel® Xeon® Scalable processors
	Single Socket LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Core	Up to 60 cores
System Memory
Memory Capacity	16 DIMM slots
	Up to 4TB 3DS ECC RDIMM, DDR5-4800MHz
Memory Type	4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 4400MT/s (2DPC)
DIMM Sizes	RDIMM: 16GB, 32GB, 64GB, 128GB, 256GB
	16GB, 32GB, 64GB, 128GB, 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors
On-Board Devices
Chipset	Intel® C741
SAS	Broadcom 3808 SAS3 controller for 6 SAS3 (12 Gbps) ports
IPMI	ASPEED AST2600 BMC
Network Controllers	AIOM for LAN
Input / Output
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM header
Expansion Slots
PCIe	N/A
M.2	Form Factor: 2280
	Key: M-Key
	M.2 Interface: 2 SATA/PCIe 3.0 x4
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.4
	SMBIOS 3.5 or later
	UEFI 2.8
Management
Software	SuperDoctor® 5, SPM, SUM, SSM, IPMICFG, IPMIView for Linux/Windows, SMCIPMITool, Trusted Platform Module (TPM)
PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID
	CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment
	CPU thermal trip support
	Thermal Monitor 2 (TM2) support
	PECI
FAN	Fan speed control
	1x 4-pin fan header (up to 1 fan)
Other Features	WOL, UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, ACPI power management

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
