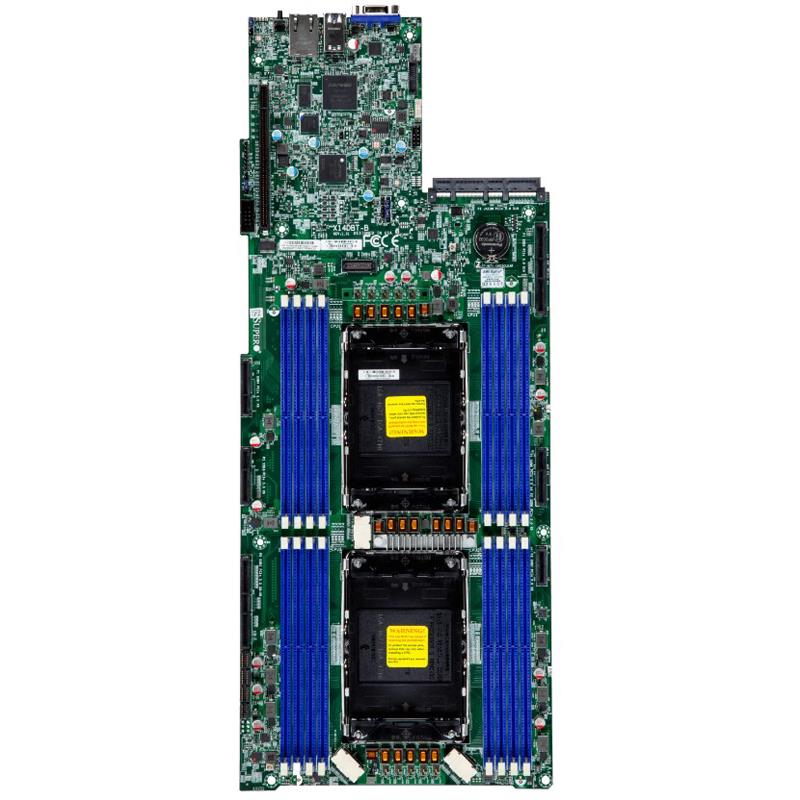

Supermicro X14DBT-B X14 DP BigTwin Server Motherboard Proprietary Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores

Motherboard Proprietary Supports Dual Socket E2 (LGA-4710) For Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores (BIOS 1.2 Or Above Is Required To Support Intel Xeon 6700/6500-Series Processors With P-Cores), Up To 144-Core, Supports Up To 350W TDP CPUs. Up To 2TB 6400MT/s ECC DDR5 RDIMM (1DPC) Or Up To 1TB 8000MT/s ECC DDR5 MRDIMM (P-core Only), In 16 DIMM Slots. Supports NVMe / SAS SSDs. Flexible Data LAN (AIOM), 1 RJ45 1 GBASE-T Dedicated IPMI LAN Port (ASPEED AST2600 BMC). Others: 2 USB 3 Type-A Ports (Rear), 1 VGA Port, 1 COM Port, 1 TPM 2.0 Header. Includes 1 PCIe 5.0 X16 Left Riser Slot, 1 PCIe 5.0 X16 Right Riser Slot, 1 PCIe 5.0 X16 AIOM Slot, OCP 3.0 Compliant, 1 PCIe 5.0 X16 (In X16) Slot, For NVMe SCC Storage Card, 1 PCIe 5.0 X8 Slot, For NVMe SCC Storage Card, 1 PCIe 5.0 X8 Slot, For SAS SCC Storage Card, 1 PCIe 5.0 X8 Slot, For M.2 Adapter To Support RAID Two NVMe M.2 Devices, 3 PCIe 5.0 X8 Slots, For Cabling To SCC Storage Card, 1 PCIe 5.0 X4 (In X16) Slot, 2 PCIe 5.0 X8 (In X16) Slots, For M.2 Adapter To Support Two NVMe M.2 Devices, 4 M.2 PCIe 5.0 x4 slots (M-key 22110). Optimized Servers: SYS-222BT-HNC8R, SYS-222BT-HNC9R, SYS-622BT-HNC8R, SYS-222BT-HNR, SYS-622BT-DNC8R, SYS-222BT-DNR, SYS-222BT-HER, SYS-222BT-HNR-LCC - (MBD-X14DBT-B)
