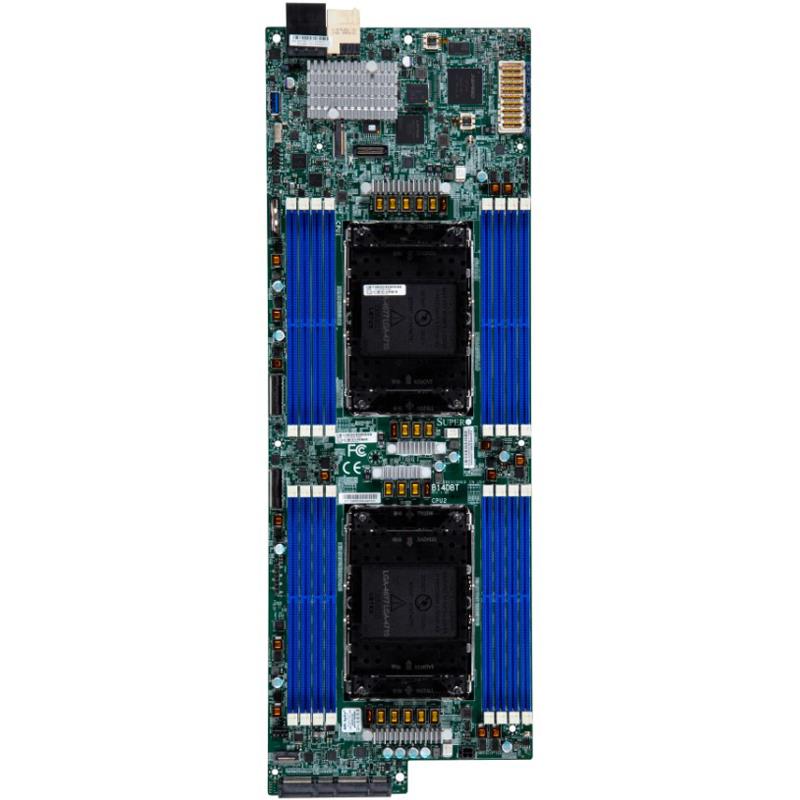

Supermicro B14DBT X14 DP SuperBlade Server Motherboard Proprietary Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores

Supermicro B14DBT X14 DP SuperBlade Server Motherboard Proprietary Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores

  • Offers two PCIe 5.0 x8 MCIO ports for NVMe connectivity

  • Includes one PCIe 5.0 x4 M.2 slot, M-Key, Form Factor: 2280

  • Handles up to 4TB ECC DDR5 RDIMM memory in 16 DIMM slots

  • Supports dual Intel Xeon 6700/6500-series processors with P-cores or E-cores

Motherboard Proprietary Supports Dual Socket E2 (LGA-4710) For Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores, Up To 144-Core, Supports Up To 350W TDP CPUs. Up To 1TB MRDIMM 8000 MT/s (1DPC) Or Up To 4TB RDIMM (3DS) 6400 MT/s (1DPC), In 16 DIMM Slots. Supports NVMe / SAS. LAN Ports: Dual 25G LAN With Intel E810. Others: 1 USB 3.1 Gen1 Type-A Port, 1 TPM Onboard. Includes 1 PCIe 5.0 X16 AIOM Slot, 2 PCIe 5.0 X8 Via MCIO Connector Slots, 1 M.2 PCIe 5.0 X4 Slot (M-Key 2280). Optimized Servers: SBI-422B-1NE14, SBI-422B-5NE14 - (MBD-B14DBT)

Contact us for volume discounts

    This combination does not exist.

    InStock
    3 lb
    Email For Price

    1. Intel Xeon 6700/6500-series processors with P-cores or E-cores, dual Socket LGA-4710 (Socket E2) supported, CPU TDP supports Up to 350W TDP

    2. Up to 1TB MRDIMM with speeds up to 8000 MT/s (1DPC) or 4TB of RDIMM(3DS) with speeds up to 6400 MT/s (1DPC)

    3. 2 PCIe 5.0 x8 via MCIO connectors

    4. 1 PCIe 5.0 x16 AIOM connector

    5. 1 PCIe 4.0 x16 Mezzanine connector

    6. M.2 Interface: 1 PCIe 5.0 x4 M.2 Form Factor: 2280 M.2 Key: M-Key

    7. Dual 25G LAN with Intel E810

    8. Onboard TPM2.0

    Extra Specifications for Supermicro B14DBT X14 DP SuperBlade Server Motherboard Proprietary Dual Socket E2 (LGA-4710) Intel Xeon 6700/6500 Series Processors With P-Cores Or 6700 Series Processors With E-Cores

    Main Specifications
    Device TypeMotherboard
    Form FactorProprietary
    Dimensions (WxDxH)18.23" x 6.3" (46.3cm x 16cm)
    Processor
    Compatible ProcessorsIntel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
    Compatible SocketDual Socket E2 (LGA-4710), Up to 350W TDP
    Core CountUp to 144C
    System Memory
    Memory CapacitySlot Count: 16 DIMM Slots, Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
    DIMM SizesMRDIMM (P-core only):32GB, 64GB
    RDIMM:16GB, 32GB, 64GB, 128GB, 256GB
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    Network ControllersDual LAN with Intel Ethernet Controller E810-XXVAM2
    Input / Output
    USB(s)1 USB 3.1 Gen1 Type-A port(s)
    TPM1 TPM onboard
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 5.0 x16 AIOM slot
    2 PCIe 5.0 x8 via MCIO Connector slots
    M.21 M.2 PCIe 5.0 x4 slot (M-key 2280)
    System BIOS
    BIOS TypeAMI 64MB UEFI
    BIOS FeaturesACPI 6.5; SMBIOS 3.7 or later; UEFI 2.9
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+12V,+3.3V,+5V,+5V standby,Monitors CPU voltages,Supports system management utility,System level control,VBAT
    LEDCPU/system overheat LED, UID/remote UID LED
    TemperatureCPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support
    FAN1x 4-pin fan header (up to 1 fan), Fan speed control
    Other FeaturesACPI power management Chassis intrusion detection Control of power-on for recovery from AC power loss M.2 NGFF connector UID

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
