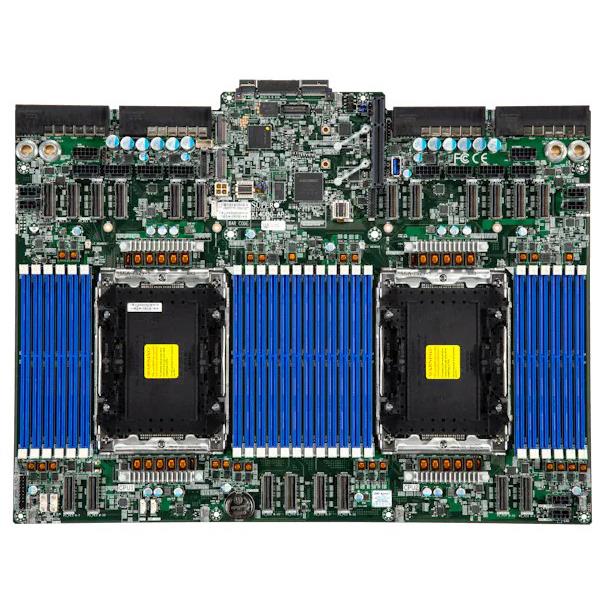

Supermicro X14DBG-AP X14 DP GPU Server Motherboard Proprietary Dual Socket BR (LGA-7529) Intel Xeon 6900 Series Processors

Supermicro X14DBG-AP X14 DP GPU Server Motherboard Proprietary Dual Socket BR (LGA-7529) Intel Xeon 6900 Series Processors

  • Supports dual Intel Xeon 6900 series Processors

  • Offers twenty PCIe 5.0 x8 MCIO ports for NVMe connectivity

  • Handles up to 6TB ECC DDR5 M/RDIMM memory in 24 DIMM slots

  • Includes two PCIe 5.0 x4 M.2 slots, M-Key, Form Factor: 2280/22110

Motherboard Proprietary Supports Dual Socket BR (LGA-7529) For Intel Xeon 6900 Series Processors, Up to 128-Core, Supports Up To 500W TDP CPUs. Up To 6TB 6400MT/s ECC DDR5 RDIMM (1DPC) Or Up To 6TB 8800MT/s ECC DDR5 MRDIMM (1DPC), In 24 DIMM Slots. On-Board: NVMe. LAN Ports: Flexible Data LAN (AIOM). Others: 1 TPM 2.0 Onboard. Includes 1 PCIe 5.0 X16 AIOM Slot, 20 PCIe 5.0 X8 Via MCIO Connector Slots, 1 PCIe 5.0 X8 Slot, 2 M.2 PCIe 5.0 X4 Slots (M-Key 2280/22110). Optimized Servers: SYS-522GA-NRT, SYS-422GA-NRT - (MBD-X14DBG-AP)

Contact us for volume discounts

    This combination does not exist.

    InStock
    3 lb
    Email For Price

    1. Intel Xeon 6900 series processors with P-cores, Dual Socket LGA-7529 (Socket BR) supported, CPU TDP supports Up to 500W

    2. Support DDR5 6400MT/s in 24 DIMM slots

    3. 20 PCIe 5.0 x8 MCIO connectors

    4. 1 PCIe 5.0 x8 slot for IO riser card

    5. 2 M.2 PCIe5.0 x4

    6. 1 AIOM slot

    Extra Specifications for Supermicro X14DBG-AP X14 DP GPU Server Motherboard Proprietary Dual Socket BR (LGA-7529) Intel Xeon 6900 Series Processors

    Main Specifications
    Device TypeMotherboard
    Form FactorProprietary
    Dimensions (WxDxH)17" x 14.95" (43.18cm x 37.97cm)
    CPU TDPSupports up to 500W TDP CPUs
    Processor
    Compatible ProcessorsIntel Xeon 6900 series Processors
    Compatible SocketDual Socket BR (LGA-7529)
    Core CountUp to 128C
    System Memory
    Memory CapacitySlot Count: 24 DIMM slots
    Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
    Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
    Memory Voltage1.1V
    Error DetectionCorrects single-bit errors, Detects double-bit errors (using ECC memory)
    On-Board Devices
    ChipsetSystem on Chip
    TPM1 TPM 2.0 onboard
    Expansion / Connectivity
    Expansion Slots Total (Free)20 PCIe 5.0 x8 MCIO connectors
    1 PCIe 5.0 x8 slot for IO riser card
    1 AIOM slot
    M.22 M.2 PCIe 5.0 x4 slots (M-key 2280/22110)
    System BIOS
    BIOS TypeAMI 64MB UEFI
    BIOS FeaturesACPI 6.5, SMBIOS 3.7 or later, UEFI 2.9
    Management
    SoftwareSuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage+12V,+3.3V,+3.3V standby,+5V,+5V standby,ACPI power management,BMC/IPMI Heartbeat LED,DIMM temperature,GPUtemperature,Low noise fan speed control,Monitors CPU Core Voltages,PCH temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,Vcore,Vmem
    FAN4x 4-pin fan headers (up to 4 fans), CPU thermal trip support
    Other FeaturesControl of power-on for recovery from AC power loss

    Warranty:3 years labor, 1 year parts, 120 days advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 120 days, 2 weeks afterward
