| Processor |
| Core Count | Up to 128C/256T; Up to 504MB Cache per CPU |
| CPU | Dual Socket E2 (LGA-4710) |
| Intel® Xeon® 6700/6500 series processors with P-cores |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 quad-width or 2 triple-width or 8 double-width or 10 single-width GPUs |
| CPU-GPU Interconnect | PCIe 5.0 x16 Switch Dual-Root |
| GPU-GPU Interconnect | NVIDIA® NVLink™ Bridge (optional) |
| System Memory |
| Memory Voltage | 1.1V |
| Memory | View Memory Options |
| Slot Count: 32 DIMM slots |
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 4TB 8800MT/s ECC/non-ECC DDR5 MRDIMM (P-core only) |
| Max Memory (2DPC): Up to 8TB 6000MT/s ECC DDR5 RDIMM |
| On-Board Devices |
| Network Connectivity | View AOC Options |
| View AIOM Options |
| 2 RJ45 10GbE with Intel® X710-AT2 |

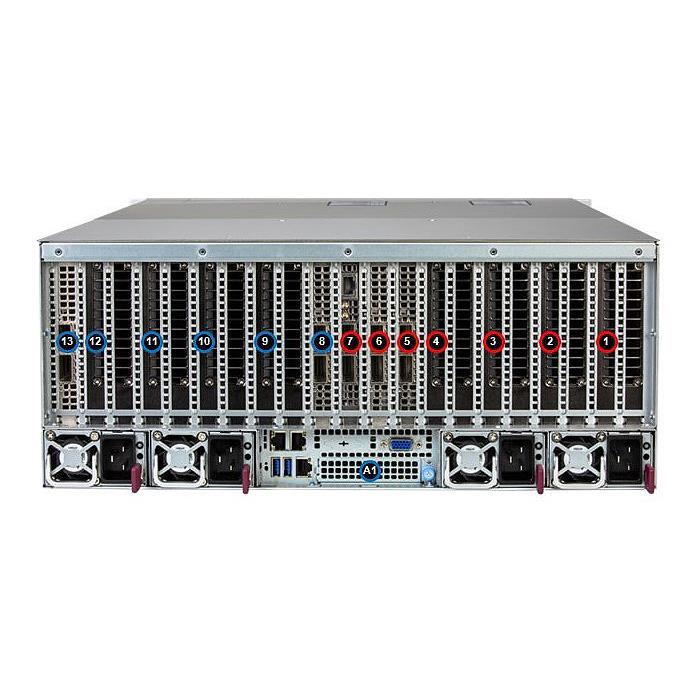

| Input / Output |
| LAN | 2 RJ45 10 GbE LAN ports (Intel® X710) |
| USB | 2 USB 3.0 Type-A ports(Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8+4 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Product SKUs |
| Product SKUs | SYS-422GB-NRT |
| Motherboard |

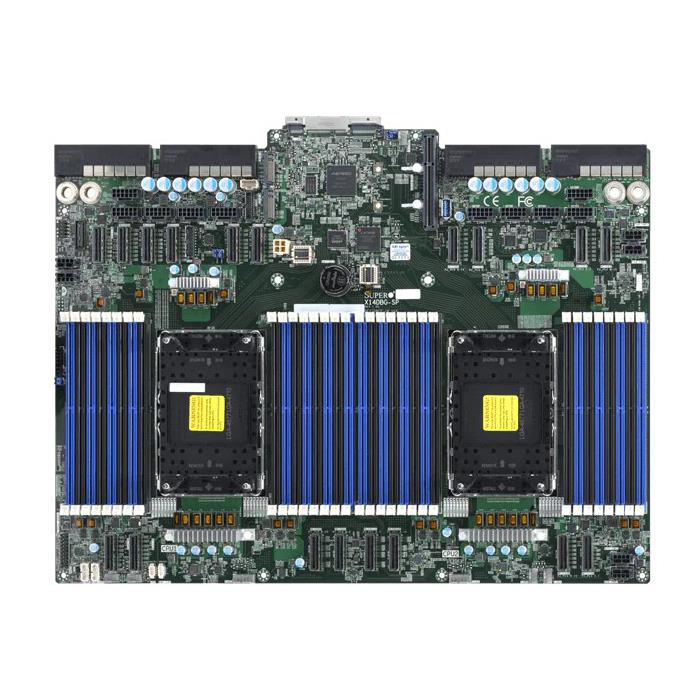

| Motherboard | Super X14DBG-SP |
| Chassis |

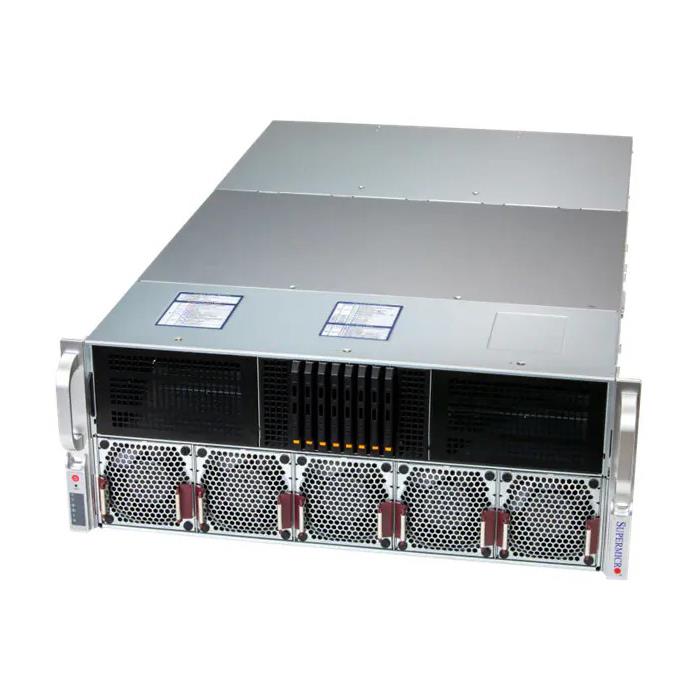

| Form Factor | 4U Rackmount |
| Model | CSE-418G3TS-R6K40P |
| Dimensions and Weight |
| Height | 7" (178 mm) |
| Width | 17.2" (437 mm) |
| Depth | 29" (737 mm) |
| Package | 26.57" (H) x 27" (W) x 41" (D) |
| Weight | Net Weight: 65.5 lbs (29.7 kg) |
| Gross Weight: 100 lbs (45.3 kg) |
| Available Color | Black Front & Silver Body |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| M.2 |
| Drive Bays / Storage |

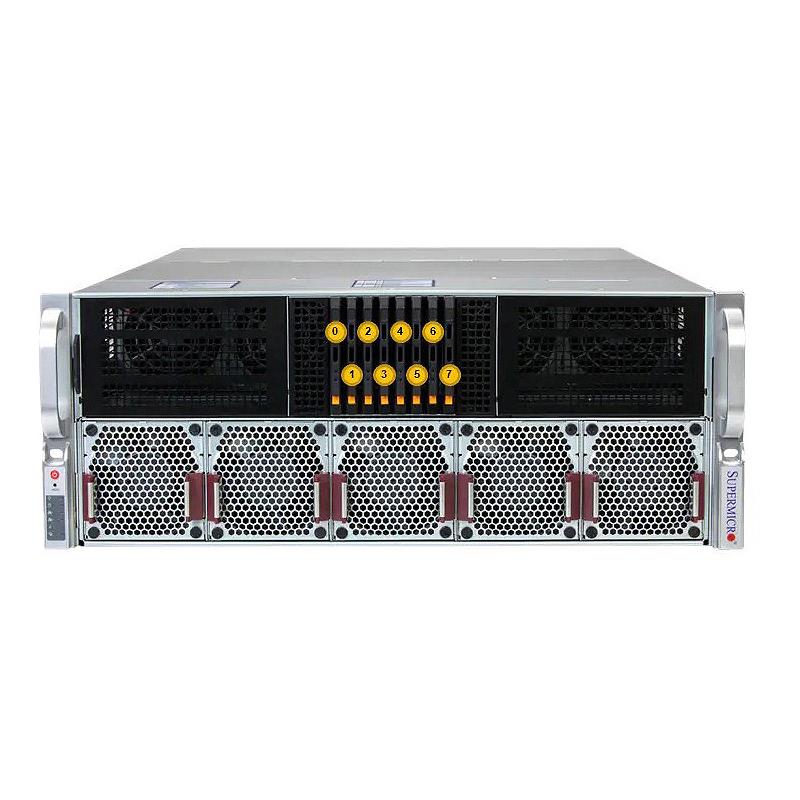

| Drive Bays Configuration | Option A: Total 8 bays 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| 8 front hot-swap E3.S 1T PCIe 5.0 x4 NVMe drive bays |
| Option B: Total 8 bays 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays |
| 8 front hot-swap E3.L 1T PCIe 5.0 x4 NVMe drive bays |

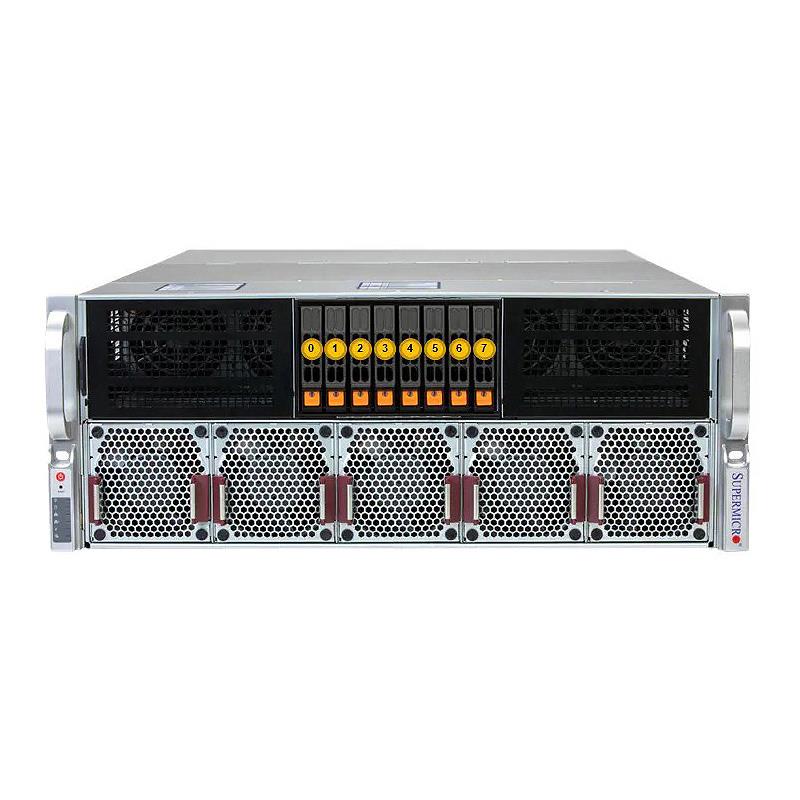

| Option C: Total 8 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays |
| View NVMe Options |
| M.2 | View M.2 Options |
| 2 M.2 NVMe slots (M-key) |
| System Cooling |
| Fans | 10x 8cm heavy duty fans with optimal fan speed control |
| Air Shroud | 4 Air Shrouds |
| Operating Environment |
| ROHS | RoHS Compliant |
| Environmental Spec. | Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 90% (Non-Condensing) |
| Non-operating Relative Humidity: 5% to 95% (Non-Condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
