| Main Specifications |

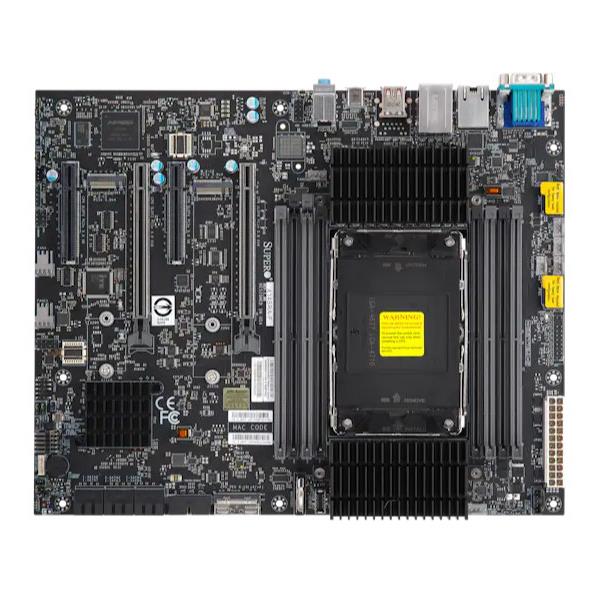

| Device Type | X14 UP Workstation Board |
| Form Factor | ATX |
| Dimensions (WxDxH) | 12" x 9.6" (30.48cm x 24.384cm) |
| Processor |
| Compatible Processors | Intel Xeon 600 Processor for Workstation |
| Compatible Socket | Single E2 (LGA 4710-2) |
| Core Count | Up to 86C |
| Note | Supports up to 350W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 8 DIMM Slots/4 Channels |
| Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 3DS RDIMM |
| Max Memory (1DPC): Up to 2TB 5200MT/s ECC DDR5 3DS RDIMM |
| Max Memory (1DPC): Up to 256GB 8000MT/s ECC DDR5 MRDIMM |
| Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM |
| DIMM Sizes | 3DS RDIMM:256GB |
| RDIMM:16GB, 24GB, 32GB, 48GB, 64GB, 96GB, 128GB, 256GB |
| MRDIMM:32GB, 64GB |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel W890 |
| SATA/SAS | 6 SATA (6Gbps), RAID 0/1/5/10 support |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Single LAN with Intel Ethernet Controller I210-AT |
| Single LAN with Intel PHY I219LM LAN controller for AMT/vPro |
| Audio | 7.1 HD Audio |
| TPM | 1 TPM 2.0 Header, 1 TPM 2.0 onboard |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port(s) (Intel I210-AT) (IPMI shared on LAN port 1) |
| 1 RJ45 1 GbE LAN port(s) (Intel PHY I219LM LAN controller) |
| USB(s) | 1 USB 3.2 Gen2x2 Type-C port(s) (Rear), 4 USB 3.2 Gen2x1 Type-A port(s) (Rear), 1 USB 3.2 Gen2x2 Type-C port(s) (Header), 2 USB 3.2 Gen1 Type-A port(s) (Header), 1 USB 2 Type-A port(s) (Header) |
| Video Output | 1 VGA port(s) (Rear) |
| Serial Port / Headers | 1 COM port(s) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x8 slots, Open rear |
| 2 PCIe 5.0 x16 slots, metal armor protection, support 2 triple/dual/single-width GPU cards |
| 2 PCIe 5.0 x4 (in x8) via MCIO Connector slots, Supports 2 U.2 ports via MCIO cable for 2.5" NVMe SSD drives (hot-plug/BPN not supported), supports Intel VROC 0 &1 (VROC key is required) |
| M.2 | 2 M.2 PCIe 5.0 x4 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP), ACPI 6.5, SMBIOS 3.7 or later, RTC (Real Time Clock) Wakeup, UEFI 2.9, Riser card auto-detection support |
| Management |
| Software | Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), SAA (limited support), SuperO Booster |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN, S4/S5 |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+5V,+5V standby,3.3V standby,CPU,Memory,Vcore,Vmem |
| LED | BMC Heartbeat LED, CPU/system overheat LED, Fan failed LED, HDD activity LED, LAN activity LED, M.2 LED, Power/suspend-state indicator LED, UID/remote UID LED |
| Temperature | CPU temperature, GPU temperature, Memory temperature, NVMe temperature, PCH temperature, Peripheral temperature, System temperature |
| FAN | 7x 4-pin fan headers (up to 7 fans), Fan speed control, Triple Cooling Zones |
| Other Features | Chassis intrusion detection, CPU thermal trip support, Platform Environment Control Interface (PECI)/(TSI), Power supply monitoring |
| Environmental |
| Operating Environment | Operating Relative Humidity: 10% to 85% (non-condensing) |
| Non-operating Temperature: -40°C to 85°C (°F to °F) |
| Operating Temperature: 0°C to 60°C (°F to °F ) |
| Non-operating Relative Humidity: 5% to 95% |
| Parts List |
| CPU carrier | 1x SKT-1543H-0000-LTS |
| I/O Shield | 1x MCP-260-00203-0B |
| QRG | MNL-2802-QRG |
| I/O Cables | 6x CBL-0044L |
