- Ready to Ship - Supermicro AS-3015MR-H8TNR-01-G2 MicroCloud A+ Server

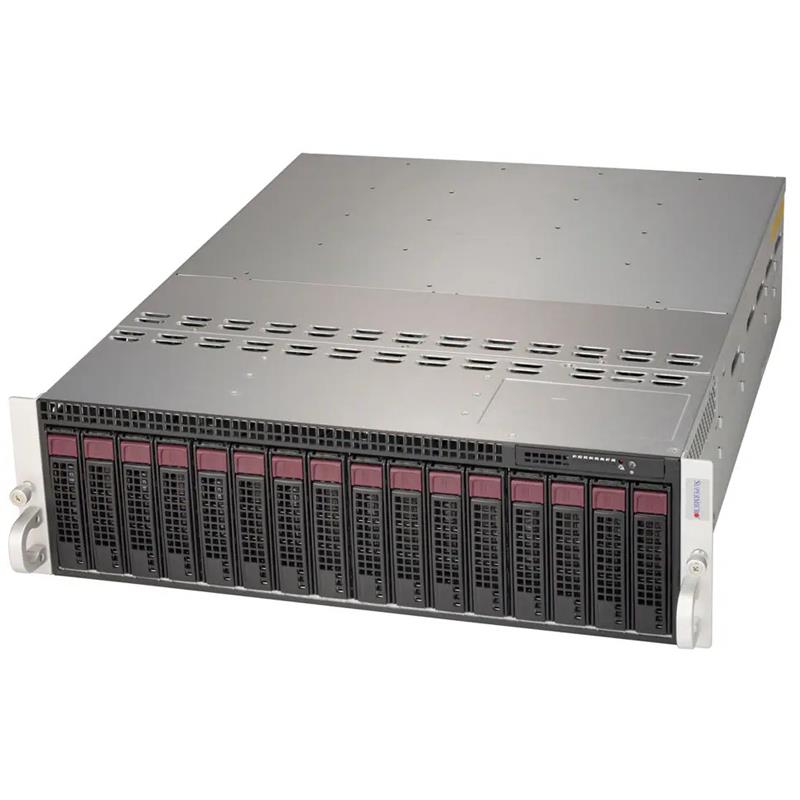

Ready to Ship - Supermicro AS-3015MR-H8TNR-01-G2 MicroCloud A+ Server
Complete 3U Rackmount Server AS-3015MR-H8TNR-01-G2
Components Installed: CPU: 1x AMD EPYC 4565P (16C/4.3GHz) Per Node, Memory: 64GB DDR5-5600 Per Node, Storage: 2x 1.92TB U.2 NVMe SSD Per Node, NIC: 2-port 10GbE/25GbE AOC Per Node, Power: 2x 2200W Titanium Level
Key Applications
Cloud Computing
Web/Collocation Services
Web Cache, CDN, Video Streaming
Social Networking, Downloads
Corporate - WINS, DNS, Print, Login
Key Features
Single Socket AM5 (LGA-1718) AMD EPYC 4005/4004 or Ryzen 7000 / 9000 Series Processor up to 170W with air cooling
AMD Knoll - Integrated I/O Controller Hub
8 sets of up to 192GB ECC/non ECC UDIMM; DDR5 5600MHz, in 4 DIMM sockets
8 sets of 1 PCIe 5.0 x8 (in x16) LP slots + 1 Micro-LP slot
8 sets of 2 front NVMe U.2/ SAS/ SATA3 drive bays with optional kits
2200W Redundant 80+ Titanium Level high-efficiency power supplies
Extra Specifications for Ready to Ship - Supermicro AS-3015MR-H8TNR-01-G2 MicroCloud A+ Server
| Main Specifications | ||
| Device Type | A+ Server | |
| Built-in Devices | Super H13SRD-F | |
| Form Factor | 3U Rackmount - CSE-938NH-R2K20BP2 | |
| Dimensions (WxDxH) | Height 5.21" (132 mm) x Width 17.26" (438 mm) x Depth 23.2" (589 mm) | |
| Weight | Gross Weight: 88 lbs (39.92 kg) - Net Weight: 62.2 lbs (28.21 kg) | |
| Enclosure Color | No Paint | |
| Processor | ||
| Processor Installed | 1x AMD EPYC 4565P (16C/4.3GHz) Per Node | |
| System Memory | ||
| Memory Installed | 64GB DDR5-5600 Per Node | |
| Drive Bays | ||
| Hard Drive Installed | 2x 1.92TB U.2 NVMe Solid-state Drive (SSD) Per Node | |
| M.2 (per node) | 1 M.2 NVMe slot (M-key 2280/22110) | |
| GPU | ||
| Max GPU Count (per Node) | Up to 1 single-width GPU | |
| Supported GPU (per Node) | NVIDIA PCIe: A2, L4, T4 | |
| Input / Output | ||
| NVMe (per Node) | NVMe, (Native) | |
| USB (per Node) | 2 USB 2.0 ports, 1 Type-C port(front) | |
| TPM ((per Node) | 1 TPM Onboard/port 80 | |
| On-Board Devices | ||
| Network Connectivity (per Node) | 2-port 10GbE/25GbE AOC Per Node | |
| Graphics (per Node) | 1 port | |
| System BIOS | ||
| BIOS Type | AMI 32MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations (per Node) | Power-on mode for AC power recovery, ACPI 6.0 Power Management | |
| PC Health Monitoring | ||
| CPU | 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V, Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. | |
| FAN | Fan speed control, Dual Cooling Zone | |
| Temperature | Monitoring for CPU and chassis environment | |
| Front Panel | ||
| Buttons | Power On/Off button | |
| LEDs | 8 Individual Node Status Indicators, Power Failure | |
| Expansion Slots | ||
| Expansion Slots (per node) | 1 PCIe 5.0 x8 (in x16) LP slot, 1 PCIe 5.0 x8 MicroLP slot | |
| Expansion / Connectivity | ||
| Drive Bays / Storage (per Node) | 2 front fixed 3.5"/2.5" NVMe/SAS/SATA drive bays (SAS/SATA support may require additional storage controller and/or cables) | |
| System Cooling | ||
| Fans/Air Shroud | Up to 4 Heavy Duty 8cm Fan(s) | |
| 8 Air Shrouds | ||
| Power Supply | ||
| Power Supply | 2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
