- Ready to Ship - Supermicro AS-2126HS-TN-01-G2 Hyper A+ Server
Ready to Ship - Supermicro AS-2126HS-TN-01-G2 Hyper A+ Server

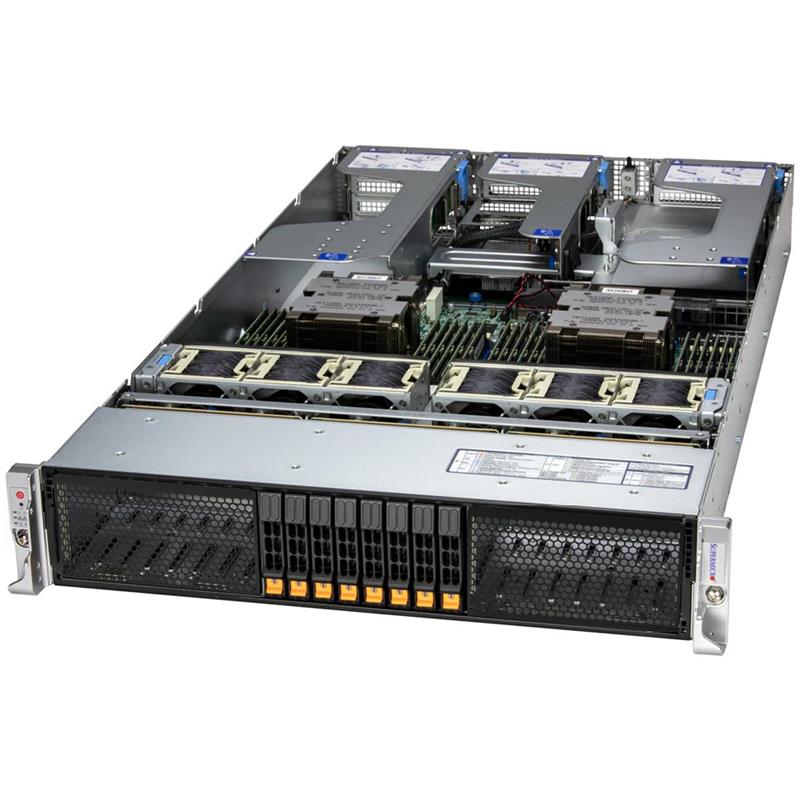

Complete 2U Rackmount Server AS-2126HS-TN-01-G2
Components Installed: CPU: 2x AMD EPYC 9965P (192C/2.25GHz), Memory: 1.5TB DDR5-6400, Storage: 2x 960GB M.2 NVMe SSD, NIC: 1x dual 25GbE SFP28, Power: 2x 2000W Titanium Level
This product is sold only as a completely assembled system.
Key Applications
Virtualization
Software-defined Storage
AI Inference and Machine Learning
Cloud Computing
Enterprise Server
High Performance Computing (HPC)
Key Features
Dual AMD EPYC 9005/9004 Series Processors
Support up to DDR5 24 DIMM slots (1DPC), speed up to 6400MT/s
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots or mix and match
Flexible networking options with 1 AIOM networking slot (OCP NIC 3.0 compatible)
Up to 24 front hot-swap 2.5" NVMe/SATA drive bays, 2 M.2 PCIe 3.0 NVMe slots
Capabilities for GPU and CXL 2.0 support
Dual 1600W / 2000W / 2600W Redundant Titanium Level power supplies (Power supply full redundancy based on configuration and application load)
Extra Specifications for Ready to Ship - Supermicro AS-2126HS-TN-01-G2 Hyper A+ Server
| Main Specifications | ||
| Device Type | A+ Server | |
| Built-in Devices | Super H14DSH | |
| Form Factor | 2U Rackmount - CSE-HS201-R000NFP | |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 31.74" (806.2 mm) | |
| Weight | Gross Weight: 75 lbs (34 kg) - Net Weight: 45 lbs (20.5 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 2x AMD EPYC 9965P (192C/2.25GHz) | |
| System Memory | ||
| Memory Installed | 1.5TB DDR5-6400 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) | |
| GPU | ||
| Max GPU Count | Up to 3 double-width GPUs | |
| Supported GPUs | NVIDIA PCIe: H100 NVL, A16, L4, L40, L40S, NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition, RTX 2000 Ada, RTX 4500 Ada, RTX 5000 Ada, RTX 6000 Ada Generation | |
| AMD PCIe: Instinct MI210 | ||
| On-Board Devices | ||
| Network Connectivity | 1x Dual 25GbE SFP28 | |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support | |
| TPM | 1 TPM Onboard/port 80 | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB(s) | 2 USB 3.0 ports(rear) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| BIOS Features | Plug and Play (PnP), UEFI 2.8, USB Keyboard support, ACPI 6.5, SMBIOS 3.7 or later | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), KVM with dedicated LAN, IPMI 2.0, Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, IPMIView | |
| Power Configurations | ACPI/APM Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, Power status, System information | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | CXL Support: Up to 4 CXL 2.0 x16 devices | |
| Option A: 4 PCIe 5.0 x16 FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| Option B: 8 PCIe 5.0 x8 (in x16) FHFL slots | ||
| 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (Requires additional parts) | ||
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SATA drive bays | |
| Option A: 24 front hot-swap 2.5" NVMe/SATA drive bays (NVMe/SATA support may require additional storage controller and/or cables) | ||
| System Cooling | ||
| Fans/Air Shroud | Air Shroud: 2 Air Shrouds | |
| Up to 6 counter-rotating 60x60x56mm Fans | ||
| Power Supply | ||
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies | |
| Environmental | ||
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) | |
| Operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
| E-mail: | returnservices@wiredzone.com |
| If you need Technical Support for this item please contact: | |
| Provider: | Supermicro |
| Type of Support: | FULL |
| Phone No.: | 408-503-8000 |
| URL: | Click here for Manufacturer Website |
