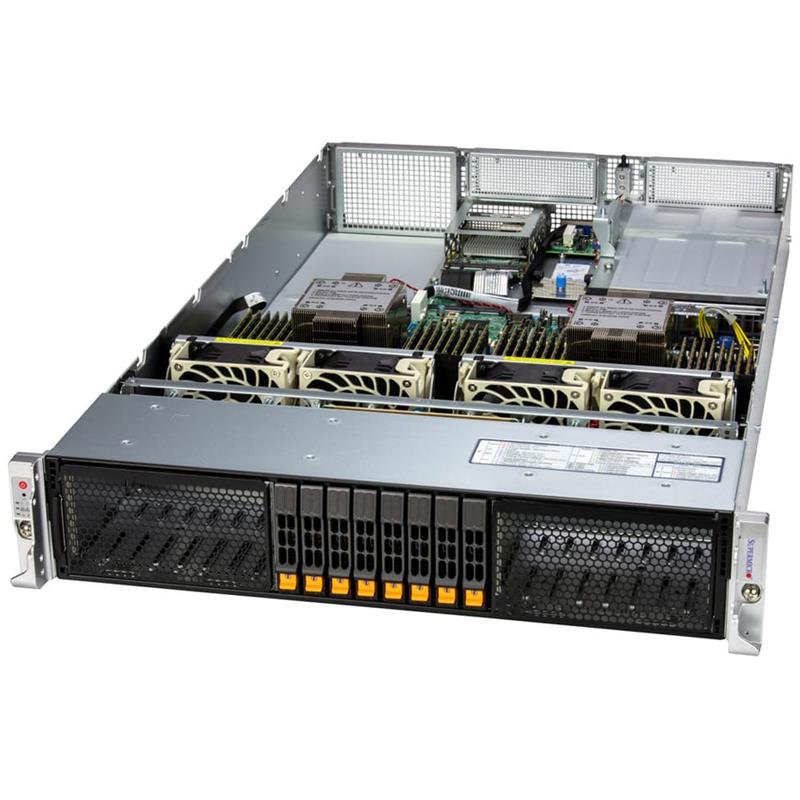

- Ready to Ship - Supermicro SYS-222H-TN-01-G2 2U Hyper SuperServer
Ready to Ship - Supermicro SYS-222H-TN-01-G2 2U Hyper SuperServer
Complete 2U Rackmount Server SYS-222H-TN-01-G2
Components Installed: CPU: 2x Intel Xeon 6740P (96C/2.1GHz), Memory: 1TB DDR5-6400, Storage: 2x 3.8TB U.2 NVMe SSD, NIC: 1x Dual 25GbE SFP28, Power: 2x 2000W Titanium Level
This product is sold only as a completely assembled system.
Key Applications
Virtualization
Software-defined Storage
High Performance Computing
Cloud Computing
Enterprise Server
Key Features
Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores
32 DIMM slots supporting up to 8TB of memory
Optional PCIe slot configurations up to 8 PCIe 5.0 x8 or 4 PCIe 5.0 x16 slots with support for double-width GPU/Accelerator cards
Flexible networking options with up to 2 AIOM networking slots (OCP NIC 3.0 compatible)
8x 2.5" hot-swap NVMe/SATA/SAS drive bays with optional configurations for 16x/24x 2.5" hot-swap NVMe/SAS/SATA drive bays; 2x internal M.2 NVMe drive slots; Optional RAID support via storage add-on card
Extra Specifications for Ready to Ship - Supermicro SYS-222H-TN-01-G2 2U Hyper SuperServer
| Main Specifications | ||
| Device Type | SuperServer | |
| Built-in Devices | Super X14DBM-SP | |
| Form Factor | 2U Rackmount - CSE-HS219-R000NP | |
| Dimensions (WxDxH) | Height 3.5" (88 mm) x Width 17.3" (438.4 mm) x Depth 29.73" (755.2 mm) | |
| Weight | Gross Weight: 66 lbs (30 kg) - Net Weight: 40 lbs (18.2 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 2x Intel Xeon 6740P (48C/2.1GHz) | |
| System Memory | ||
| Memory Installed | 1TB DDR5-6400 | |
| Drive Bays | ||
| Hard Drive Installed | 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) | |
| GPU | ||
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs | |
| Supported GPUs | NVIDIA PCIe: H100 NVL, L40S, L4 | |
| On-Board Devices | ||
| NVMe. | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) | |
| Network Connectivity | 1x Dual 25GbE SFP28 | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB(s) | 2 USB 3.0 ports(rear), 2 USB 3.0 ports(Header) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, LAN2 acticity, Power Fail, Power status, System information (overheat/UID) | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Option A: 4 PCIe 5.0 x16 FH/10.5"L double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) | |
| Option B: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) | ||
| 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) (Requires additional parts) | ||
| CXL Support: Up to 4 CXL 2.0 x16/x8 devices | ||
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays | |
| Option A: 16 front hot-swap 2.5" NVMe/SAS/SATA drive bays | ||
| Option B: 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) | ||
| System Cooling | ||
| Fans/Air Shroud | Direct to Chip (D2C) Cold Plate (optional) | |
| Air Shroud: 2 Air Shrouds | ||
| Up to 4x 8cm heavy duty fans with optimal fan speed control | ||
| Power Supply | ||
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Name: A2 | ||
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) | ||
| Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) | ||
