| Main Specifications |

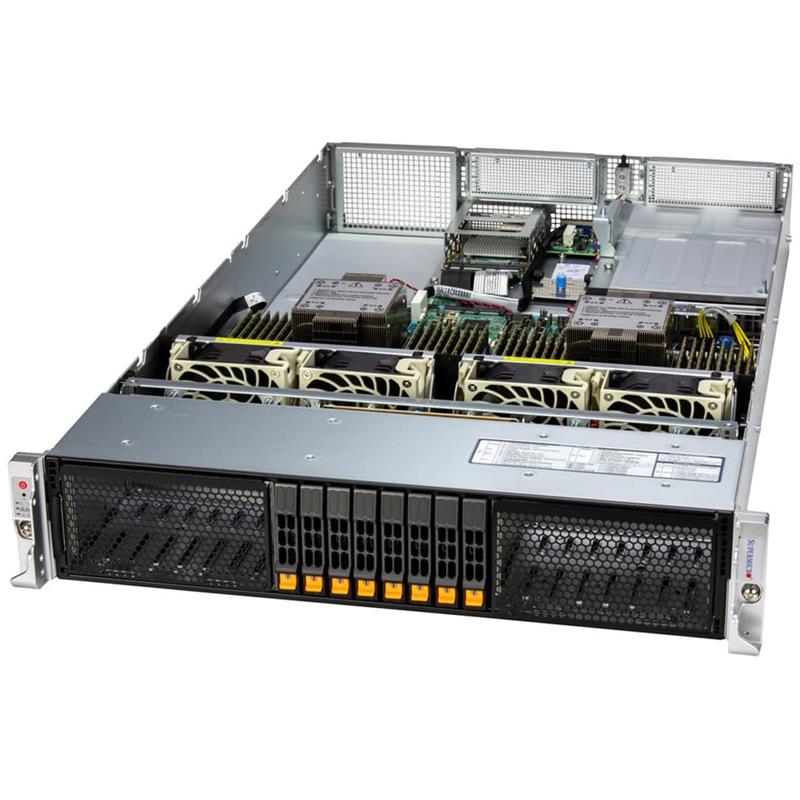

| Device Type | SuperServer |
| Built-in Devices | Super X14DBM-SP |
| Form Factor | 2U Rackmount - CSE-HS219-R000NP |
| Dimensions (WxDxH) | Height 3.5" (88 mm) x Width 17.3" (438.4 mm) x Depth 29.73" (755.2 mm) |
| Weight | Gross Weight: 66 lbs (30 kg) - Net Weight: 40 lbs (18.2 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | 2x Intel Xeon 6740P (48C/2.1GHz) |
| System Memory |
| Memory Installed | 1TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 2x 3.8TB U.2 NVMe Solid-state Drive (SSD) |
| GPU |
| Max GPU Count | Up to 4 double-width or 8 single-width GPUs |
| Supported GPUs | NVIDIA PCIe: H100 NVL, L40S, L4 |
| On-Board Devices |
| NVMe. | NVMe, RAID 0/1/5/10 support (Intel VROC RAID key required) |
| Network Connectivity | 1x Dual 25GbE SFP28 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| USB(s) | 2 USB 3.0 ports(rear), 2 USB 3.0 ports(Header) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Front Panel |
| Buttons | Power On/Off, UID button |
| LEDs | HDD activity, LAN1 activity, LAN2 acticity, Power Fail, Power status, System information (overheat/UID) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Option A: 4 PCIe 5.0 x16 FH/10.5"L double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible), 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) |
| Option B: 8 PCIe 5.0 x8 (in x16) FH/10.5"L slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| 1 PCIe 5.0 x8 AIOM slot (OCP 3.0 compatible) (Requires additional parts) |
| CXL Support: Up to 4 CXL 2.0 x16/x8 devices |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
| Option A: 16 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
| Option B: 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | Direct to Chip (D2C) Cold Plate (optional) |
| Air Shroud: 2 Air Shrouds |
| Up to 4x 8cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 2x 2000W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies |
| Environmental |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Name: A2 |
| Non-operating Temperature: -30°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (max 21° DP; non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (max 38° DP; non-condensing) |
