| Main Specifications |

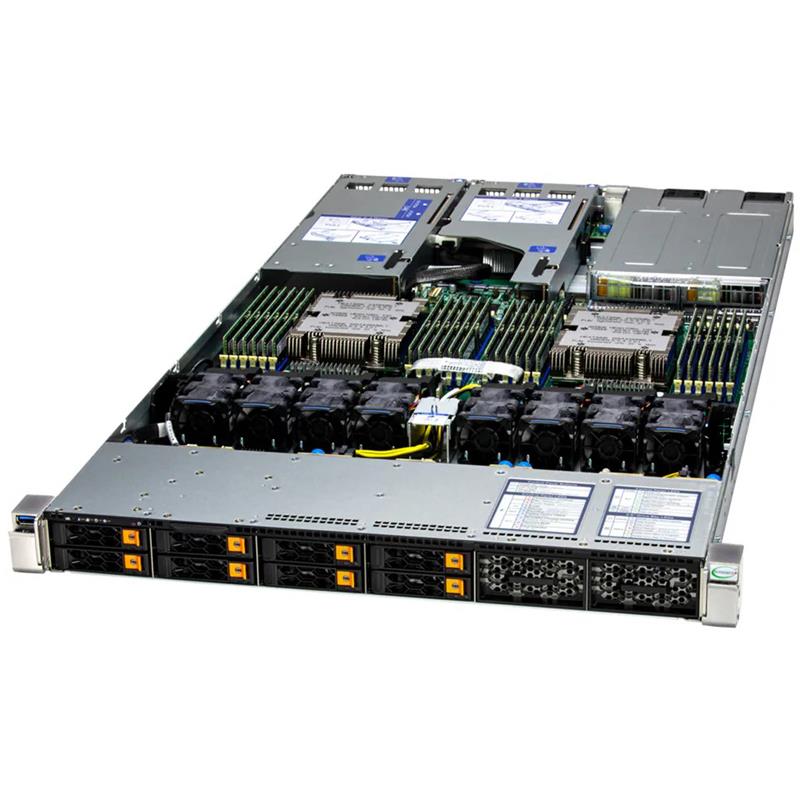

| Device Type | A+ Server |
| Built-in Devices | Super H14DSH |
| Form Factor | 1U Rackmount - CSE-HS101-R000NFP |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 30.66" (778.7 mm) |
| Weight | Gross Weight: 41.4 lbs (18.8 kg) - Net Weight: 19.2 lbs (8.7 kg) |
| Enclosure Color | Silver |
| Processor |
| Processor Installed | 2x AMD EPYC 9355 (32C/3.55GHz) |
| System Memory |
| Memory Installed | 1.5TB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 2x 960GB M.2 NVMe Solid-state Drive (SSD) |
| On-Board Devices |
| Network Connectivity | 1x Dual 25GbE SFP28 |
| IPMI | Support for Intelligent Platform Management Interface v.2.0, IPMI 2.0 with virtual media over LAN and KVM-over-LAN support |
| TPM | 1 TPM Onboard/port 80 |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| USB(s) | 2 USB 3.0 ports(rear), 1 USB 3.0 port(front) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| BIOS Features | Plug and Play (PnP), UEFI 2.8, USB Keyboard support, ACPI 6.5, SMBIOS 3.7 or later |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), KVM with dedicated LAN, IPMI 2.0, Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, IPMIView |
| Power Configurations | ACPI/APM Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Front Panel |
| Buttons | Power On/Off, UID button |
| LEDs | HDD activity, LAN1 activity, Power status, System information |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x16 FHHL slot, 2 PCIe 5.0 x16 FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| CXL Support: Up to 4 CXL 2.0 x16 devices |
| M.2 | 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 2.5" NVMe/SATA drive bays |
| Option A: 12 front hot-swap 2.5" NVMe/SATA drive bays (NVMe/SATA support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | Air Shroud: 2 Air Shrouds |
| Fans: Up to 8 counter-rotating 40x40x56mm Fan(s) |
| Power Supply |
| Power Supply | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
