| Product SKUs |
| Product SKUs | SYS-532AW-TC |

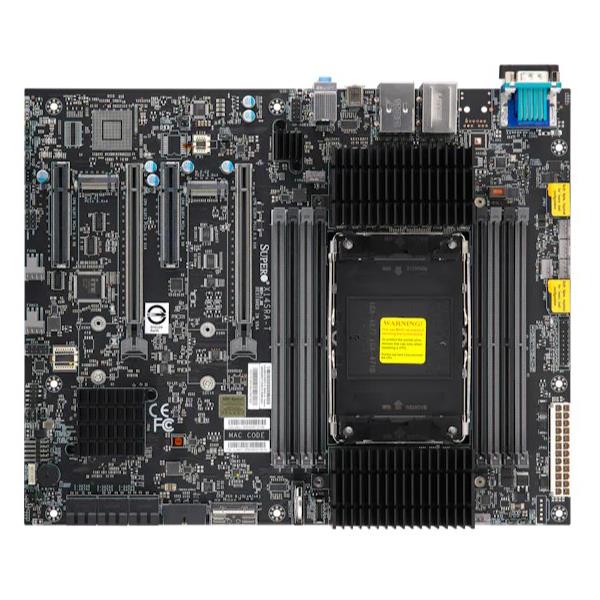

| Motherboard |
| Motherboard | Super X14SRA-T |
| Processor |
| CPU | Single E2 (LGA 4710-2) |
| Intel® Xeon® 600 Processor for Workstation |
| Core Count | Up to 86C/172T; Up to 336MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 double-width GPUs |
| Supported GPU | View GPU Options |
| NVIDIA PCIe: NVIDIA RTX PRO™ 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO™ 6000 Blackwell Workstation Edition |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 8 DIMM slots |
| Max Memory (2DPC): Up to 1TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA | SATA (6Gbps) via Intel® W890; RAID 0/1/5/10 support |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 1 RJ45 1GbE with Intel® I219-LM |
| 1 RJ45 10GbE with Marvell® AQC113 |
| Input / Output |
| USB | 2 USB 3.2 Gen1 Type-A ports(front) |
| 4 USB 3.2 Gen2 Type-A ports(Rear) |
| 1 USB 3.2 Gen2 Type-C port(Rear) |
| 1 USB 3.2 Gen2 Type-C port(Front) |
| Serial | 1 COM port(rear) |
| Audio | 5.1 HD Audio |
| System BIOS |
| BIOS Type | AMI 256MB SPI Flash |
| Management |
| Software | Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Supermicro SuperDoctor® 5 (SD5) |
| Power configurations | Wake-on-LAN |
| ACPI 6.5 Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| PC Health Monitoring |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |

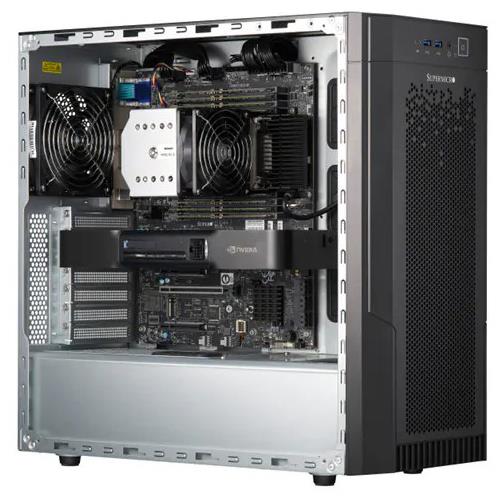

| Chassis |
| Form Factor | Mid-Tower |
| Model | CSE-GS3A-000NBP |
| Dimensions and Weight |
| Height | 17.72" (450 mm) |
| Width | 8.07" (205 mm) |
| Depth | 18.5" (470 mm) |
| Package | 24.29" (H) x 12.8" (W) x 23.23" (D) |
| Weight | Gross Weight: 19.2 lbs (8.7 kg) |
| Net Weight: 14.1 lbs (6.4 kg) |
| Available Color | Black |

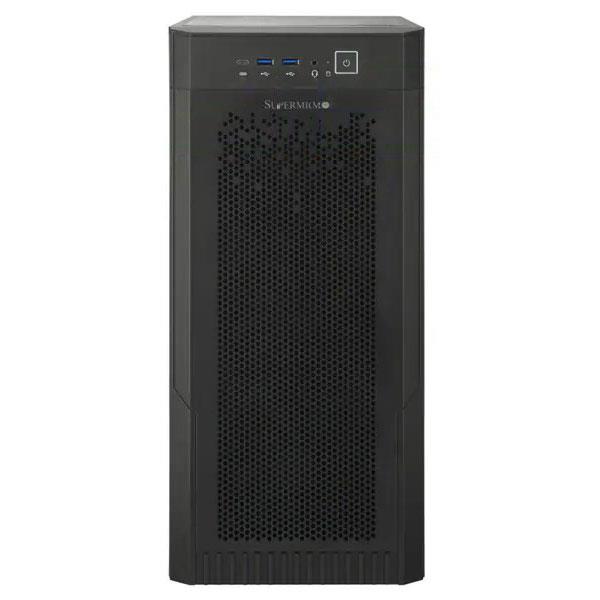

| Front Panel |
| Buttons | Power On/Off |
| LED | Power status LED |
| HDD activity |
| Port | Audio Jack-Combo microphone input / audio output port |
| USB Type-A Ports-USB 3.2 Gen 1X1 ports (5G) |
| USB Type-C-USB 3.2 Gen 2X2 port (20G) |

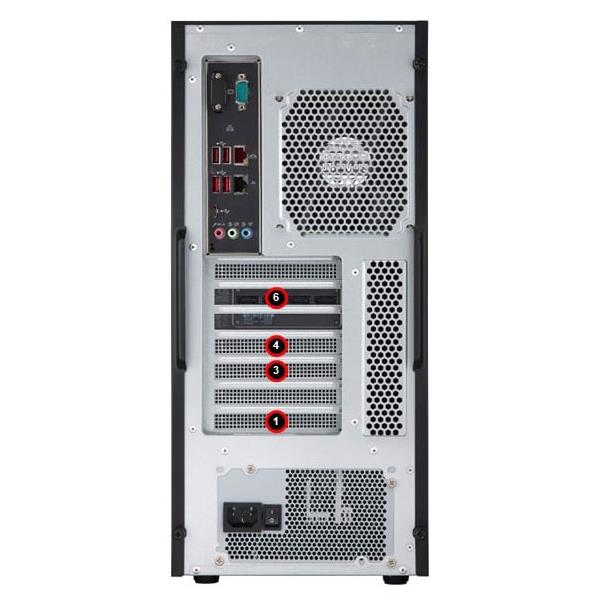

| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | (*NVMe/SATA support may require additional storage controller and/or cables, please see the optional parts list for details) |
| 2 internal fixed 3.5"/2.5" SATA drive bays |
| 2 internal fixed 3.5" SATA* drive bays |
| 2 internal fixed 2.5" PCIe 4.0 NVMe* drive bays |
| Default: Total 8 bays 2 internal fixed 3.5"/2.5" SATA drive bays 6 internal fixed 2.5" SATA drive bays |
| 6 internal fixed 2.5" SATA drive bays |
| Option A: Total 8 bays 2 internal fixed 3.5" SATA* drive bays 4 internal fixed 2.5" SATA* drive bays 2 internal fixed 2.5" PCIe 4.0 NVMe* drive bays |
| 4 internal fixed 2.5" SATA* drive bays |
| M.2 | View M.2 Options |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) |
| System Cooling |
| Fans | Up to 4x 120mm Fan(s) |
| Up to 1x 120mm Fan(s) |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
