- Ready to Ship - Supermicro AS-5126GS-TNRT-01-G2 GPU A+ Server

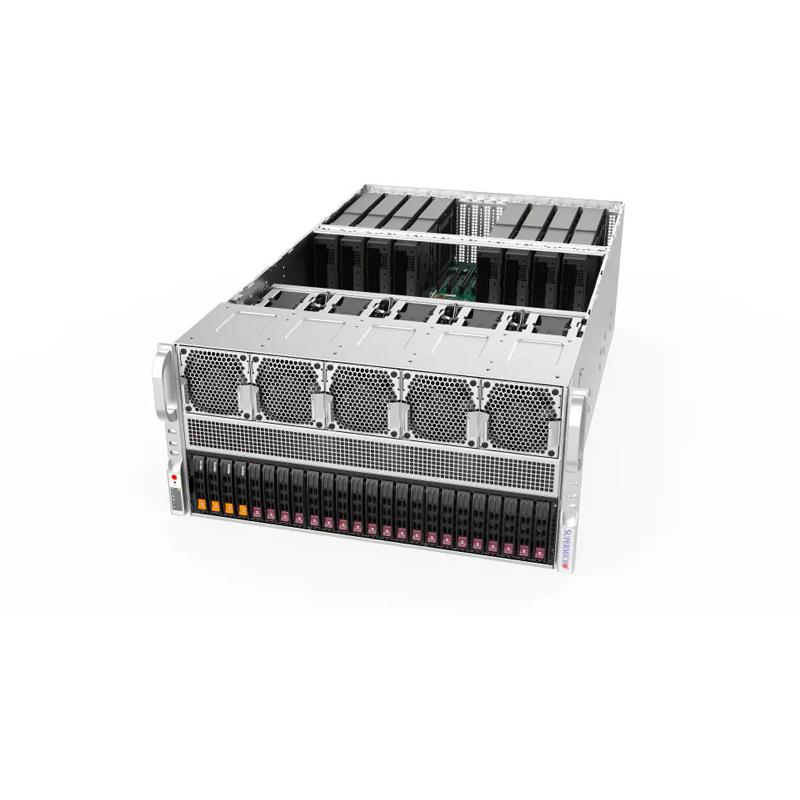

Ready to Ship - Supermicro AS-5126GS-TNRT-01-G2 GPU A+ Server
Complete 5U Rackmount Server AS-5126GS-TNRT-01-G2
Components Installed: GPU: 2x NVIDIA RTX PRO 6000 Blackwell Server Edition, CPU: 2x AMD EPYC 9355 (32C/3.55GHz), Memory: 1.5TB (24x 64GB DDR5-6400), Storage: 1x 960GB M.2 NVMe SSD, Networking: 1x dual 10GbE RJ45, Power Supply: 6x 2700W Titanium Level, Management Software Included: Supermicro DataCenter Management Suite
Key Applications
AI / Deep Learning
3D Rendering Farm
Visualization / Simulation
High Performance Computing
Multimedia/Digital Content creation
Key Features
Dual Socket SP5 AMD EPYC 9005 Series Processors up to 500W with air cooling
Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 in 1DPC
Total of 9 PCIe 5.0 x16 FHFL slots (If NVMe drives are disabled, then can be used as 10th PCIe 5.0 x16 FHFL slot)- Option A
Supports up to 8 double-width PCIe GPU accelerator cards
Dual front hot-swap 2.5" SATA + 4 front hot-swap 2.5" NVMe drive bays (The PCIe signal for 4 NVMe drives can be re-directed for PCIe slot8 enablement)
Total of 6x 2700W Redundant (3+3 or 4+2) Titanium Level power supplies (3+3 under 8100 Watt, 4+2 under 10,800 Watt) (Power supply redundancy based on configuration and application load)
Extra Specifications for Ready to Ship - Supermicro AS-5126GS-TNRT-01-G2 GPU A+ Server
| Main Specifications | ||
| Device Type | A+ Server | |
| Built-in Devices | Super H14DSG-O-CPU | |
| Form Factor | 5U Rackmount - CSE-528G2TS-R000NDP | |
| Dimensions (WxDxH) | Height 8.75" (222.5 mm) x Width 17.2" (438 mm) x Depth 31" (786.1 mm) | |
| Weight | Gross Weight: 100 lbs (45.3 kg) - Net Weight: 65.5 lbs (29.7 kg) | |
| Enclosure Color | Black Front & Silver Body | |
| Processor | ||
| Processor Installed | 2x AMD EPYC 9355 (32C/3.55GHz) | |
| GPU | ||
| GPU Installed | 2x NVIDIA RTX PRO 6000 Blackwell Server Edition | |
| System Memory | ||
| Memory Installed | 1.5TB (24x 64GB DDR5-6400) | |
| Drive Bays | ||
| Hard Drive Installed | 1x 960GB M.2 NVMe SSD | |
| On-Board Devices | ||
| Network Connectivity | 1x dual 10GbE RJ45 | |
| SATA/SAS | SATA (6Gbps) | |
| Input / Output | ||
| USB(s) | 2 ports(rear) | |
| Video Output | 1 VGA port | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash EEPROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Miscellaneous | ||
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| PC Health Monitoring | ||
| CPU | 7 +1 Phase-switching voltage regulator, Monitors for CPU Cores, Chipset Voltages, Memory | |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control | |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | Default: 9 PCIe 5.0 x16 FHFL double-width slots | |
| Option A: 10 PCIe 5.0 x16 FHFL double-width slots | ||
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Default: 2 front hot-swap 2.5" SATA drive bays, 4 front hot-swap 2.5" NVMe drive bays | |
| Option A: 2 front hot-swap 2.5" SATA drive bays | ||
| System Cooling | ||
| Fans/Air Shroud | Up to 10 heavy duty fans with optimal fan speed control | |
| Power Supply | ||
| Power Supply | 6x 2700W Redundant (4 + 2) Titanium Level (96%) power supplies | |
| Environmental | ||
| Operating Environment | Operating Relative Humidity: 8% to 90% (non-condensing) | |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) | ||
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) | ||
| Operating Temperature: 10°C to 35°C (50°F to 95°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
