- Ready to Ship - Supermicro SYS-122C-TN-01-G2 CloudDC SuperServer

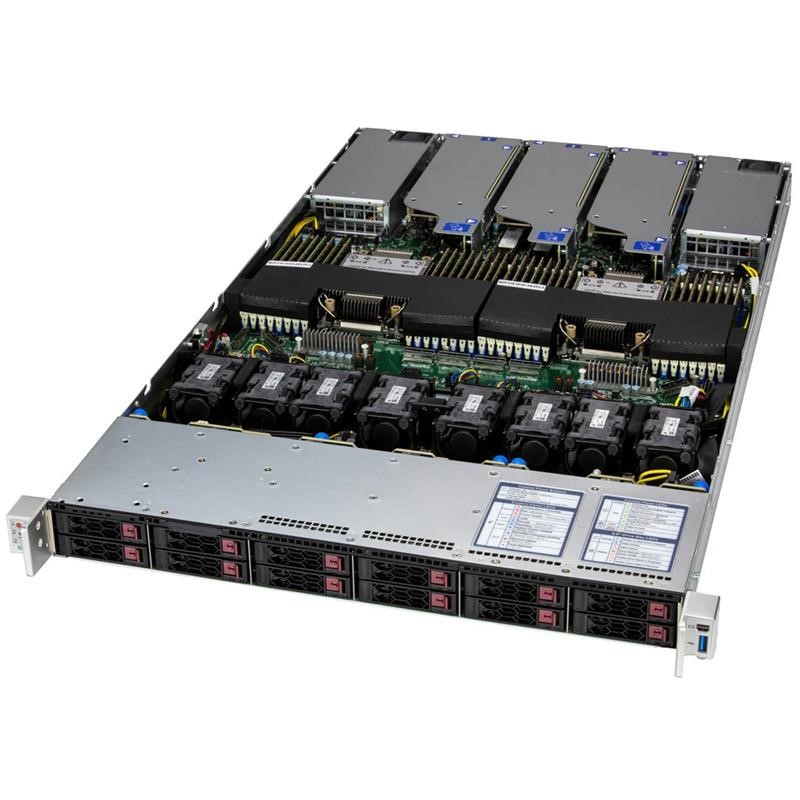

Ready to Ship - Supermicro SYS-122C-TN-01-G2 CloudDC SuperServer
Complete 1U Rackmount Server SYS-122C-TN-01-G2
Components Installed: CPU: 2x Intel Xeon 6736P (72C/2GHz), Memory: 1TB (16x 64GB DDR5-6400), Storage: 2x 3.8TB U.2 NVMe SSD, NIC: 1x dual 25GbE SFP28, Power: 2x 1000W Titanium Level, Management Software Included: Supermicro DataCenter Management Suite, Trusted Platform Module Included: TPM 2.0
This product is sold only as a completely assembled system.
Key Applications
Data Center Optimized, Value IaaS Cloud Computing
HPC, Data Center Private & Hybrid Cloud
Cloud Solution Provider (CSP)
Networking Security Appliance
Key Features
Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
Optimized power & balanced performance for cloud applications
Server management flexibility with OpenBMC
Extra Specifications for Ready to Ship - Supermicro SYS-122C-TN-01-G2 CloudDC SuperServer
| Main Specifications | ||
| Device Type | CloudDC Server | |
| Built-in Devices | Super X14DBHM | |
| Form Factor | 1U Rackmount - CSE-DC101TS-R000NP | |
| Dimensions (WxDxH) | Height 1.7" (43.6 mm) x Width 17.2" (438.4 mm) x Depth 29.7" (755.1 mm) | |
| Weight | Gross Weight: 41 lbs (18.6 kg) - Net Weight: 31 lbs (14.1 kg) | |
| Enclosure Color | Silver | |
| Processor | ||
| Processor Installed | 2x Intel Xeon 6736P (36C/2GHz) | |
| System Memory | ||
| Memory Installed | 1TB (16x 64GB DDR5-6400) | |
| Drive Bays | ||
| Hard Drive Installed | 2x 3.8TB U.2 NVMe SSD | |
| On-Board Devices | ||
| Network Card Installed | 1x Dual 25Gbe SFP28 | |
| NVMe. | NVMe, RAID 0/1/5/10 support(VROC HW key required) | |
| TPM | 1 TPM Header | |
| GPU | ||
| Max GPU Count | Up to 3 single-width GPUs | |
| Supported GPU | NVIDIA PCIe: A1000, L4 | |
| Input / Output | ||
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port | |
| USB(s) | 1 USB 2.0 Type-A port(Rear), 1 USB 3.2 Gen1 Type-A port(Rear) | |
| Video Output | 1 VGA port(Rear) | |
| System BIOS | ||
| BIOS Type | AMI 64MB SPI Flash ROM | |
| Management | ||
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New! | |
| Power Configurations | ACPI Power Management | |
| Security | ||
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant | |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown | |
| Front Panel | ||
| Buttons | Power On/Off, UID button | |
| LEDs | HDD activity, LAN1 activity, LAN2 activity, Power Fail LED, Power status, System information | |
| Expansion / Connectivity | ||
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 LP slots, 1 PCIe 5.0 x8 LP slot, 2 PCIe 5.0 x16 AIOM slots (OCP 3.0 compatible) | |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID) | |
| Drive Bays / Storage | ||
| Drive Bays Configuration | Option A: 12 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) | |
| System Cooling | ||
| Fans/Air Shroud | 2 Air Shrouds | |
| Up to 8x 4cm heavy duty fans with optimal fan speed control | ||
| Power Supply | ||
| Power Supply | 2x 1000W Titanium Level | |
| Environmental | ||
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) | |
| Operating Relative Humidity: 8% to 80% (non-condensing) | ||
| Non-operating Relative Humidity: 8% to 90% (non-condensing) | ||
| Non-operating Temperature: -30°C to 60°C (-30°F to 140°F) | ||
| Warranty: | 3 years labor, 1 year parts, 1 year advance replacement (doa) |
| Coverage: | Replacement or repair |
| Average Service Time: | Overnight replacement for 1 year, 2 weeks afterward |
