| Main Specifications |
| Device Type | SuperWorkstation |

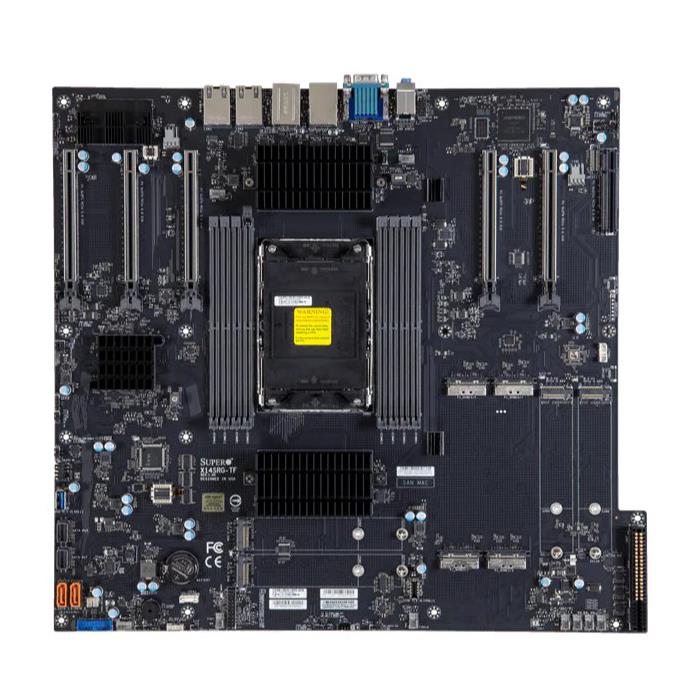

| Built-in Devices | Super X14SRG-TF |

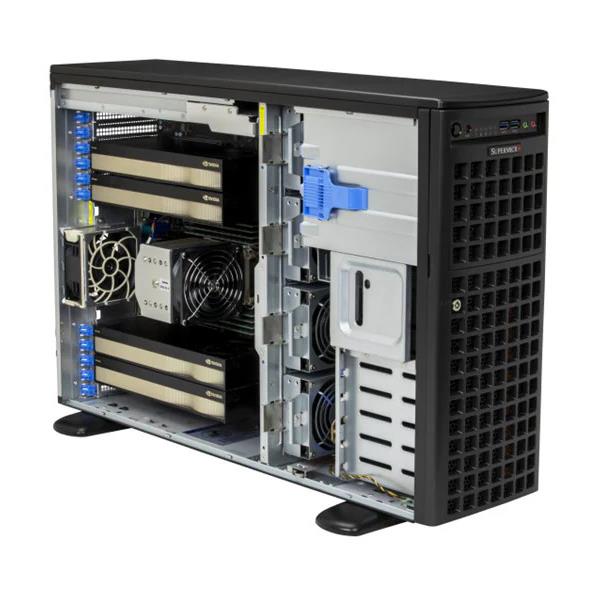

| Form Factor | 4U Rackmount - CSE-749TS-R000NBP |
| Dimensions (WxDxH) | Height 18.32" (465.4 mm) x Width 6.96" (177 mm) x Depth 26.71" (678.5 mm) |
| Weight | Gross Weight: 62 lbs (28.1 kg) - Net Weight: 46 lbs (20.9 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Intel Xeon 600 Processor for Workstation |
| Compatible Socket | Single E2 (LGA 4710-2) |
| Core Count | Up to 86C/172T, Up to 336MB Cache |
| Note | Supports up to 350W TDP CPUs (Air Cooled) |
| GPU |
| Max GPU Count | Up to 2 triple-width or 4 double-width GPUs |
| Supported GPU | NVIDIA PCIe: NVIDIA RTX PRO 4000 Blackwell, NVIDIA RTX PRO 5000 Blackwell, NVIDIA RTX PRO 6000 Blackwell Max-Q Workstation Edition, NVIDIA RTX PRO 6000 Blackwell Workstation Edition |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| System Memory |
| Memory Capacity | Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Slot Count: 8 DIMM Slots |
| Memory Voltage | 1.1V |
| On-Board Devices |
| SATA/SAS | SATA (6Gbps) via Intel W890, RAID 0/1/5/10 support |
| Chipset | Intel W890 |
| Network Connectivity | 1 RJ45 1GbE with ASPEED AST2600 |
| 2 RJ45 10GbE with Intel E610 |
| 1 RJ45 1GbE with Intel I219-LM |
| TPM | 1 TPM Onboard TPM & TPM Header |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port (ASPEED AST2600) |
| 1 RJ45 1 GbE LAN port (Intel I219-LM) |
| 2 RJ45 10 GbE LAN ports (Intel E610) |
| USB(s) | 2 USB 3.2 Gen1 Type-A ports (rear), 2 USB 3.2 Gen1 Type-A ports (front) |
| 3 USB 3.2 Gen2 Type-A ports (Rear) |
| 1 USB 3.2 Gen2x2 Type-C port (Rear) |
| Video Output | 1 VGA port (Rear) |
| Serial Port / Headers | 1 COM port (rear) |
| Audio | 7.1 HD Audio |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer, Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power button override mechanism, Power-on mode control for AC power loss recovery, ACPI 6.5 Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 5 PCIe 5.0 x16 FHFL slots, 1 PCIe 5.0 x8 FHFL slot |
| M.2 | 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 22110(default)/2280) |
| 2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default)/2280) |
| Peripheral Bay (Free) | 3 5.25" peripheral bays |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: 8 front hot-swap 3.5" NVMe/SAS/SATA drive bays |
| Option A: 8 front hot-swap 2.5" NVMe/SAS/SATA drive bays |
| (SAS support may require additional storage controller and/or cables) |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| Up to 5 heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | Optional Configuration |
| Environmental |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) |
| Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) |
| Operating Relative Humidity: 8% to 80% (non-condensing) |
| Non-operating Relative Humidity: 8% to 90% (non-condensing) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
