| Main Specifications |

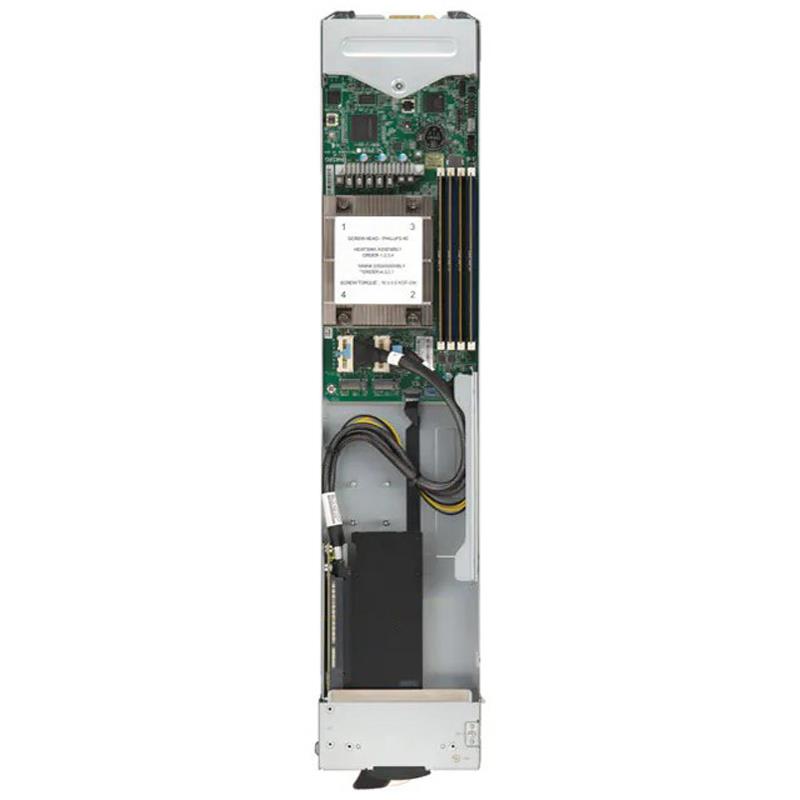

| Device Type | MicroBlade |
| Built-in Devices | MBD-BH4SRG |
| Form Factor | MicroBlade Sled |
| Dimensions (WxDxH) | Height 1.2" (30.48mm) x Width 4.94" (125.48mm) x Depth 23.2" (589.28mm) |
| Weight | Gross Weight: 3.3 lbs (1.5 kg) |
| Enclosure Color | Silver Grey |
| Processor |
| Compatible Processors | AMD EPYC 4005/4004 Series Processor |
| Compatible Socket | Single Socket AM5 (LGA-1718) |
| Cache/Core | Up to 16C/32T, Up to 128MB Cache |
| Note | Supports 65W - 170W TDP CPUs |
| GPU |
| Max GPU Count | Up to 1 HHHL PCIe 5.0 x16 GPU |
| System Memory |
| Memory Capacity | 4 DIMM slots |
| Max Memory (1DPC): Up to 192GB 5600MT/s ECC/non-ECC DDR5 UDIMM |
| Max Memory (2DPC): Up to 192GB 3600MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Network Controllers | Dual 10GbE LAN Ports (conditionally supports single port for 25G) |
| IPMI | Support for Intelligent Platform Management Interface (IPMI) v.2.0 via Chassis Management Module (CMM) |
| Graphics | ASPEED AST2500 BMC |
| TPM | 1 TPM Header |
| System BIOS |
| BIOS Type | 256Mb SPI Flash EEPROM with AMI BIOS |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED, Fault LED, Network Activity LED, UID / KVM LED |
| Drive Bays / Storage |
| Drive Bays / Storage | 2 M.2 NVMe SSD slots |
| 2 optional U.2 NVMe drive bays (either-or choice with PCIe card) |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Safety and Compliance |
| Electromagnetic Compatibility | United States / Canada: FCC- Emissions (US) Verification |
| Europe: EN55022 - Emissions, EN55024 - Immunity, EN61000-3-2 - Harmonics, EN61000-3-3 - Voltage Flicker, CE - EMC Directive 89/336/EEC |
| Optional Parts List |
| Optional Heat Sink | SNK-P0076V |
| Optional TPM security module | AOM-TPM-9670V, AOM-TPM-9671V |
| Optional Software | SFT-DCMS-Single |
