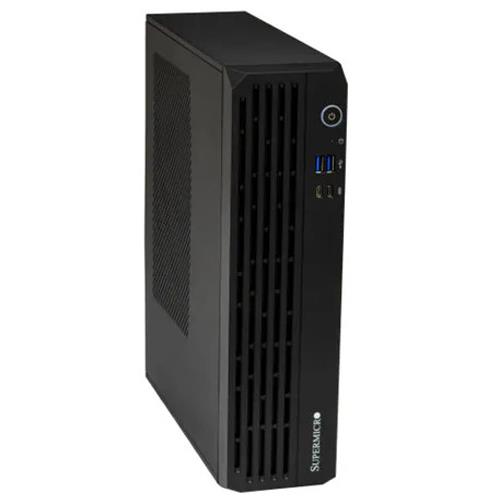

  2. Ready to Ship - Supermicro AS-C521D-31101U Compact Slim-Tower AI PC Powered By One AMD EPYC 4124P Processor
Ready to Ship - Supermicro AS-C521D-31101U Compact Slim-Tower AI PC Powered By One AMD EPYC 4124P Processor
DT, AMD-4124P 5.1GHz, 16GB 5600, 1TB SSD, Slim Tower

Ready to Ship - Supermicro AS-C521D-31101U Compact Slim-Tower AI PC Powered By One AMD EPYC 4124P Processor

  • Business Intelligence

  • Office environment

  • Smart Retail/Medical Expert Systems

  • Designed for Small and Medium-sized Business applications

  • Edge AI inferencing

Complete Slim-Tower AI PC SuperServer, Support Single Processor For AMD EPYC 4005 Series Processors. 1 Double-width Or 1 Single-width GPU. Max Memory (1DPC): Up To 96GB 5600MT/s Non-ECC DDR5 UDIMM, In 2 DIMM Slots/2 Channels. Chipset: AMD B850, On-Board: SATA (6Gbps), RAID 0/1 Support. Drive Bays / Storage: 1 Internal Fixed 3.5In SATA Drive Bay, 1 Internal Fixed 2.5In SATA Drive Bay. 1 M.2 PCIe 4.0 x4 NVMe Slot (M-key 2280 (Default) / 22110), 1 M.2 PCIe 5.0 x4 NVMe Slot (M-key 2280 (Default) / 22110). Network Connectivity: 1 RJ45 5GbE LAN Port (5G Realtek Ethernet RTL8126) 1x 300W Power Supply - (AS -C521D + Super CARAM5-M) - AS-C521D-31101U Components Installed: CPU: 1x AMD EPYC 4124P Processor 4C/8T Max 5.1GHz 65W, Memory: 1x 16GB DDR5-5600 non-ECC UDIMM, Storage: 1x 1TB PCIe Gen4 NVMe M.2 SSD, IO Ports 2x USB 4.0 (DP 2.0 Alt Mode) Type-C Ports, 1x HDMI 2.1 Port, Connection: Wi-Fi 7 + Bluetooth 5.4, OS: Windows 11 HOME Pre-loaded, 1x 300W Gold Level (90%) Power Supply

$ 1,647.00$ 1,647.001647.0USD

$ 1,647.00

Option not available

InStock
9 lb

    This combination does not exist.

    Add to Cart

    • Single Socket AM5 LGA-1718: AMD EPYC 4004 Series processor up to 120W with air cooling

    • Up to 2 DIMMs supporting up to 96GB non-ECC UDIMM DDR5-5600 in 1DPC

    • Up to 1 PCIe 5.0 x16 Low Profile or HHHL

    • 1 internal fixed 2.5" SATA drive bay + 1 internal fixed 3.5" SATA drive bay

    • 300W 80 Plus Gold ATX power supply

    • Modern slim tower chassis with 11.42" 290mm depth

    • 5GbE LAN high-speed networking

    • Wi-Fi 7 and USB4 for next-generation connectivity

    Extra Specifications for Ready to Ship - Supermicro AS-C521D-31101U Compact Slim-Tower AI PC Powered By One AMD EPYC 4124P Processor

    Main Specifications
    Device TypeClient System Server
    Built-in DevicesSuper CARAM5-M
    Form FactorCompact Mini-Tower - CSE-GS2B-000NBP2
    Dimensions3.62 × 13.43 × 11.42 inches (W × H × D)
    WeightGross Weight: 8.38 lbs (3.8 kg) - Net Weight: 6.17 lbs (2.8 kg)
    Enclosure ColorBlack
    Processor
    Processor Installed1x AMD EPYC 4124P Processor 4C/8T Max 5.1GHz 65W
    GPU
    Max GPU CountUp to 1 double-width or 1 single-width GPU
    System Memory
    Memory Installed1x 16GB DDR5-5600 non-ECC UDIMM
    Drive Bays
    Hard Drive Installed1x 1TB PCIe Gen4 NVMe M.2 SSD
    On-Board Devices
    Network Card InstalledWi-Fi 7 + Bluetooth 5.4
    SATA/SASSATA (6Gbps), RAID 0/1 support
    ChipsetAMD B850
    Input / Output
    USB(s)2x USB 4.0 (DP 2.0 Alt Mode) Type-C ports
    Video Output1x HDMI 2.1 port
    Software / System Requirements
    OS Provided11 HOME Pre-loaded
    System BIOS
    BIOS TypeAMI 32MB SPI Flash EEPROM
    BIOS FeaturesPlug and Play (PnP), USB Keyboard support, ACPI 6.0 or later, SMBIOS 3.0 or later
    Management
    SoftwareSupermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New, SuperO Booster
    Power ConfigurationsPower-on mode for AC power recovery, ACPI Power Management
    Security
    HardwareTrusted Platform Module (TPM) 2.0
    FeaturesCryptographically Signed Firmware, Secure Boot, Secure Firmware Updates
    Front Panel
    ButtonsPower On/Off button
    LEDsHDD activity, Power status LED
    Expansion / Connectivity
    Expansion Slots Total (Free)1 PCIe 5.0 x16 HHHL slot(s)
    M.21 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280(default)/22110)
    1 M.2 PCIe 5.0 x4 NVMe slot (M-key 2280(default)/22110)
    Drive Bays / Storage
    Drive Bays / Storage1 internal fixed 3.5" SATA drive bay
    1 internal fixed 2.5" SATA drive bay
    System Cooling
    Fans/Air Shroud1 CPU Fan
    Power Supply
    Power Supply1x 300W Gold Level (90%) power supply
    Environmental
    Operating EnvironmentOperating Relative Humidity: 8% to 90% (non-condensing)
    Non-operating Relative Humidity: 5% to 95% (non-condensing)
    Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    Operating Temperature: 10°C to 35°C (50°F to 95°F)

    Warranty:3 years labor, 1 year parts, 1 year advance replacement (doa)
    Coverage:Replacement or repair
    Average Service Time:Overnight replacement for 1 year, 2 weeks afterward
