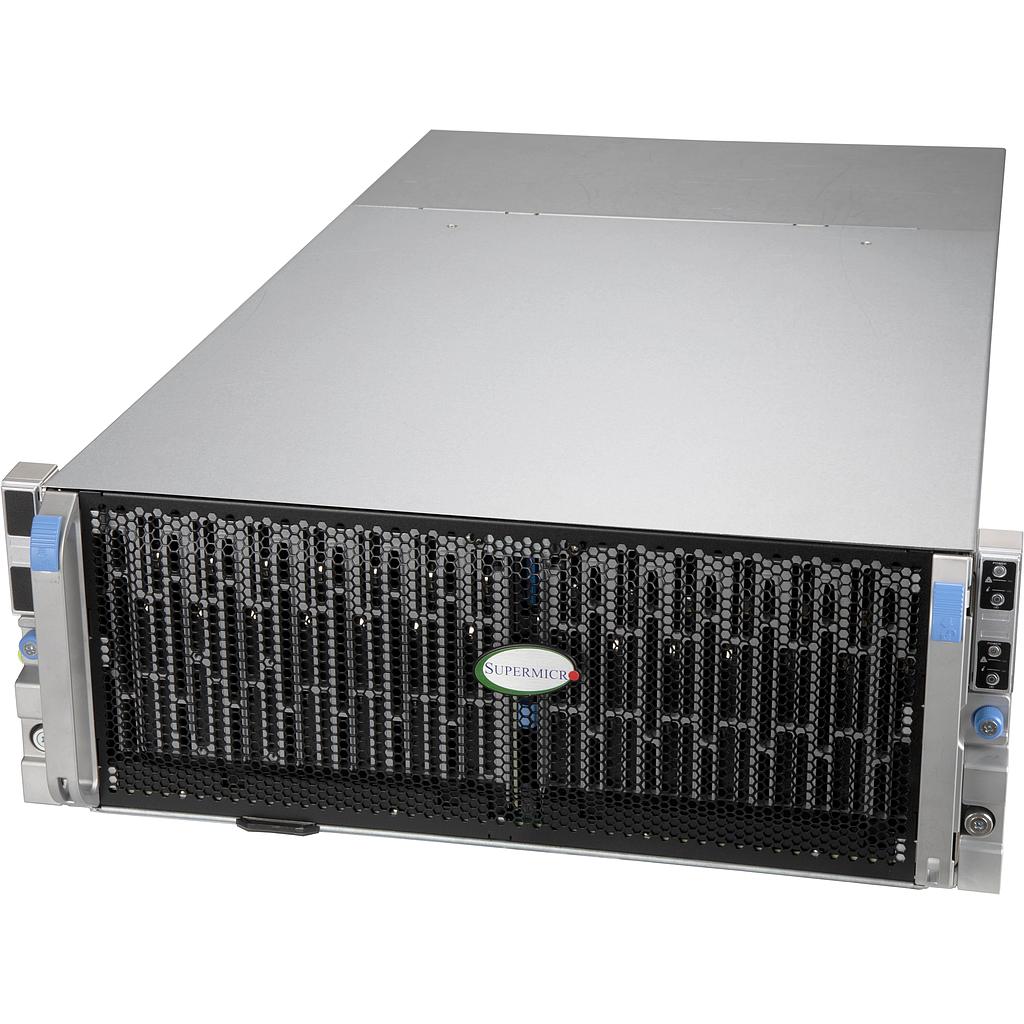

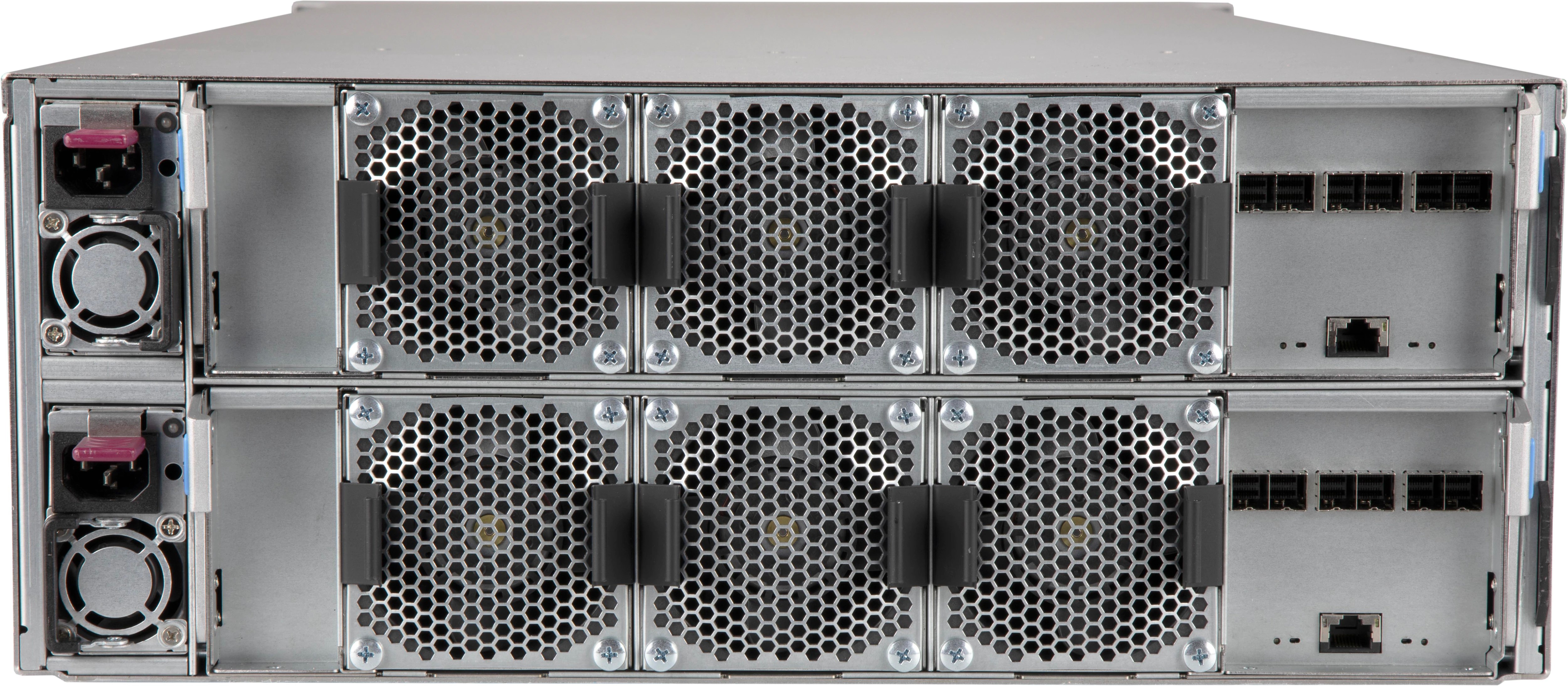

| Main Specifications |
| Device Type | JBOD storage chassis |
| Form Factor | 4U JBOD storage chassis |
| Dimensions (WxDxH) | Height 6.96" (177 mm) x Width 17.6" (447 mm) x Depth 32" (813 mm) |
| Weight | Gross Weight 173 lbs (78.47 kg) - Net Weight 110 lbs (49.9 kg) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 12x SFF-8644 Mini SAS HD |
| 2x IPMI LAN |
| Drive Bays |
| Drive Bays | 60x 3.5"/2.5" hot-swap SAS drive bay with SES4 |
| On-Board Devices |
| Qualified SAS Controllers | AOC-SAS3-9500-8E: SAS 12Gb/s PCIe 4.0 8-Port Host Bus Adapter (not included) |
| AOC-SAS3-9500-16E: SAS 12Gb/s PCIe 4.0 16-Port Host Bus Adapter (not included) |
| AOC-SAS3-9580-8I8E: SAS 12Gb/s PCIe 4.0 8-Port MegaRAID Controller (not included) |
| Backplane |
| HDD Backplane | IPMI control board for CSE-947H top-load 60/90-bay JBOD |
| JBOD I/O board for CSE-947H top-load 60/90-bay JBOD unit |
| Midplane for topload CSE-947 60/90-bay SBB/Twin/single-node system,RoHS |
| Adapter board between Expander and HDD BPN for CSE-947H,RoHS |
| 15-Port HDD Backplane for CSE-947H 60/90-bay top load chassis/server.,RoHS |
| SAS3 expander module for top-load 60/90-bay single/twin/SBB CSE-947 project,RoHS |
| Front Panel |
| Buttons | Power On/Off button, Unit Identification (UID) button |
| LEDs | HDD activity LED, 1 Network activity LEDs, System Information LED, Unit Identification (UID) LED, Power LED |
| System Cooling |
| Fans/Air Shroud | 6x 8cm hot-swap redundant PWM cooling fan(s) |
| System Monitoring |
| System Monitoring | IPMI |
| Environmental |
| Operating Environment | Operating Temperature Range: 5°C - 35°C (41°F - 95°F) |
| Non-Operating Temperature Range: -40°C - 70°C (-40°F - 158°F) |
| Operating Relative Humidity Range: 8% - 90% (non-condensing) |
| Non-Operating Relative Humidity Range: 5% - 95% (non-condensing) |
| Power Supply |
| Power Supply | 1U 1600W redundant Power Supply |
| Certification | 80PLUS Titanium Certified |
| Regulatory Safety / EMC | BSMI, CCC, CE/EMC, FCC class A, TUV/CB, UL/CUL |
| Parts List - (Items Included) |
| Bracket(s) | 5x MCP-240-94707-0N, 5x MCP-240-94708-0N |
| Hard Drive Backplane | 2x BPN-ADP-30SAS3-1, 4x BPN-SAS3-947EB, 4x BPN-SAS3-947EL, 2x BPN-SAS3-947HCB-JB, 2x BPN-SAS3-947HEL-JB, 1x BPN-SAS3-947SB |
| Cable(s) | 1x CBL-OTHR-1105, 1x CBL-PWEX-1101, 1x CBL-PWEX-1102 |
| Parts | 1x MCP-240-94709-0N, 1x MCP-270-94702-0N, 1x MCP-120-94705-0N, 1x MCP-120-94706-0N, 2x MCP-320-94703-0N, 2x MCP-220-94710-0N, 1x FPB-FP827BR |
| Drive Trays | 60x MCP-220-94601-0N |
| Power Supply Number | 2x PWS-1K63A-1R |
| Mounting Rails | 1x MCP-290-00180-0N, 1x MCP-290-94704-0N |
