| Main Specifications |

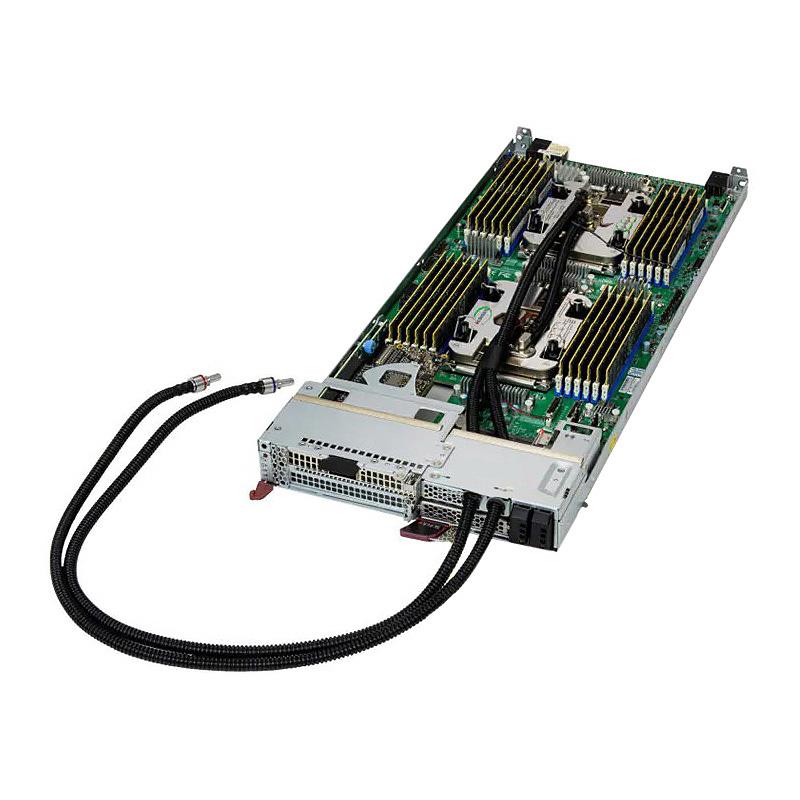

| Device Type | SuperBlade Sled |
| Built-in Devices | MBD-B14DBE-AP |
| Dimensions (WxDxH) | Height 1.7" x Width 9.83" x Depth 24.8" |
| Weight | 15.2 lbs (6.89 kg) |
| Enclosure Color | Metalic Silver with Black Drive Bays |
| Processor |
| Compatible Processors | Intel Xeon 6900 Series processors with P-cores and Intel Xeon 6+ processors |
| Compatible Socket | Dual Socket BR (LGA-7529), Supports up to 500W TDP CPUs (Liquid cooling required) |
| GPU |
| CPU-GPU Interconnect | Up to 2 LP PCIe 5.0 x16 single-width GPUs |
| System Memory |
| Memory Capacity | 24 DIMM slots |
| Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM (Intel Xeon 6900 Series processors) |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| Cache Memory |
| Memory Type | ECC DDR5 RDIMM (3DS) up to 256GB of memory with speed up to 6400MT/s; ECC Registered MRDIMM up to 128GB of memory with speed up to 8800MT/s |
| On-Board Devices |
| Chipset | System on Chip |
| Network Controllers | Onboard Dual 25G Ethernet port with Intel® Controller E810-XXVAM2 |
| 1 expansion slot with optional mezzanine cards with Dual 25G Ethernet port |
| MGMT/Security | IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust |
| Graphics | Aspeed AST2600 |
| TPM | 1 TPM 2.0 header |
| System BIOS |
| BIOS Type | 64Mb SPI Flash EEPROM with AMI BIOS |
| Front Panel |
| Buttons | Power On/Off button |
| LEDs | Power LED, UID LED, Network Activity LED, Fault LED |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Support up to 400Gb NDR InfiniBand, DPU and LP GPU |
| 3 PCIe 5.0 x16 slots supporting 1 FHHL single-width PCIe card, 1 HHHL/LP single-width PCIe card, and 1 OCP 3.0 card |
| M.2 | Optional: 2 M.2 2280 or 2 M.2 22110 NVMe SSDs via adapter |
| Drive Bays / Storage |
| Drive Bays Configuration | 2 Hot-swap E1.S drive bays |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Environmental |
| Operating Environment | Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
