| Product SKUs |
| Product SKUs | SYS-422GS-NBRT-LCC |
| Motherboard |

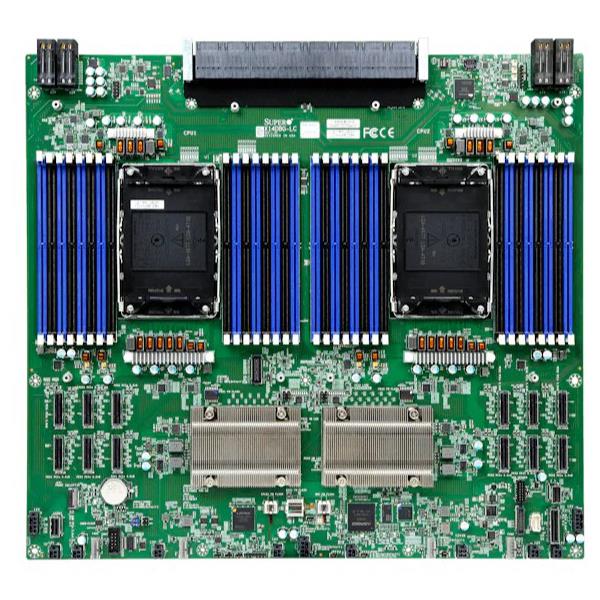

| Motherboard | Super X14DBG-LC+ |
| Processor |
| CPU | Dual Socket E2 (LGA-4710) |
| Intel® Xeon® 6700-series processors with P-cores |
| Note | Supports up to 350W TDP CPUs (Liquid Cooled) |
| GPU |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | View GPU Options |
| NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory |
| Memory | View Memory Options |
| Slot Count: 32 DIMM slots |
| Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (2DPC): Up to 8TB 5200MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | System on Chip |
| Network Connectivity | View AOC Options |
| 2 RJ45 10GbE with Intel® X710-AT2 |
| Input / Output |
| Video | 1 VGA port(Front) |
| 1 Mini-DP port(Front) |
| System BIOS |
| BIOS Type | AMI 64MB UEFI |
| Management |
| Software | Supermicro Thin-Agent Service (TAS) |
| Supermicro Server Manager (SSM) |
| SuperCloud Composer® |
| Super Diagnostics Offline (SDO) |
| SuperServer Automation Assistant (SAA) New! |
| Power configurations | Power-on mode for AC power recovery |
| ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware |
| Secure Boot |
| Secure Firmware Updates |
| Automatic Firmware Recovery |
| Supply Chain Security: Remote Attestation |
| Runtime BMC Protections |
| System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, Chipset Voltages, Memory |
| 8+4 Phase-switching voltage regulator |
| FAN | Status monitor for speed control |
| Pulse Width Modulated (PWM) fan connectors |
| Fans with tachometer monitoring |
| Temperature | Monitoring for CPU and chassis environment |
| Thermal Control for fan connectors |
| Chassis |

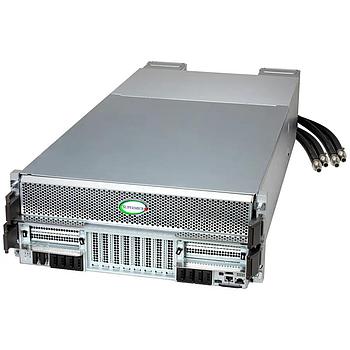

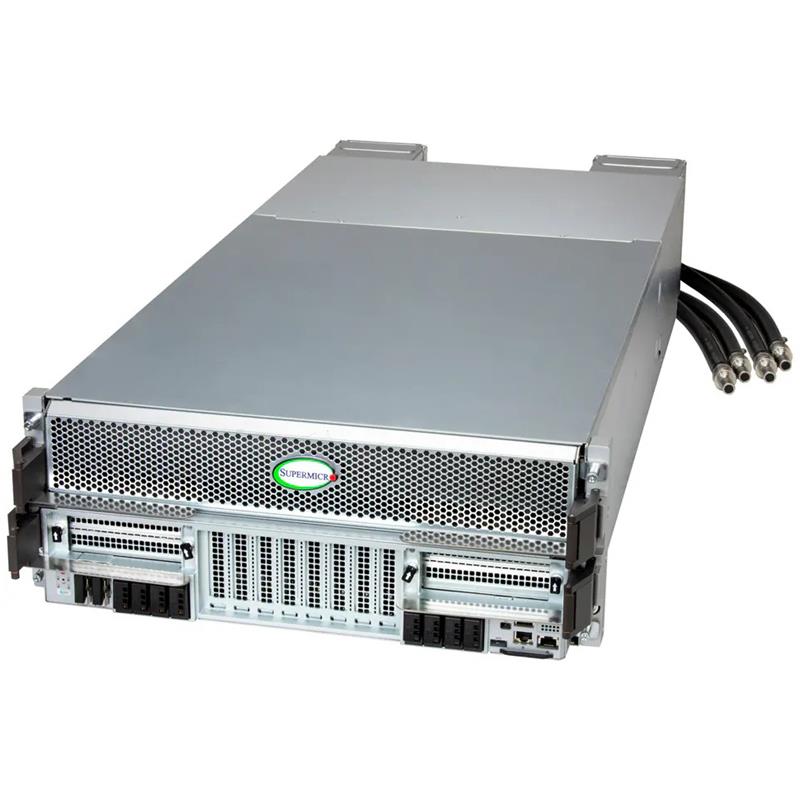

| Form Factor | 4U Rackmount |
| Model | CSE-GP405TS-R000NP |
| Dimensions and Weight |
| Height | 6.85" (174 mm) |
| Width | 17.6" (448 mm) |
| Depth | 39.03" (991.4 mm) |
| Package | 16.14" (H) x 54.92" (W) x 31.29" (D) |
| Weight | Gross Weight: 280 lbs (127 kg) |
| Net Weight: 236 lbs (107 kg) |
| Available Color | Silver |

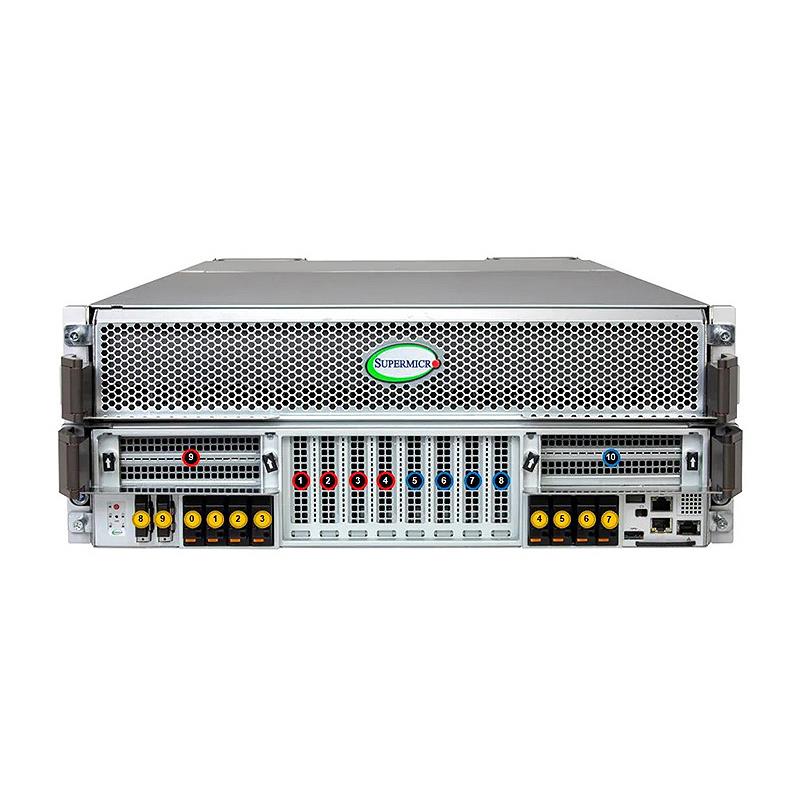

| Front Panel |
| LED | LAN1 activity |
| LAN2 activity |
| Power status |
| HDD activity |
| System information (overheat/UID) |
| Power Fail |
| Buttons | UID |
| Power On/Off |
| Expansion Slots |
| PCI-Express (PCIe) Configuration |
| Drive Bays / Storage |
| Drive Bays Configuration | Default: Total 8 bays 8 front hot-swap E1.S NVMe drive bays |
| 8 front hot-swap E1.S NVMe drive bays |
| M.2 | View M.2 Options |
| 2 M.2 NVMe slots (M-key; RAID support via S3808N controller) |
| System Cooling |
| Fans | Up to 6 Fan 80mm Fan(s) |

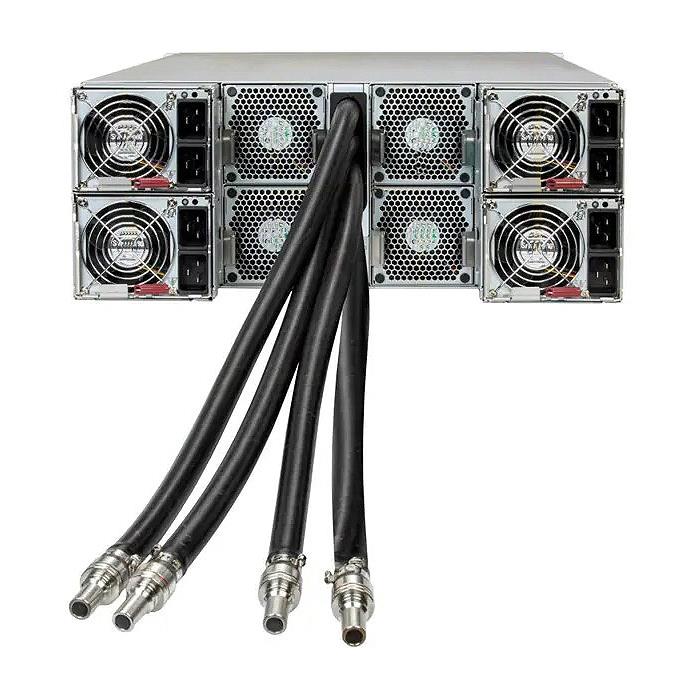

| Liquid Cooling | Direct to Chip (D2C) Cold Plate |
| Operating Environment |
| Environmental Spec. | Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
