| Main Specifications |
| Device Type | IoT Server |

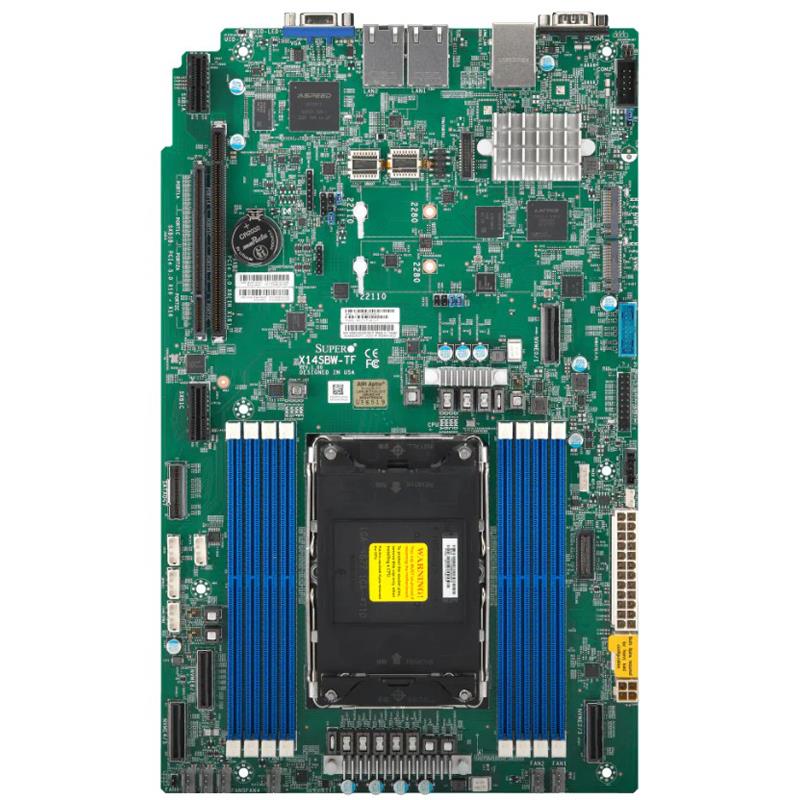

| Built-in Devices | Super X14SBW-TF |
| Form Factor | 1U Rackmount - CSE-112TS-R000WNDP |
| Dimensions (WxDxH) | Height 1.7" (43 mm) x Width 17.2" (437 mm) x Depth 22" (559 mm) |
| Weight | Gross Weight: 29 lbs (13.15 kg) - Net Weight: 17.6 lbs (8 kg) |
| Enclosure Color | Black |
| Processor |
| Compatible Processors | Intel Xeon 6700/6500 series processors with P-cores or 6700 series processors with E-cores |
| Compatible Socket | Single Socket E2 (LGA-4710), Supports up to 300W TDP CPUs (Air Cooled) |
| Cache/Core | P-cores: Up to 86C/172T, Up to 336MB Cache |
| E-cores: Up to 144C/144T, Up to 108MB Cache |
| GPU |
| Max GPU Count | Up to 2 single-width GPUs |
| System Memory |
| Memory Capacity | Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM |
| Max Memory (1DPC): Up to 512GB 8000MT/s ECC DDR5 MRDIMM (P-core only) |
| Slot Count: 8 DIMM Slots/8 Channels |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Network Connectivity | 2 RJ45 10GbE with Intel X550 |
| TPM | 1 TPM Header |

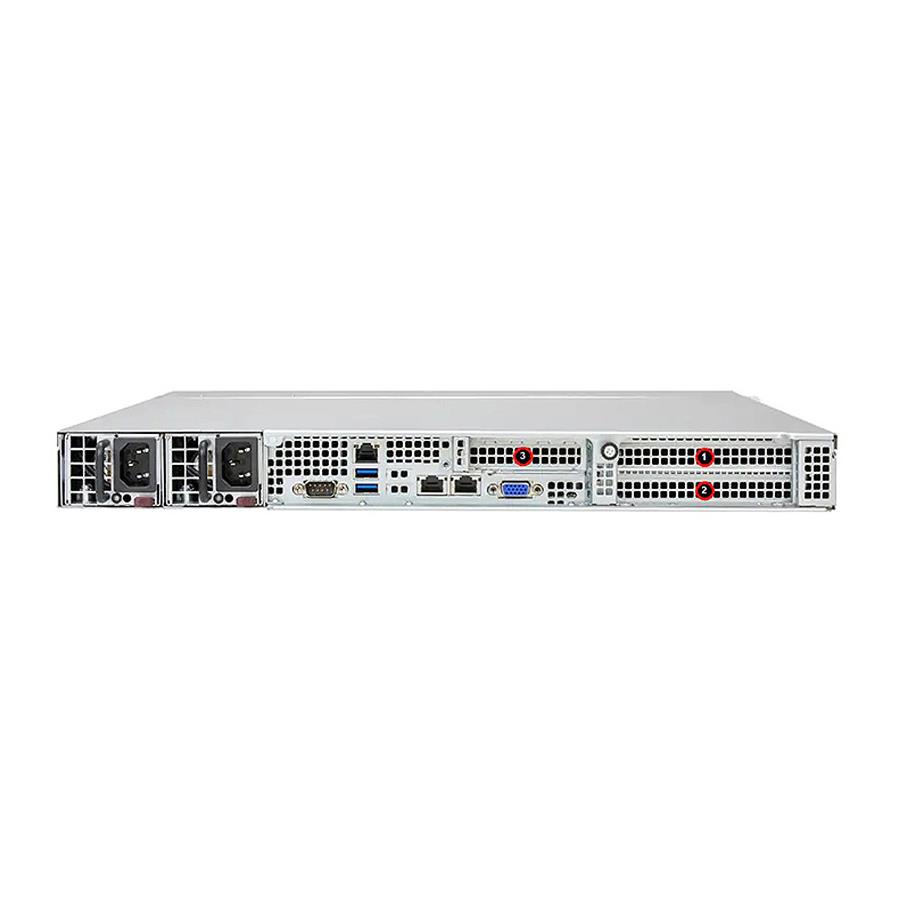

| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated BMC LAN port(s) |
| 2 RJ45 10 GbE LAN ports |
| USB(s) | 2 USB 3.2 Gen1 Type-A ports (rear), 2 USB 3.2 Gen1 Type-A ports (front) |
| Video Output | 1 VGA port |
| Serial Port / Headers | 1 COM port (rear) |
| System BIOS |
| BIOS Type | AMI 64MB SPI Flash EEPROM |
| Management |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Miscellaneous |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, System Lockdown |
| PC Health Monitoring |
| CPU | Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages. |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | Default: 2 PCIe 5.0 x16 FHFL slots, 1 PCIe 5.0 x16 LP slot |
| M.2 | 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110) |
| Drive Bays / Storage |

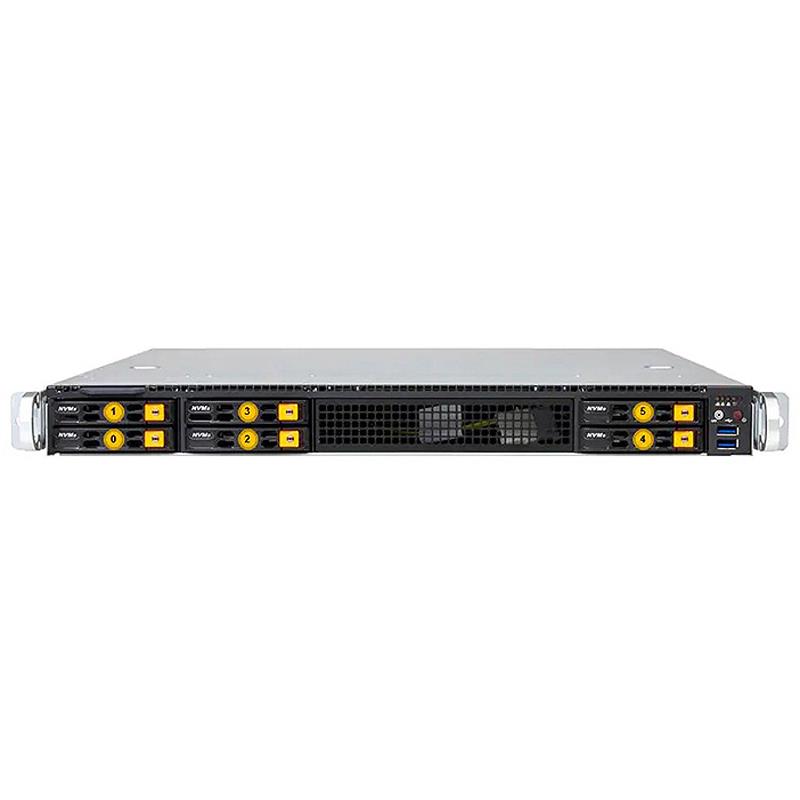

| Drive Bays Configuration | 6 front hot-swap 2.5" NVMe drive bays |
| System Cooling |
| Fans/Air Shroud | 1 Air Shroud |
| Up to 5x 4cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | Optional Configuration |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 0°C to 35°C (32°F to 95°F) |
