| Main Specifications |
| Device Type | Hyper SuperServer |

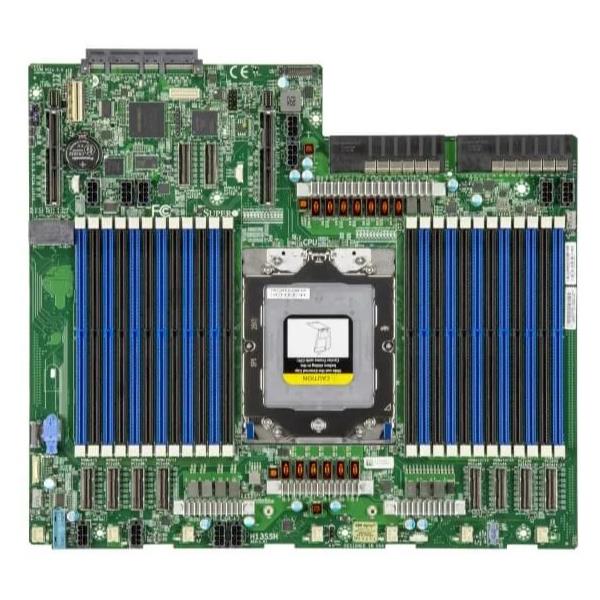

| Built-in Devices | Super H13SSH |

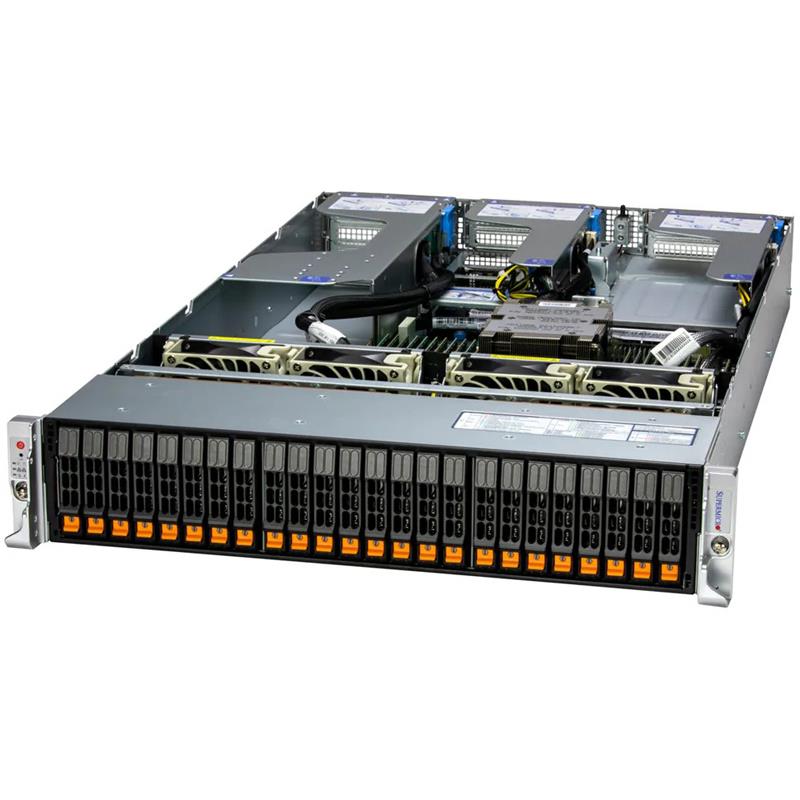

| Form Factor | 2U - CSE-HS219-R1K63P-A |
| Dimensions (WxDxH) | Height 3.5" (88.9 mm) x Width 17.2" (437 mm) x Depth 29.9" (760 mm) |
| Weight | Gross Weight: 72 lbs (32.7 kg) - Net Weight: 39 lbs (17.7 kg) |
| Enclosure Color | Black Front & Silver Body |
| Operating System | Genoa: ESXi 7.0 U3, ESXi 8.0, Oracle Linux 9.0, RHEL 9.0, Windows Server 2022, Windows Server 2025 |
| Turin: Windows Server 2022, Windows Server 2025 |
| Processor |
| Processor Installed | 1x AMD EPYC 9655P (96C/2.6GHz) |
| System Memory |
| Memory Installed | 768GB DDR5-6400 |
| Drive Bays |
| Hard Drive Installed | 2x 7.68TB NVMe SSD |
| On-Board Devices |
| Network Connectivity | 1x Dual 25GbE SFP28 |
| Input / Output |
| USB(s) | 2 USB 3.0 ports(rear) |
| Video Output | 1 VGA port |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash EEPROM |
| BIOS Features | ACPI 6.4, Plug and Play (PnP), SMBIOS 3.5 or later, UEFI 2.8, USB Keyboard support |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), OOB Management Package (SFT-OOB-LIC), SuperServer Automation Assistant (SAA) New |
| Management |
| Power Configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0, Silicon Root of Trust (RoT) – NIST 800-193 Compliant |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, Automatic Firmware Recovery, Supply Chain Security: Remote Attestation, Runtime BMC Protections, System Lockdown |
| PC Health Monitoring |
| FAN | Fans with tachometer monitoring, Pulse Width Modulated (PWM) fan connectors, Status monitor for speed control |
| Temperature | Monitoring for CPU and chassis environment, Thermal Control for fan connectors |
| Voltage | System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Front Panel |
| Buttons | Power On/Off, UID button |
| LEDs | HDD activity, LAN1 activity, Power status, System information |
| Expansion / Connectivity |

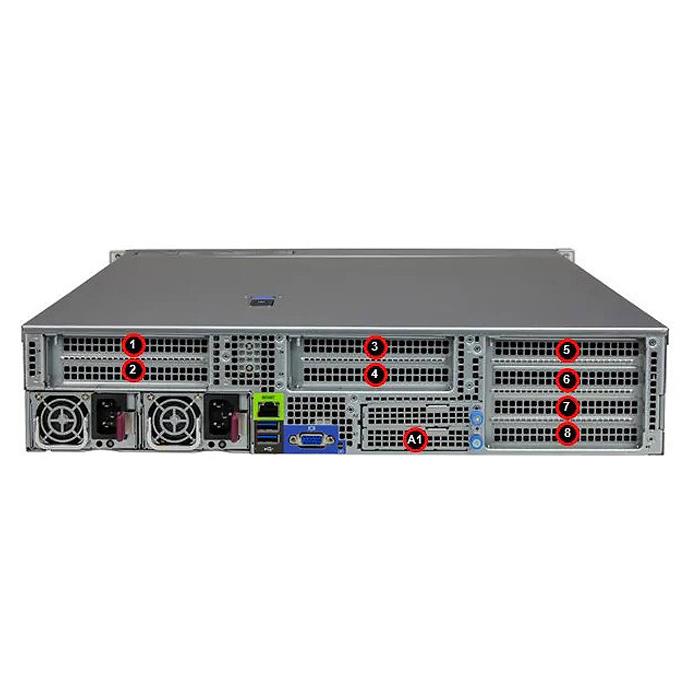

| Expansion Slots Total (Free) | Default: 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option B: 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option E: 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option A: 1 PCIe 5.0 x16 FHFL double-width slot, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option C: 2 PCIe 5.0 x16 FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option D: 1 PCIe 5.0 x16 FHFL double-width slot, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option F: 4 PCIe 5.0 x16 FHFL double-width slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option G: 3 PCIe 5.0 x16 FHFL double-width slots, 2 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option H: 2 PCIe 5.0 x16 FHFL double-width slots, 4 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) |
| Option I: 1 PCIe 5.0 x16 FHFL double-width slot, 6 PCIe 5.0 x8 (in x16) FHFL slots, 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible) (Requires additional parts, please see the optional parts list for details) |
| M.2 | 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 22110(default)/2280) |
| 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 22110(default)/2280) |
| Drive Bays / Storage |

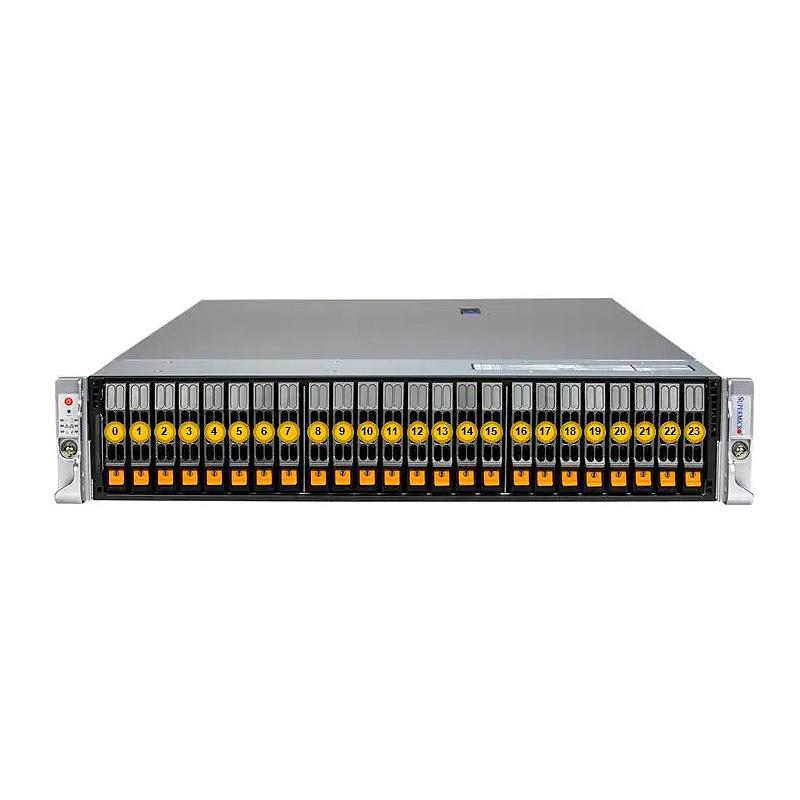

| Drive Bays Configuration | Default: 24 front hot-swap 2.5" NVMe/SAS/SATA drive bays (NVMe/SAS/SATA support may require additional storage controller and/or cables) |
| System Cooling |

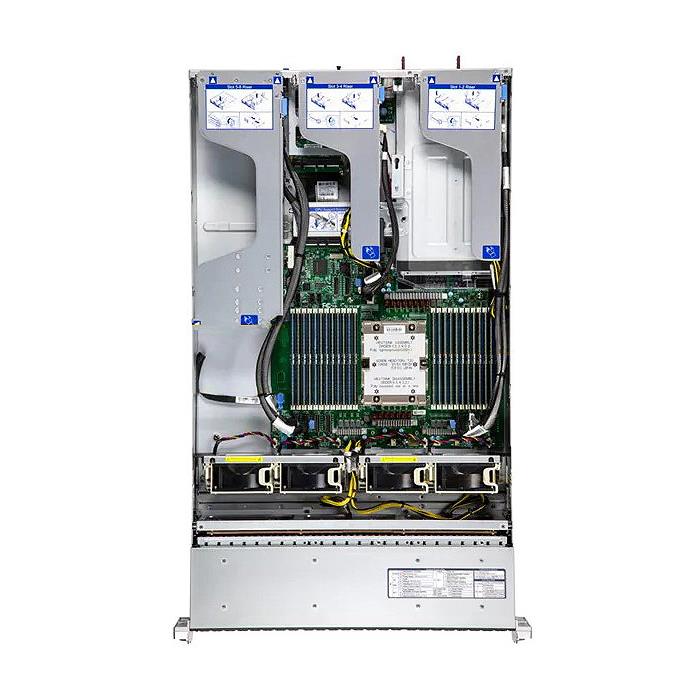

| Fans/Air Shroud | 1 Air Shroud |
| Up to 4x 8cm heavy duty fans with optimal fan speed control |
| Power Supply |
| Power Supply | 2x 1600W Redundant (1 + 1) Titanium Level (96%) power supplies |
| Environmental |
| Operating Environment | Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) |
| Operating Relative Humidity: 8% to 90% (non-condensing) |
| Non-operating Relative Humidity: 5% to 95% (non-condensing) |
| Operating Temperature: 10°C to 35°C (50°F to 95°F) |
