| Main Specifications |

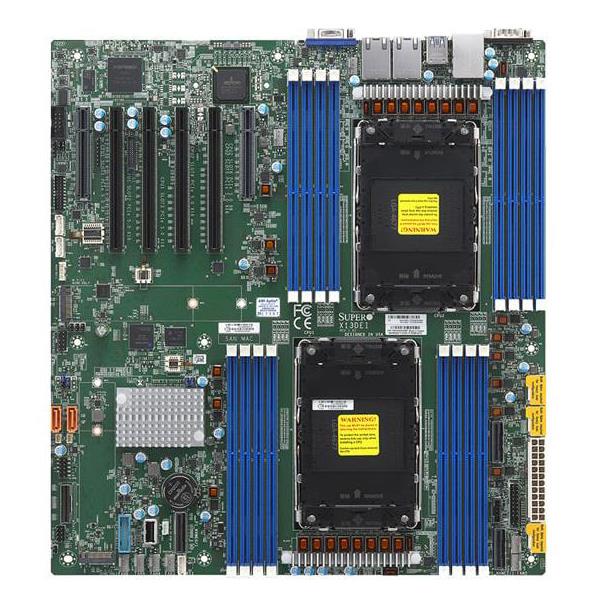

| Device Type | Motherboard |
| Form Factor | E-ATX |
| Dimensions (WxDxH) | 12.1" x 13.05" (30.74cm x 33.15cm) |
| Processor |
| Compatible Processors | 5th Gen Intel Xeon / 4th Gen Intel Xeon Scalable processors |
| Compatible Socket | Dual Socket E (LGA-4677) |
| Core Count | Up to 64 Cores |
| Note | Supports up to 350W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 16 DIMM slots |
| Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| SATA/SAS | 8 SATA (6Gbps) via Intel C741, RAID 0/1/5/10 support, via SlimSAS |
| 2 SATA (6Gbps) via Intel C741, RAID 0/1 support, Internal Port(s) |
| IPMI | ASPEED AST2600 BMC |
| Network Controllers | Dual LAN with Broadcom BCM5720 1GBase-T |
| TPM | 1 TPM Header |
| Others | 3 MCIO port(s) |
| Input / Output |
| LAN | 1 RJ45 1 GbE Dedicated IPMI LAN port(s) |
| USB(s) | 2 USB 2 port(s) (Header), 2 USB 3 port(s) (Header), 4 USB 3 port(s) (Rear), 1 USB 2 Type-A port(s) |
| Video Output | 1 VGA D-Sub Connector port(s) |
| Serial Port / Headers | 1 COM port(s) (header), 1 COM port(s) (rear) |
| DOM | 2 SATA DOM (Disk on Module) port(s) with power connector support |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x8 slots, 4 PCIe 5.0 x16 slots |
| M.2 | 2 M.2 PCIe 4.0 x2 slots (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI 32MB UEFI |
| BIOS Features | Plug and Play (PnP), PCI FW 3.2, ACPI 6.4, UEFI 2.8A, SMBIOS 2.8/3.5 |
| Management |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software, IPMI Utilities |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +12V,+3.3V,+3.3V standby,+5V,+5V standby,CPU temperature,CPU thermal trip support,Memory temperature,PCH temperature,Peripheral temperature,Platform Environment Control Interface (PECI)/(TSI),System temperature,Veore,Vmem |
| LED | CPU/system overheat LED, UID/remote UID LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment, PECI, Thermal monitor 2 (TM2) support |
| FAN | 8x 4-pin fan headers (up to 8 fans), 8 fans with tachometer monitoring, Fan speed control, Overheat LED indication |
| Other Features | ACPI power management, Chassis intrusion detection, Control of power-on for recovery from AC power loss, M.2 NGFF connector, Node manager support, UID |
| Parts List |
| CPU carrier | 2x SKT-1333L-0000-FXC, 2x SKT-1424L-001B-LTS |
| I/O Shield | 1x MCP-260-00042-3N |
| I/O Cables | 2x CBL-0044L |
| Optional Parts List |
| Optional TPM | AOM-TPM-9670V, AOM-TPM-9672V, AOM-TPM-9672V-FIPS |
