| Main Specifications |

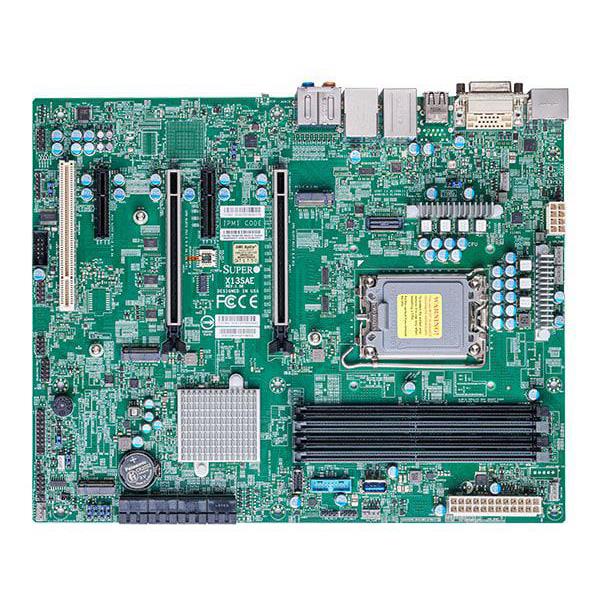

| Device Type | Workstation motherboard |
| Form Factor | ATX |
| Dimensions (WxDxH) | 12" x 9.6" (30.48cm x 24.38cm) |
| Processor |
| Compatible Processors | 14th/13th/12th Gen Intel Core i3/i5/i7/i9 Processors |
| Compatible Socket | Single Socket V0 |
| Core Count | Up to 24C |
| Note | Supports up to 150W TDP CPUs |
| System Memory |
| Memory Capacity | Slot Count: 4 DIMM Slots |
| Max Memory (2DPC): Up to 192GB 4400MT/s non-ECC DDR5 UDIMM |
| DIMM Sizes | UDIMM:8GB, 16GB, 24GB, 32GB, 48GB |
| Memory Voltage | 1.1V |
| On-Board Devices |
| Chipset | Intel W680 |
| SATA/SAS | 8 SATA (6Gbps) via Intel W680, RAID 0/ 1/ 5/ 10 support |
| Network Controllers | Single LAN with Intel PHY I219LM LAN controller |
| Single LAN with Intel Ethernet i225V |
| Audio | ALC 888S HD Audio |
| TPM | 1 TPM 2.0 header |
| Input / Output |
| LAN | 1 RJ45 1 GbE LAN port, 1 RJ45 2.5 GbE LAN port |
| USB(s) | 1 USB 3.2 Gen2x2 Type-C port(s) (Rear) 3 USB 3.2 Gen2x1 Type-A port(s) (Rear) 2 USB 3.2 Gen1x1 port(s) (Header) 1 USB 3.2 Gen1x1 Type-A port(s) 1 USB 3.2 Gen2x2 port(s) (Header) 2 USB 2.0 port(s) (rear) 2 USB 2.0 port(s) (header) |
| Video Output | 1 Display Port port(s), 1 HDMI® 2.0b port(s), 1 DVI - D port(s) |
| Serial Port / Headers | 1 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 2 PCIe 5.0 x16 slots, 2 PCIe 3.0 x4 slots |
| M.2 | 3 M.2 PCIe 4.0 x4 slots (M-key 2280) |
| System BIOS |
| BIOS Type | AMI 32MB SPI Flash |
| BIOS Features | ACPI 6.0, Plug and Play (PnP), SMBIOS 3.0 or later, BIOS rescue hot keys, Riser card auto-detection support |
| Software |
| Software | Supermicro SuperDoctor 5 (SD5), SuperO Booster |
| Management |
| Power Configurations | Power-on mode for AC power recovery, ACPI Power Management, Power button override mechanism, Wake-on-LAN |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.8V PCH,+12V,+3.3V,+5V,+5V standby,1.05 (PCH),3.3V standby,CPU temperature,CPU thermal trip support,System temperature,VBAT |
| LED | Catastrophic error LED, Power LED |
| FAN | 5x 4-pin fan headers (up to 5 fans), Fan speed control, Overheat LED indication |
| Other Features | 8-pin 12v DC power connector, ACPI power management, ATX power connector, Chassis intrusion detection, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection |
| Parts List |
| I/O Shield | 1x MCP-260-00151-0N |
| I/O Cables | 2x CBL-0044L |
| Optional Parts List |
| Optional TPM | AOM-TPM-9670V |
