| Main Specifications |

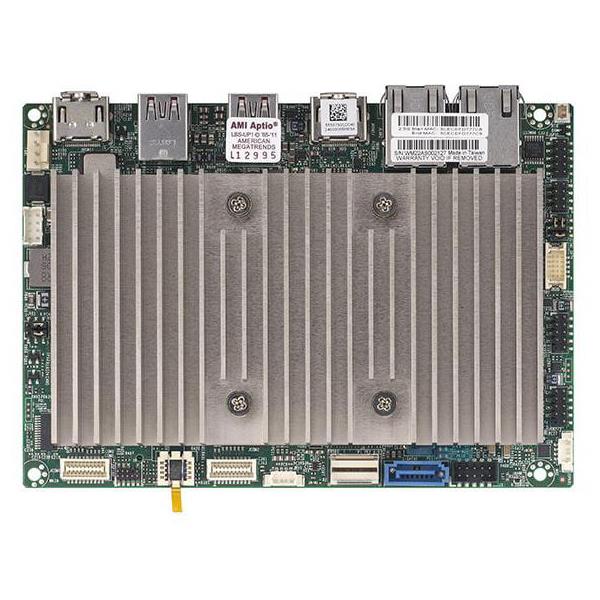

| Device Type | Embedded Motherboard |
| Form Factor | 3.5" SBC |
| Dimensions (WxDxH) | 5.7" x 4" (14.6cm x 10.16cm) |
| Processor |
| Embedded Processor | Intel Celeron 7305E Processor |
| System Memory |
| Memory Capacity | Slot Count: 2 DIMM Slots |
| DIMM Sizes | SO-DIMM:8GB, 16GB, 32GB |
| On-Board Devices |
| SATA/SAS | 1 SATA (6Gbps) via Intel 600 Series |
| Graphics | 1 Intel UHD Graphics for 12th Gen Intel Processors port(s) |
| Network Controllers | Dual LAN with Intel Ethernet Controller I225-IT, 2.5G, TSN, industrial grade |
| Audio | ALC 888S HD Audio |
| TPM | 1 TPM Chip |
| Others | 1 8-bit GPIO header port(s), 1 SMBus header port(s), 1 System Fan port(s) |
| Input / Output |
| USB(s) | 2 USB 3.2 Gen2 Type-C port(s) (Rear), 2 Type-A port(s) (Rear), 4 port(s) (Header) |
| Video Output | 1 HDMI 2.0b port(s), 1 HDMI port(s), 2 Display Port port(s) |
| Serial Port / Headers | 4 COM port(s) (header) |
| Expansion / Connectivity |
| Expansion Slots Total (Free) | 1 PCIe 4.0 x4 Slot |
| M.2 | 1 M.2 SATA slot (B-key 2242/2280; USB 3.0) |
| 1 M.2 PCIe 3.0 x1 CNVi slot (E-key 2230; USB 2.0) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | PCI FW 3.0, ACPI 6.4, SMBIOS 3.5 or later, UEFI 2.8, RTC (Real Time Clock) Wakeup |
| Software |
| Software | Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New |
| Management |
| System Management Software | Watchdog, SuperDoctor 5 |
| Power Configurations | ACPI Power Management, Wake-On-LAN, Force Power On by Jumper, Control of power-on for recovery from AC power loss, +12-24V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| PC Health Monitoring |
| Voltage | +1.05V,+1.8V PCH,+12V,+3.3V,+3.3V standby,+5V,VBAT,Vcore,Vmem |
| LED | HDD activity LED, LAN activity LED, Power LED |
| Temperature | CPU temperature, CPU thermal trip support, PCH temperature, peripheral temperature, System temperature |
| FAN | 4x 4-pin fan headers (up to 4 fans) |
| Miscellaneous |
| Environmental Compliance | RoHS Compliant |
| Parts List |
| I/O Cables | 1x CBL-PWEX-1029 |
| Heat Sink | 1x SNK-C0157PL |
| Optional Parts List |
| Optional Cable | CBL-PWEX-1110-15 |
| CBL-CUSB-0826 |
| CBL-SAST-1240A-85 |
| Optional Heatspreader | 1x MCP-350-00008-0N |
| Optional Power Adapter | MCP-250-10137-0N |
