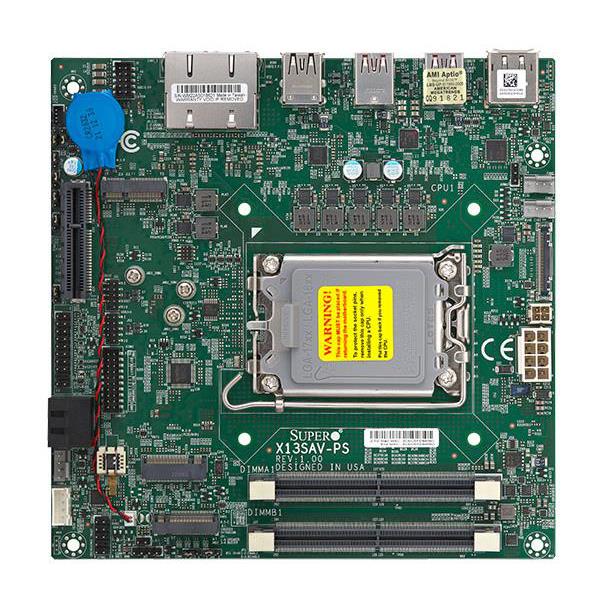

Supermicro X13SAV-PS-B Motherboard Mini-ITX Intel Core i7/Core i5/Core i3 12th Generation and Celeron Processor - Bulk

Up to 64GB DDR5-4800MHz SODIMM in 2 DIMM slots
Includes 1 PCIe 4.0 x4, M.2 Form Factor: 2230, 3052, 2280
On-Board: System on Chip Controller for 2 SATA3 (6 Gbps) Ports
Supports Intel Core i7/Core i5/Core i3 12th Generation/Celeron Processor

Motherboard Mini-ITX, Supports Single Socket LGA-1700, Supporting Intel Core i7/Core i5/Core i3 12th Generation/Celeron Processor (Up to 14-Core). Up to 64GB DDR5-4800MHz SODIMM in 2 DIMM slots - On-Board: System on Chip Controller for 2 SATA3 (6 Gbps) Ports, LAN ports: Dual 2.5 Gigabit LAN, Others: 4 Independent Displays thru DP/HDMI/eDP/TYPE C, Onboard TPM2.0, Includes 1 PCIe 4.0 x4, M.2 Form Factor: 2230, 3052, 2280, Key: Key: E-Key, B-Key, M-Key - (MBD-X13SAV-PS-B)

1. 13th/12th Gen Intel Core processors , Intel® Celeron® processors, SoC, Single Socket LGA-1700 supported, CPU TDP supports Up to 65W TDP
2. Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
3. 1 PCIe 4.0 x4 slot 1 M.2 M-Key 2280 (PCIe 4.0 x4) 1 M.2 E-Key 2230 (PCIe 3.0 x1/USB2.0) 1 M.2 B-Key 3052 (PCIe 3.0 x2/USB3.0/USB2.0)
4. Dual 2.5 Gigabit LAN with Intel® Ethernet i225LM LAN controller [AMT/vPro]
5. 4 Independent Displays (1 DP ports, 1 HDMI port, 2 TYPE C support DP/USB3.0)
6. Supports 12V DC power input
7. Onboard TPM2.0

Optimized Servers

SYS-E302-13AD

Extra Specifications for Supermicro X13SAV-PS-B Motherboard Mini-ITX Intel Core i7/Core i5/Core i3 12th Generation and Celeron Processor - Bulk

Main Specifications
Device Type	Motherboard
Form Factor	Mini-ITX
Dimensions (WxDxH)	6.7" x 6.7" (17.02cm x 17.02cm)
Processor
Compatible Processors	13th/12th Generation Intel RPL-PS/ADL-PS CPU model i7-xxxxxUL(or HL), i5-xxxxxUL(or HL), i3-xxxxxUL(or HL), Celeron xxxxL Processor
Compatible Socket	Single Socket V0
Core Count	Up to 14C
System Memory
Memory Capacity	Up to 64GB Unbuffered non-ECC SODIMM, DDR5-4800MHz, in 2 SODIMM slots
Memory Voltage	1.1V
On-Board Devices
Chipset	System on Chip
SATA/SAS	2 SATA (6Gbps) via System on Chip
Network Controllers	Dual LAN with Intel Ethernet i225LM
Input / Output
USB(s)	2 USB 3.2 Gen2 Type-C port(s) (Rear), 4 Type-A port(s) (Rear), 4 port(s) (Header)
Video Output	1 HDMI port(s), 1 Display Port Video port(s)
Serial Port / Headers	2 COM port(s) (header)
Expansion / Connectivity
Expansion Slots Total (Free)	1 PCIe 4.0 x4 Slot
System BIOS
BIOS Type	AMI UEFI
BIOS Features	ACPI 6.1;SMBIOS 3.0 or later;PCI FW 3.0;UEFI 2.7;RTC (Real Time Clock) Wakeup
Management
Software	Supermicro Server Manager (SSM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), SuperServer Automation Assistant (SAA) New
System Management Software	Wake-on-LAN, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management, ATX Power connector, CPU thermal trip support for processor protection, +12V DC Power Input
Security
Hardware	Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage	+12V,+3.3V,+5V,3 -fan status,Chipset voltage,CPU temperature,Monitors CPU Core Voltages,PCH temperature,System temperature,VBAT
FAN	3x 4-pin fan headers (up to 3 fans), PWM fan speed control, Thermal control for 3 fan connectors
Other Features	12V DC or ATX Power Source, 8-pin 12v DC power connector, ACPI power management, ATX power connector, WOL
Parts List
I/O Cables	2x CBL-0044L, 1x CBL-PWEX-1066
I/O Shield	1x MCP-260-00184-0N

Warranty:	3 years labor, 1 year parts, 120 days advance replacement (doa)
Coverage:	Replacement or repair
Average Service Time:	Overnight replacement for 120 days, 2 weeks afterward
E-mail:	returnservices@wiredzone.com

If you need Technical Support for this item please contact:
Provider:	Supermicro
Type of Support:	FULL
Phone No.:	408-503-8000
URL:	Click here for Manufacturer Website
