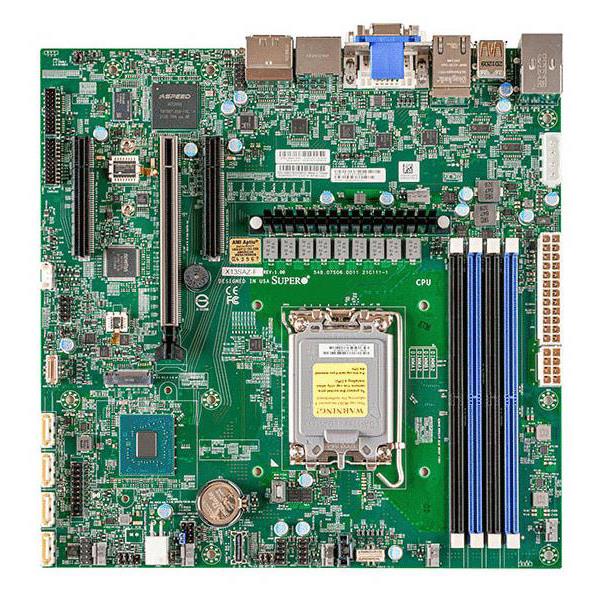

| Main Specifications |
| Device Type | Motherboard |
| Form Factor | Micro-ATX |
| Dimensions (WxDxH) | 9.6" x 9.6" (24.38cm x 24.38cm) |
| Processor |
| Compatible Processors | Intel Core 3/5/7 (Series 2) and 14th/13th/12th Gen Core i3/i5/i7/i9 Processors |
| Compatible Socket | Single L0 (LGA-1700) |
| Core Count | Up to 24C |
| System Memory |
| Memory Capacity | Slot Count: 4 DIMM Slots |
| Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM |
| Memory Voltage | 1.1V |
| Error Detection | Corrects single-bit errors, Detects double-bit errors (using ECC memory) |
| On-Board Devices |
| Chipset | Intel R680E |
| SATA/SAS | 4 SATA (6Gbps) via Intel R680E; RAID 0/1/5/10 support |
| Network Controllers | Dual LAN with Intel Ethernet i225LM |
| Audio | Rear Audio, ALC 888S HD Audio |
| TPM | 1 TPM 2.0 onboard |
| Input / Output |
| USB(s) | 4 USB 2.0 port(s) (header), 4 USB 3.2 Gen2 Type-A port(s) (Rear), 2 USB 3.2 Gen2 port(s) (Header), 2 USB 3.2 Gen1 port(s) (Header) |
| Video Output | 1 VGA port(s), 1 HDMI 2.0b port(s), 1 DVI - D port(s), 2 Display Port port(s) |
| Serial Port / Headers | 2 COM port(s) (header) |
| Expansion / Connectivity |
| M.2 | 1 M.2 PCIe 4.0 x4 slot (M-key 2280/22110) |
| System BIOS |
| BIOS Type | AMI UEFI |
| BIOS Features | SMBIOS 3.0 or later, UEFI 2.7, PCI FW 3.0, ACPI 6.1, RTC (Real Time Clock) Wakeup |
| Software |
| Software | SuperCloud Composer (SCC), Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor 5 (SD5), Super Diagnostics Offline (SDO), Supermicro Thin-Agent Service (TAS), SuperServer Automation Assistant (SAA) New, Plug-ins for 3rd Party Software, IPMI Utilities |
| Management |
| System Management Software | Wake-on-LAN, Watchdog, KVM with dedicated LAN |
| Power Configurations | ACPI Power Management, ATX Power connector, +12V DC Power Input |
| Security |
| Hardware | Trusted Platform Module (TPM) 2.0 |
| Features | Cryptographically Signed Firmware, Secure Boot, Secure Firmware Updates, System Lockdown, Supports pluggable modules, header-only on motherboard |
| PC Health Monitoring |
| Voltage | +1.35V,+1.5V,+1.8V,+12V,+3.3V,+5V,+5V standby,1.05 (PCH),6 fans with tachometer status monitoring,BMC/IPMI Heartbeat LED,Chipset voltage,CPU temperature,Dual cooling zones,Memory temperature,UID,VBAT |
| LED | Power LED |
| Temperature | CPU thermal trip support, Monitoring for CPU and chassis environment |
| FAN | 6x 4-pin fan headers (up to 6 fans) |
| Other Features | 12V DC or ATX Power Source, ACPI power management, ATX power connector, Chassis intrusion detection, M.2 NGFF connector, RoHS |
| Parts List |
| I/O Cables | 2x CBL-0044L |
| I/O Shield | 1x MCP-260-00177-0N |
